BAM00RR

BOS 18-UK-10

Optics: Diaphragms, filters, lenses, deflectors

Principle of operation
Beam deflector BFO
Version
90° lens, 1 mirror in housing
Use
for photoelectric sensors BOS 18K
for photoelectric sensors BOS 18M

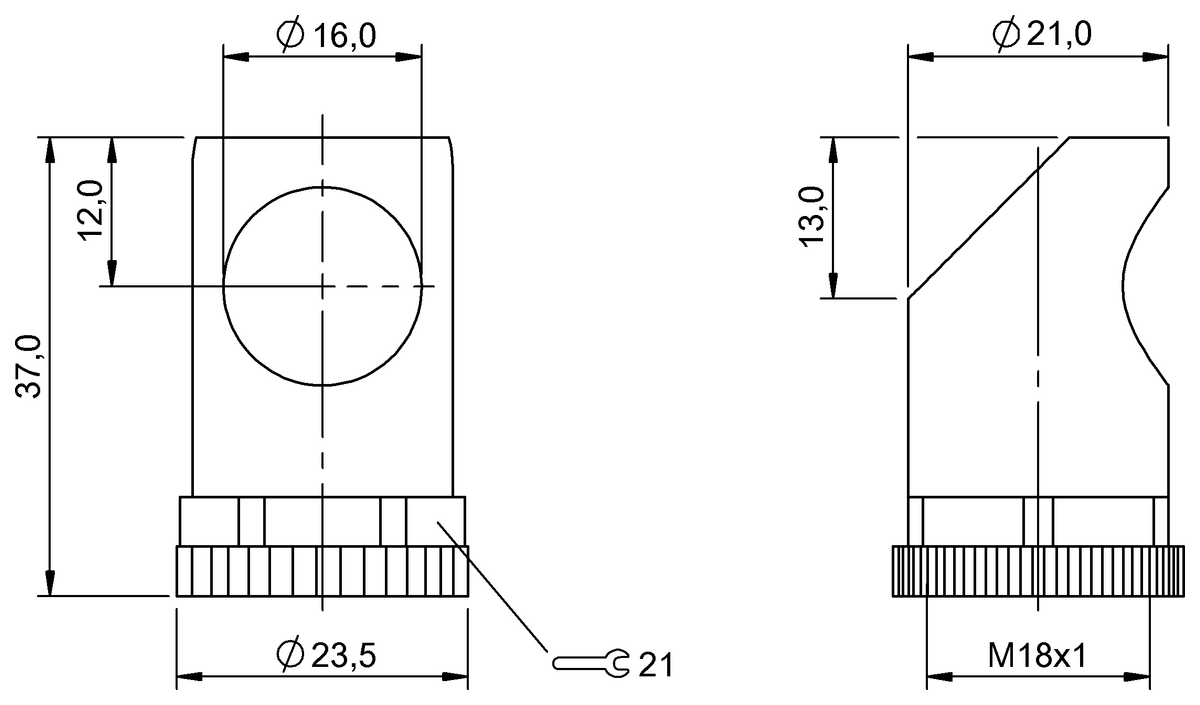

Dimension
Ø 23.5 x 23.5 mm
Material
ABS
Do you have any questions about the product?

Quantity scale

Contact request
Key features
Principle of operation
Beam deflector BFO
Version
90° lens, 1 mirror in housing
Use
for photoelectric sensors BOS 18K
for photoelectric sensors BOS 18M
Dimension
Ø 23.5 x 23.5 mm
Material
ABS
Material sensing surface
Glass, coated Al
Sensing surface
Mirror surface
Mounting part
Thread M18x1
Classifications
ECLASS 10.1
27-27-36-05
ECLASS 11.0
27-27-36-05
ECLASS 12.0
27-27-36-05
ECLASS 13.0
27-27-36-05
ECLASS 14.0
27-27-36-05
ECLASS 4.1
27-27-90-03
ECLASS 5.1.4
27-27-92-07
ECLASS 6.2
27-27-92-07
ECLASS 8.1
27-27-92-07
ECLASS 9.0
27-27-36-05
ECLASS 9.1
27-27-36-05
ETIM 4.0
EC002467
ETIM 5.0
EC002467
ETIM 6.0
EC002467
ETIM 7.0
EC002467
ETIM 8.0
EC002467
UNSPSC 11
23151700
UNSPSC 7.0901
23151700
