Double-ended cordsets
Alternative products
Discontinued
|
Alternative
|
Further alternative
|
|
|
![]() |
![]() |
|

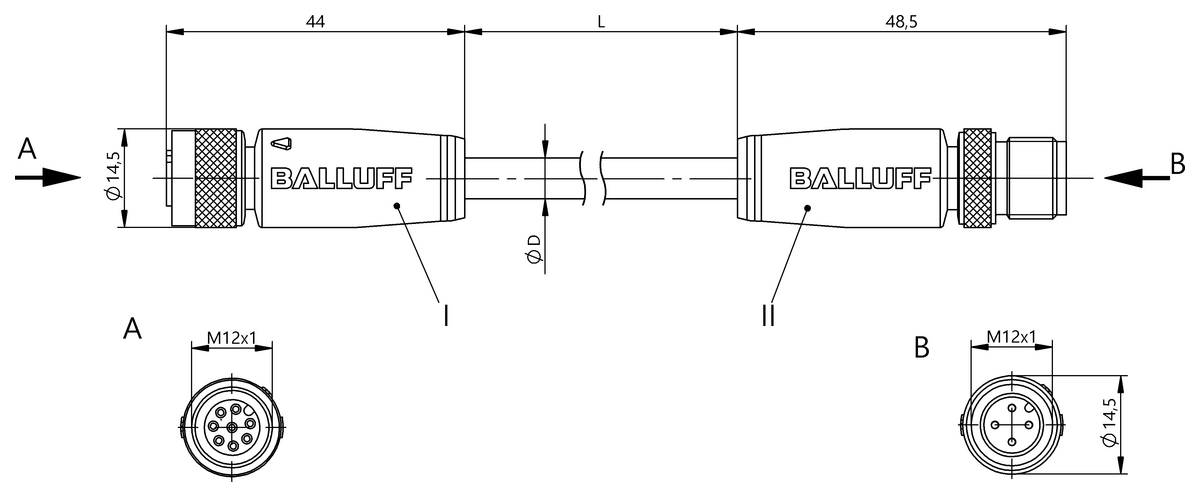

BCC0HK3BCC M418-M414-3A-637-PS0334-050- |
BCC0HC8BCC M415-M413-3A-301-PS0334-050- |
BCC0JU8BCC M415-M413-3A-301-PS0334-030- |
|
Connection 1 | M12x1-Female, straight, 8-pin, A-coded | M12x1-Female, straight, 5-pin, A-coded | M12x1-Female, straight, 5-pin, A-coded |
---|---|---|---|
Connection 2 | M12x1-Male, straight, 4-pin, A-coded | M12x1-Male, straight, 3-pin, A-coded | M12x1-Male, straight, 3-pin, A-coded |
Cable | PUR Shielded black, 5 m, Drag chain compatible | PUR Shielded black, 5 m, drag chain compatible | PUR Shielded black, 3 m, drag chain compatible |
Number of conductors | 3 | 3 | 3 |
Cable temperature, fixed routing | -50...80 °C | -50...80 °C | -50...80 °C |
Cable temperature, flexible routing | -25...80 °C | -25...80 °C | -25...80 °C |
Operating voltage Ub | 60 VDC / 60 VAC | 250 VDC / 250 VAC | 250 VDC / 250 VAC |
Rated current (40 °C) | 2.0 A | 4.0 A | 4.0 A |
IP rating | IP67/IP67 | IP67/IP67 | IP67/IP67 |
Approval/Conformity |
CE cULus EAC WEEE |
CE cULus UKCA WEEE |
CE cULus UKCA WEEE |
