Cylindrical plastic fibers with straight and angled optics
Version
M4, coaxial optics
Use
for fiber optic base units BFB

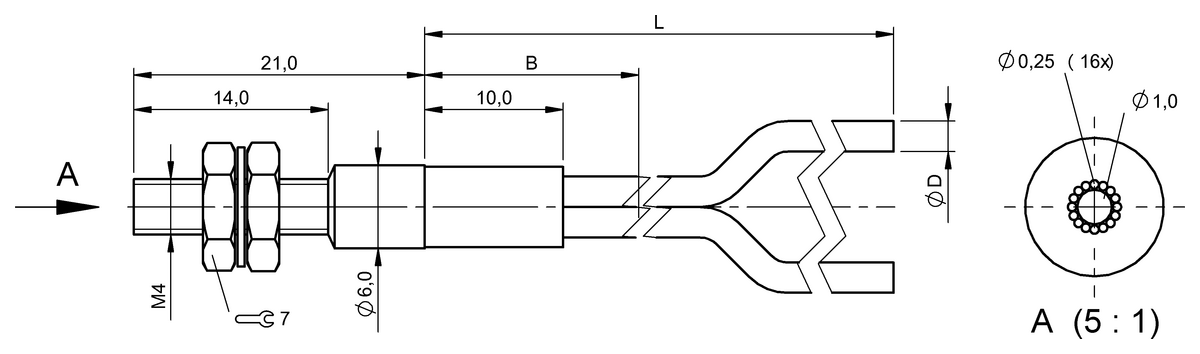

Dimension
Ø 6 x 25 mm
Fiber type material
PMMA
Cable length L
2.00 m
Do you have any questions about the product?
This product page contains information for Sweden – Balluff AB, Göteborg
Alternative products
|
Available
|
Alternative
|
|
|
|
|
|
BFO0006BFO D22-XB-UB-EAK-15-02- |
BFO00C9BFO D22-XB-UB-EAK-15-SA1-02- |
|
| Version | M4, coaxial optics | M4, coaxial optics |
|---|---|---|
| Use | for fiber optic base units BFB | for fiber optic base units BFB |
| Dimension | Ø 6 x 25 mm | - |
| Fiber type material | PMMA | PMMA |
| Cable length L | 2.00 m | - |
| Material jacket | PE | PE |
| Range | 130 mm | 130 mm |
| Ambient temperature | -40...60 °C | -40...60 °C |
| Material | Brass nickel-plated | Brass nickel-plated |
| Active surface, fibers |
Ø 0.25 mm (16x) Ø 1.0 mm |
Ø 0.25 mm (16x) Ø 1.0 mm |
| Active surface, fiber arrangement | Ring around individual fiber | Ring around individual fiber |
| IP rating | IP65 | IP65 |
