For different groove shapes and small installation spaces

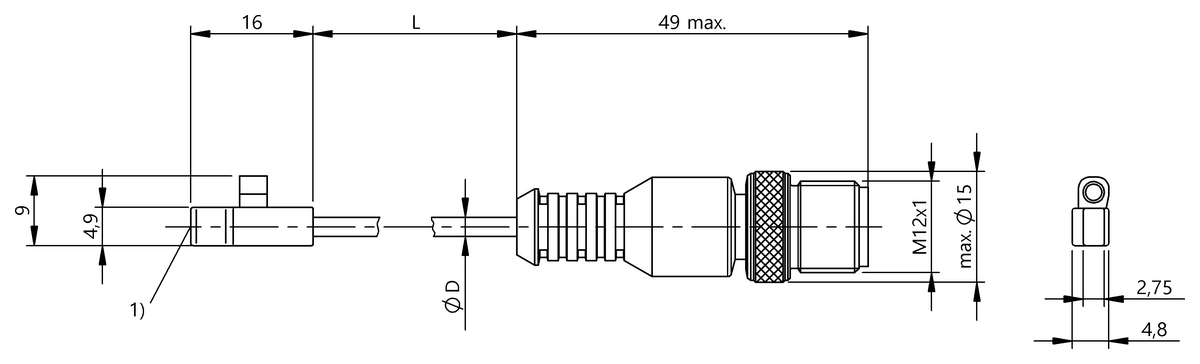

Dimension
9 x 4.8 x 16 mm
Connection
M12x1-Male, 4-pin, A-coded
Cable
PUR, 0.5 m
Application
Optimized response path especially suited for short-stroke cylinders.
Mounting part
Mounting bracket BMF 103-HW*
Do you have any questions about the product?
This product page contains information for Singapore – Balluff Asia Pte. Ltd., Singapore
Alternative products
|
|
Alternative
|
Further alternative
|
|
|
|
|
|
|
BMF001KBMF 103K-PS-C-2A-S4-00,5112,16 SGD |
BMF001MBMF 103K-PS-C-2A-SA2-S49-00,5121,28 SGD |
BMF001PBMF 103K-PS-C-2A-SA7-S49-00,3151,55 SGD |
|
| Dimension | 9 x 4.8 x 16 mm | 9 x 4.8 x 16 mm | 9 x 4.8 x 16 mm |
|---|---|---|---|
| Connection | M12x1-Male, 4-pin, A-coded | M8x1-Male, 3-pin | M8x1-Male, 3-pin |
| Cable | PUR, 0.5 m | PUR, 0.5 m | PUR, 0.3 m |
| Application | Optimized response path especially suited for short-stroke cylinders. | Optimized response path especially suited for short-stroke cylinders. | radially magnetized magnets (Schunk) |
| Mounting part | Mounting bracket BMF 103-HW* | Mounting bracket BMF 103-HW* | Mounting bracket BMF 103-HW* |
| Housing material | PBT | PBT | LCP |
| Switching output | PNP normally open (NO) | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 30000 Hz | 30000 Hz | 7000 Hz |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...85 °C | -25...85 °C | -25...85 °C |
| IP rating | IP67 | IP67 | IP67 |
| Approval/Conformity |
CE UKCA cULus WEEE |
cULus CE UKCA WEEE |
CE UKCA cULus WEEE |
