BCC0575

Name: BCC0575
Brand: Balluff
SKU: BCC0575
Availability: OutOfStock

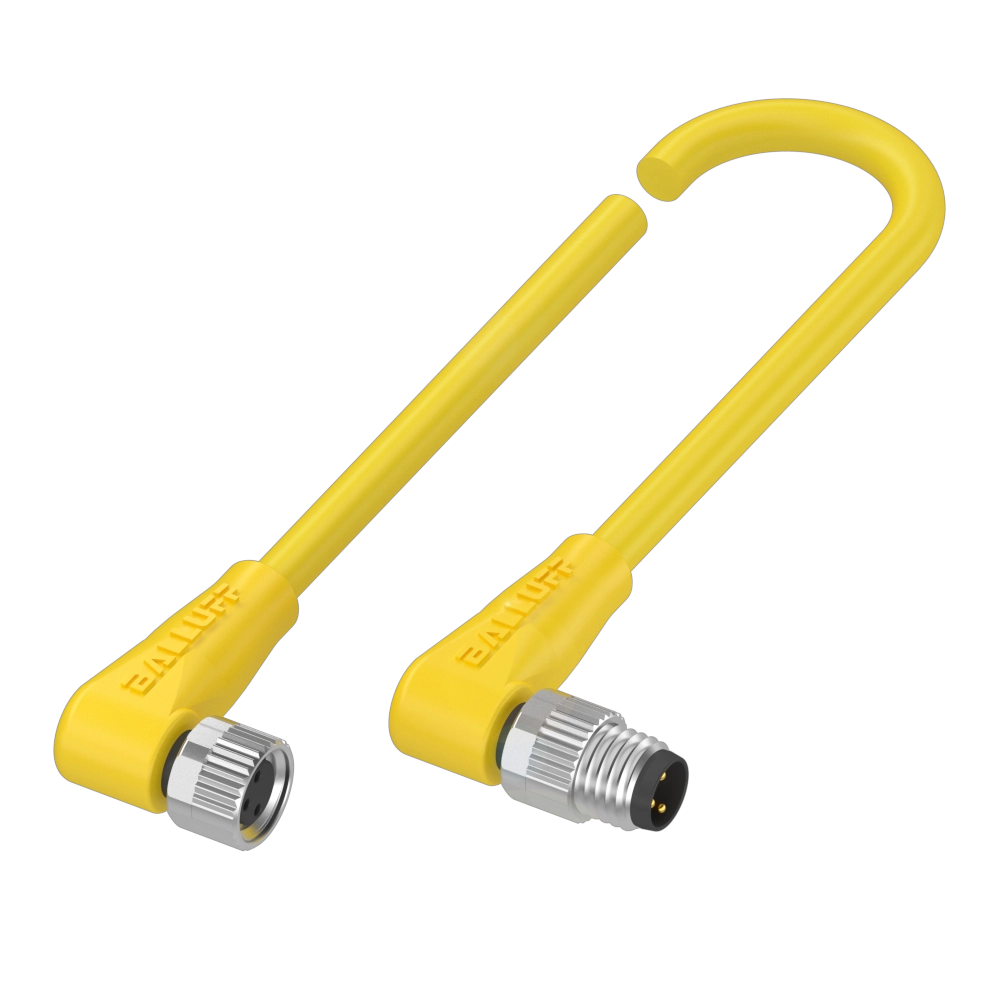

BCC M323-M323-30-300-PX43T2-030

Double-ended cordsets

Connection 1

M8x1-Female, angled, 3-pin, A-coded

Connection 2

M8x1-Male, angled, 3-pin, A-coded

Cable

PUR yellow, 3 m, Drag chain compatible

Number of conductors

Cable temperature, fixed routing

-50...90 °C

Do you have any questions about the product?

	Discontinued	Alternative	Further alternative

	BCC0575 BCC M323-M323-30-300-PX43T2-030 -	BCC057H BCC M323-M323-30-602-PX43T2-030 38.73 USD	BCC056P BCC M323-M313-30-602-PX43T2-030 38.73 USD
Connection 1	M8x1-Female, angled, 3-pin, A-coded	M8x1-Female, angled, 3-pin, A-coded	M8x1-Female, angled, 3-pin, A-coded
Connection 2	M8x1-Male, angled, 3-pin, A-coded	M8x1-Male, angled, 3-pin, A-coded	M8x1-Male, straight, 3-pin, A-coded
Cable	PUR yellow, 3 m, Drag chain compatible	PUR yellow, 3 m, Drag chain compatible	PUR yellow, 3 m, Drag chain compatible
Number of conductors	3	3	3
Cable temperature, fixed routing	-50...90 °C	-50...90 °C	-50...90 °C
Cable temperature, flexible routing	-25...90 °C	-25...90 °C	-25...90 °C
Operating voltage Ub	60 VDC / 60 VAC	30 VDC	30 VDC
Rated current (40 °C)	4.0 A	4.0 A	4.0 A
IP rating	IP67, IP69K/IP67, IP69K	IP67, IP69K/IP67, IP69K	IP67, IP69K/IP67, IP69K
Approval/Conformity	CE cULus WEEE	CE cULus WEEE	CE cULus WEEE
