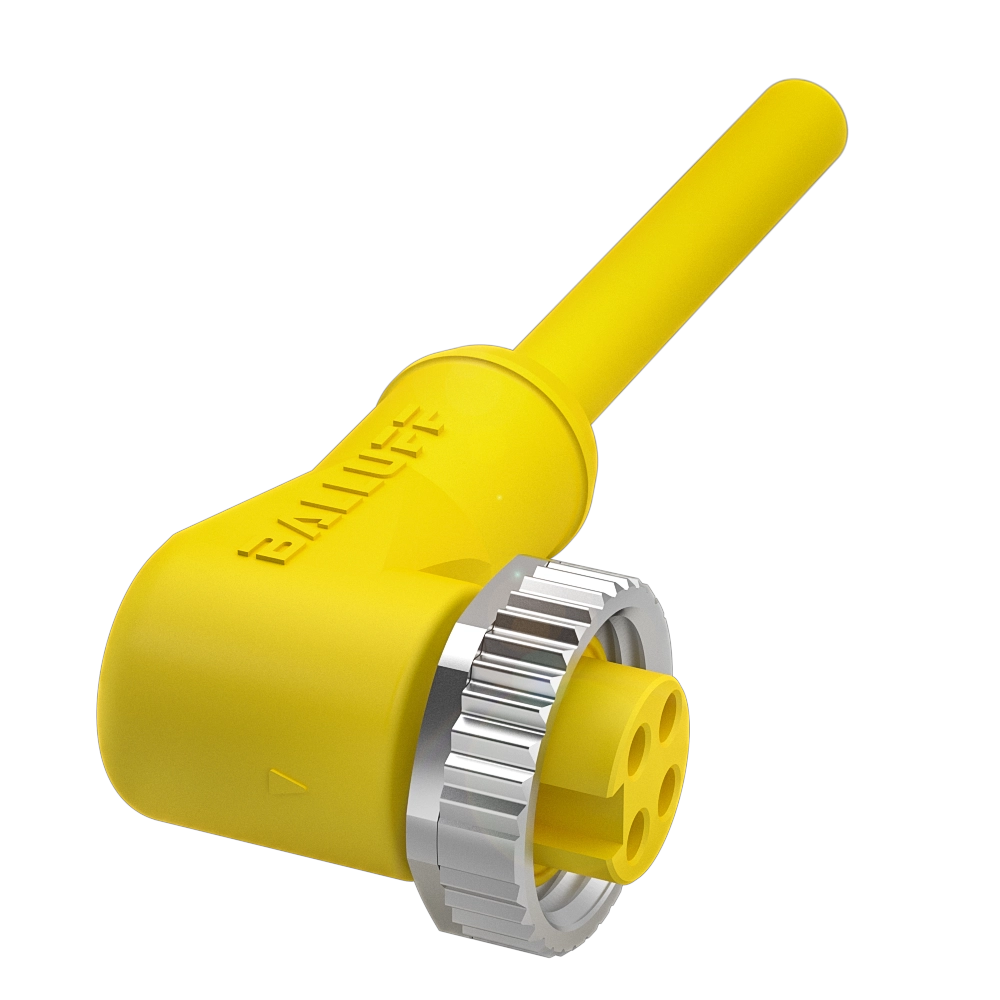

Single-ended cordsets
Connection

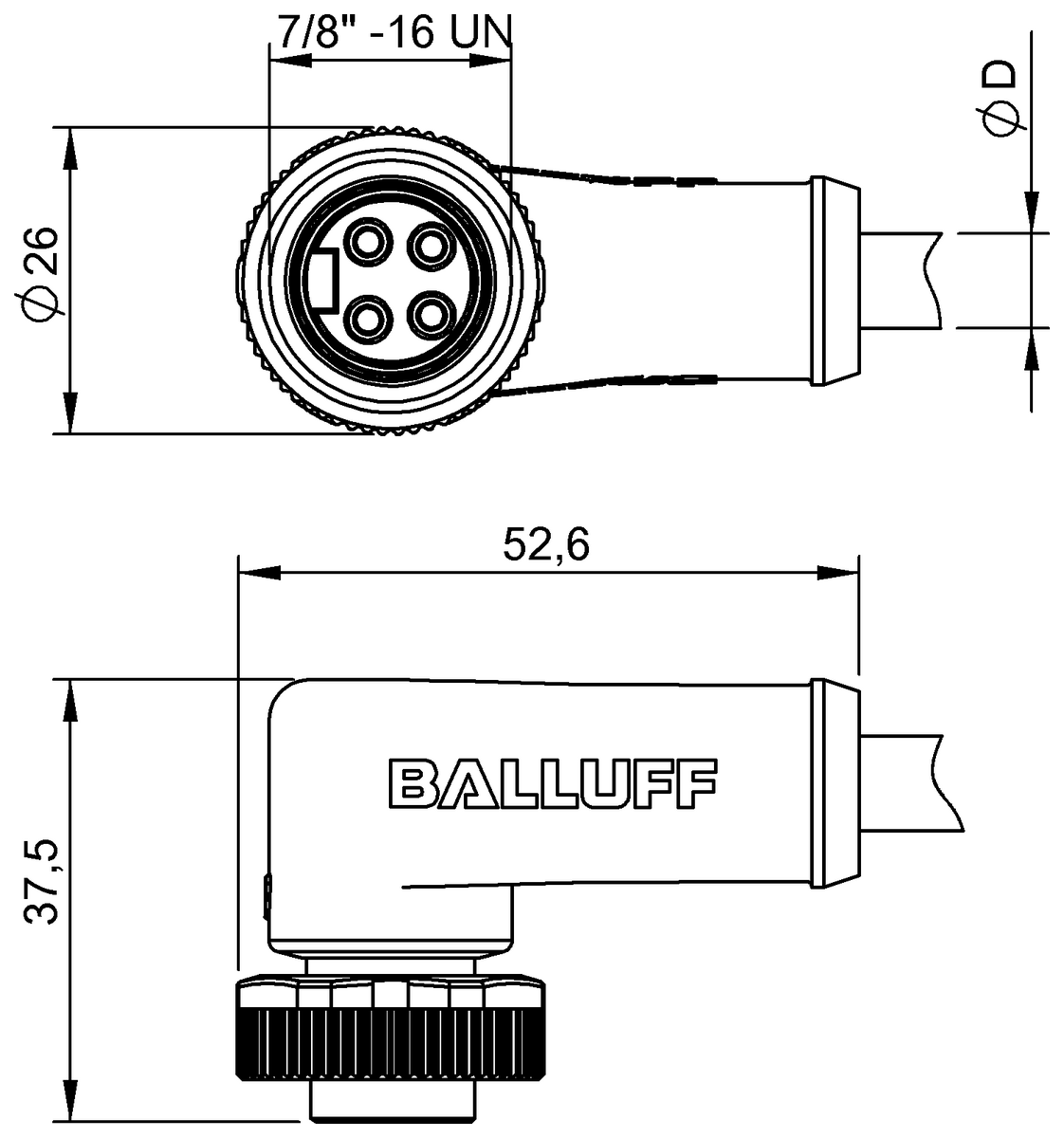

7/8"-Female, angled, 4-pin
Cable
TPE Yellow, 2 m
Number of conductors
4
Conductor cross-section
16 AWG
Operating voltage Ub
300 VDC / 300 VAC
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Recommended alternative
|
|
|
|
|
|
BCC0A96BCC A324-0000-10-003-EX44W6-020- |
BCC06HZBCC A324-0000-10-003-PX04A5-020- |
|
| Connection | 7/8"-Female, angled, 4-pin | 7/8"-Female, angled, 4-pin |
|---|---|---|
| Cable | TPE Yellow, 2 m | PUR black, 2 m, Drag chain compatible |
| Number of conductors | 4 | 4 |
| Conductor cross-section | 16 AWG | 1.5 mm² |
| Operating voltage Ub | 300 VDC / 300 VAC | 300 VDC / 300 VAC |
| Rated current (40 °C) | 10.0 A | 10.0 A |
| IP rating | IP67, IP68 | IP67, IP68 |
| Approval/Conformity |
CE cULus EAC WEEE |
CE cULus WEEE |
