Single-ended cordsets
Connection

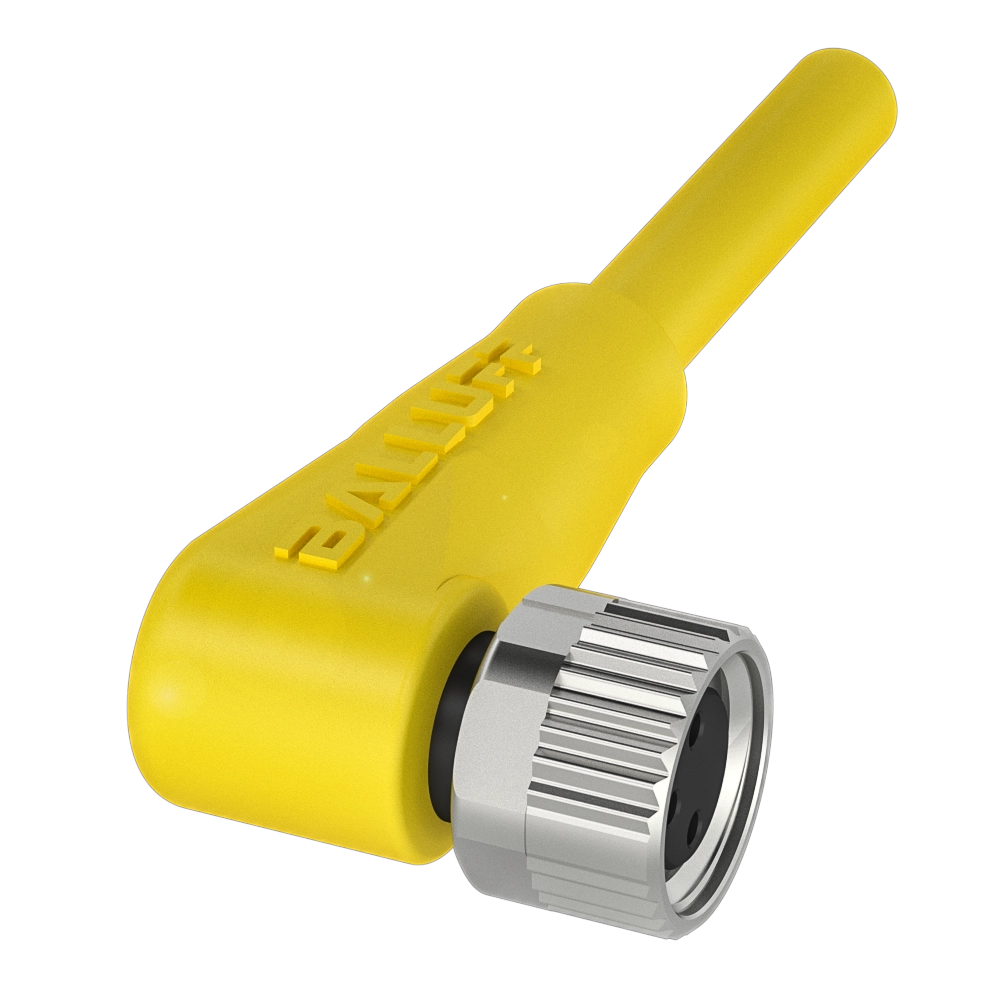

M8x1-Female, angled, 3-pin, A-coded
Cable
PUR yellow, 6 m, Drag chain compatible
Number of conductors
3
Conductor cross-section
22 AWG
Cable temperature, fixed routing
-50...90 °C
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Alternative products
|
Discontinued
|
Recommended alternative
|
Further alternative
|
Further alternative
|
|
|
|
|
|
|
|
BCC0AMFBCC M323-0000-10-001-PX43T2-060- |
MP18543741BCC – 3-wire - PUR-single ended cable yellow – unshielded (Configurable)- |
BCC0559BCC M323-0000-10-001-PX43T2-05023.50 USD |
BCC055LBCC M323-0000-10-004-PX43T2-05028.87 USD |
|
| Connection | M8x1-Female, angled, 3-pin, A-coded | - | M8x1-Female, angled, 3-pin, A-coded | M8x1-Female, angled, 3-pin, A-coded |
|---|---|---|---|---|
| Cable | PUR yellow, 6 m, Drag chain compatible | PUR, Drag chain compatible | PUR yellow, 5 m, Drag chain compatible | PUR yellow, 5 m, Drag chain compatible |
| Number of conductors | 3 | 3 | 3 | 3 |
| Conductor cross-section | 22 AWG | - | 22 AWG | 22 AWG |
| Cable temperature, fixed routing | -50...90 °C | - | -50...90 °C | -50...90 °C |
| Cable temperature, flexible routing | -25...90 °C | - | -25...90 °C | -25...90 °C |
| Operating voltage Ub | 60 VDC / 60 VAC | - | 60 VDC / 60 VAC | 30 VDC |
| Rated current (40 °C) | 4.0 A | - | 4.0 A | 4.0 A |
| Approval/Conformity |
CE cULus EAC |
CE cULus WEEE |
CE cULus WEEE |
CE cULus WEEE |
