BTL

BTL

Discontinued

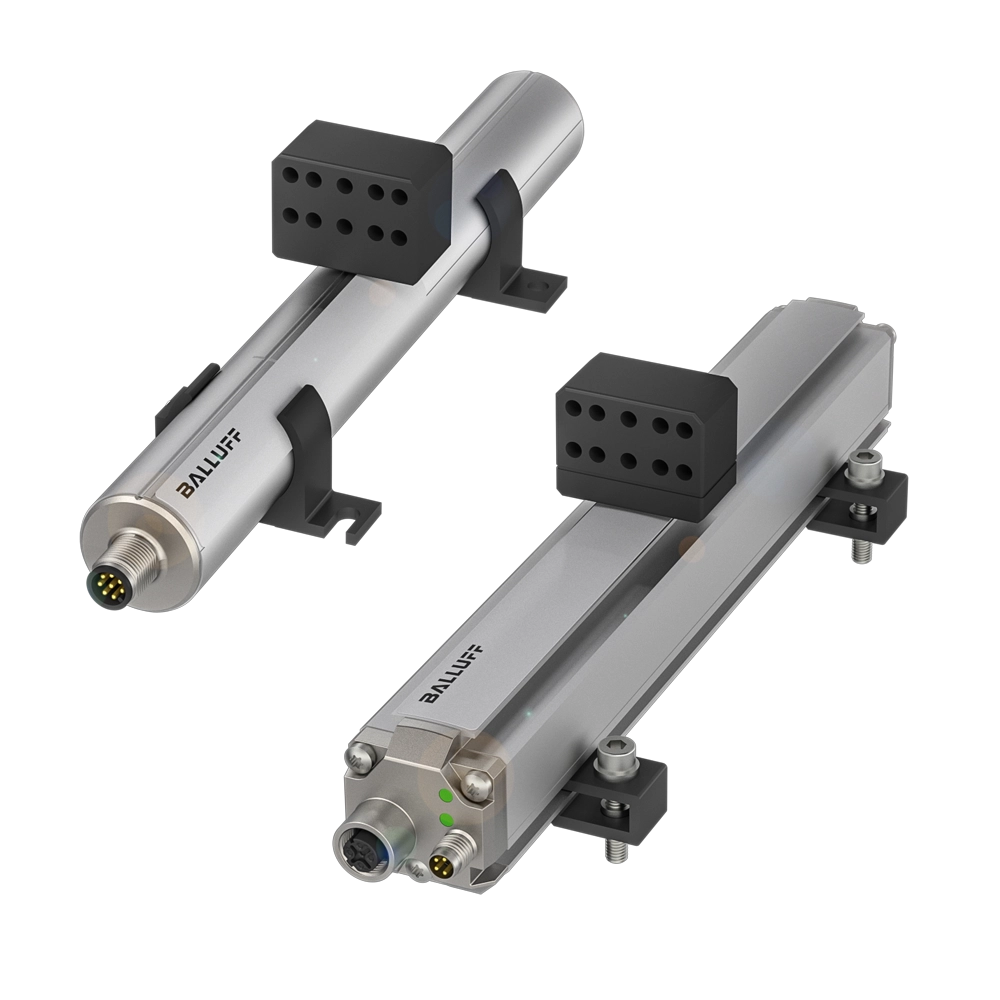

Magnetostrictive linear position sensors in profile design

Typecode:

BTL6-CE500-MXXXX-PF-S115 (MV)

BTL

Similar Illustration

Loading...

Discontinued
You can find the suitable alternative product below

Recommended accessories
Single-Ended Cordsets
Control arm for profile style
Mechanical Accessories
Magnet for profile style
Displays
Style
Profile series
Mounting part
Mounting clamps
Housing material
Aluminum, Anodized
Magnets, number max.
1
Connection
Connector, M12x1, 8-pin
Analog output
Analog, current
Resolution
≤ 700 nA
Operating voltage Ub
10...30 VDC
Ambient temperature
-25...70 °C
IP rating
IP67
Approval/Conformity
CE
UKCA
cULus
WEEE
Technical documentation

Mandatory accessories

Single-Ended Cordsets

Control arm for profile style

Mechanical Accessories

Magnet for profile style

Displays

ECLASS 10.1
27-27-07-03
ECLASS 11.0
27-27-07-03
ECLASS 4.1
27-27-07-03
ECLASS 5.1.3
27-27-07-03
ECLASS 5.1.4
27-27-07-03
ECLASS 6.2
27-27-07-03
ECLASS 8.1
27-27-07-03
ECLASS 9.0
27-27-07-03
ECLASS 9.1
27-27-07-03
ETIM 4.0
EC002544
ETIM 5.0
EC002544
ETIM 6.0
EC002544
ETIM 7.0
EC001852
UNSPSC 11
41112100
UNSPSC 7.0901
41112100
