Similar Illustration

BES00PU

Name: BES00PU
Brand: Balluff
SKU: BES00PU
Price: 186.13 CAD
Availability: OutOfStock

BES 516-325-G-E4-C-S4-00,1

Inductive proximity switches and proximity sensors

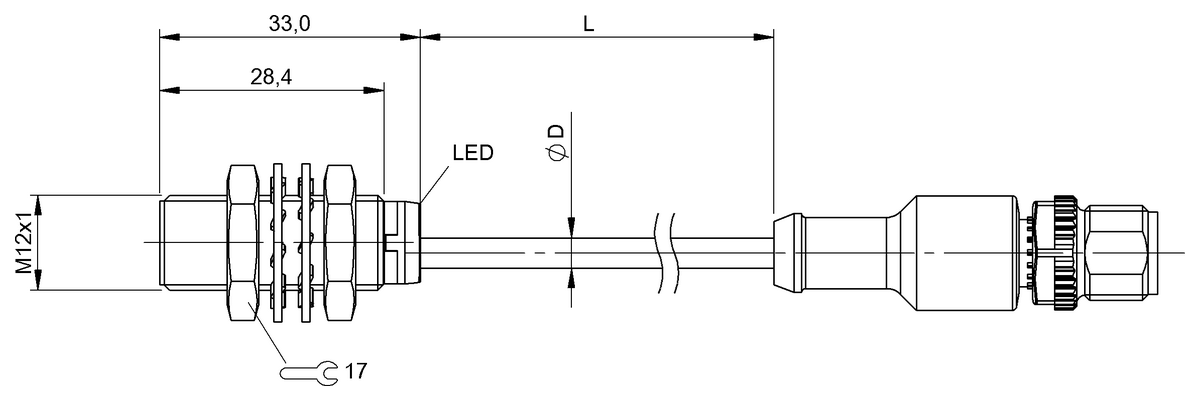

Dimension

Ø 12 x 33 mm

Style Housing

M12x1

Installation

for flush mounting

Range

4 mm

Switching output

PNP Normally open (NO)

Product Features

Do you have any questions about the product? Get in touch with us.

This product page contains information for Canada – Balluff Canada Inc, Ontario

		Alternative	Further alternative

	BES00PU	BES05Y0	BES00PW
	BES 516-325-G-E4-C-S4-00,1	BES 516-325-G-E4-C-S4-00,25	BES 516-325-G-E4-C-S4-00,5
	186.13 CAD	-	187.88 CAD

Dimension	Ø 12 x 33 mm	Ø 12 x 33 mm	Ø 12 x 33 mm
Style Housing	M12x1	M12x1	M12x1
Installation	for flush mounting	for flush mounting	for flush mounting
Range	4 mm	4 mm	4 mm
Switching output	PNP Normally open (NO)	PNP Normally open (NO)	PNP Normally open (NO)
Switching frequency	2500 Hz	2500 Hz	2500 Hz
Housing material	Brass, Nickel-free coated	Brass, Nickel-free coated	Brass, Nickel-free coated
Material sensing surface	PBT	PBT	PBT
Connection	Cable with connector, M12x1-Male, 3-pin, 0.10 m, TPU	Cable with connector, M12x1-Male, 3-pin, 0.25 m, TPU	Cable with connector, M12x1-Male, 3-pin, 0.50 m, TPU
Operating voltage Ub	10...30 VDC	10...30 VDC	10...30 VDC
Ambient temperature	-25...70 °C	-25...70 °C	-25...70 °C
IP rating	IP68, according to BWN Pr 20	IP68, according to BWN Pr 20	IP68, according to BWN Pr 20
Approval/Conformity	CE cULus WEEE	CE UKCA cULus WEEE	CE UKCA cULus WEEE
