Similar Illustration
Canceled
Only CAD model download is supported

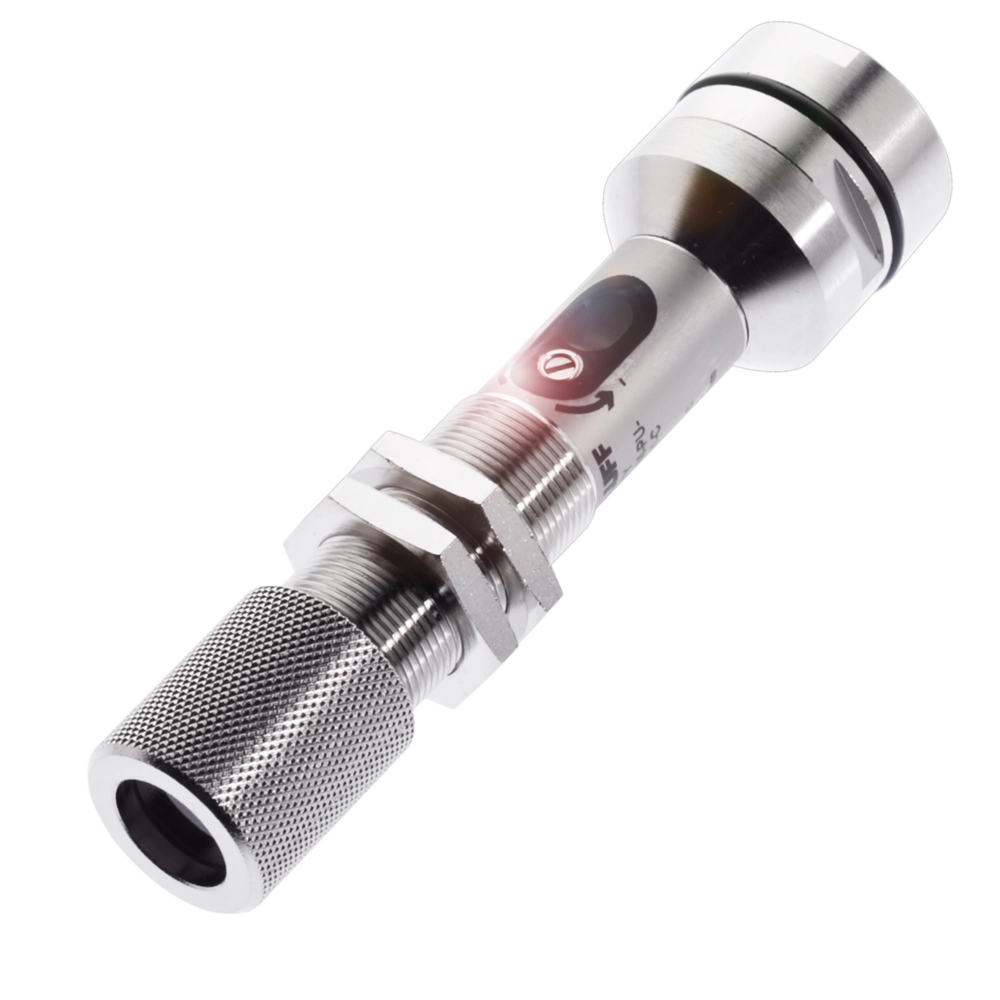

Diffuse sensors
Series
18M

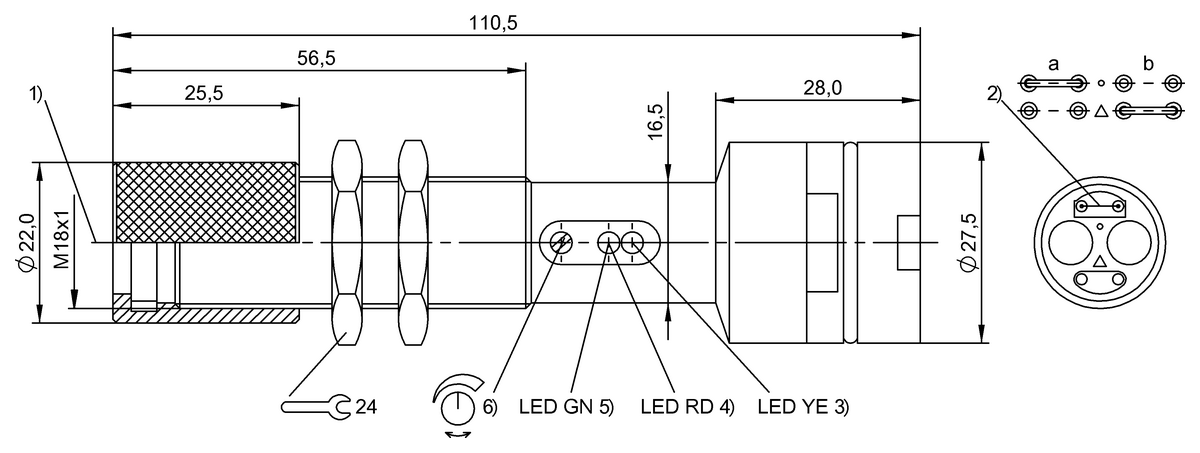

Dimension
Ø 27.5 x 110.5 mm
Interface
PNP NO/NC
Principle of operation
Photoelectric sensor
Principle of optical operation
Diffuse sensor, (energetic)
Do you have any questions about the product?
Get in touch with us.
This product page contains information for Canada – Balluff Canada Inc, Ontario
Alternative products
|
Discontinued
|
Alternative
|
|
|
|
|
|
| BOS 18M-PU-1PD-SA1-C | BOS 18M-PUV-RD30-S4 | |
|
-
List price
|
257.33 CAD
List price
|
|
| Series | 18M | 18M |
|---|---|---|
| Dimension | Ø 27.5 x 110.5 mm | Ø 18 x 75 mm |
| Interface | PNP NO/NC | PNP NO/NC |
| Principle of operation | Photoelectric sensor | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, (energetic) | Diffuse sensor, (energetic) |
| Beam characteristic | Divergent | Divergent |
| Light type | Infrared | LED Red light |
| Range | 60...400 mm | 0...500 mm |
| Connection | Connector, S01-Male | Connector, M12x1-Male, 4-pin |
| Housing material | Brass, nickel-plated | Brass, nickel-plated |
| Material sensing surface | Glass | Glass |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
CE cULus EAC WEEE |
CE UKCA cULus WEEE |
| Light spot size | - | Ø 50 mm at 600 mm |
