BCC0LP4

Name: BCC0LP4
Brand: Balluff
SKU: BCC0LP4
Price: 872.22 HKD
Availability: OutOfStock

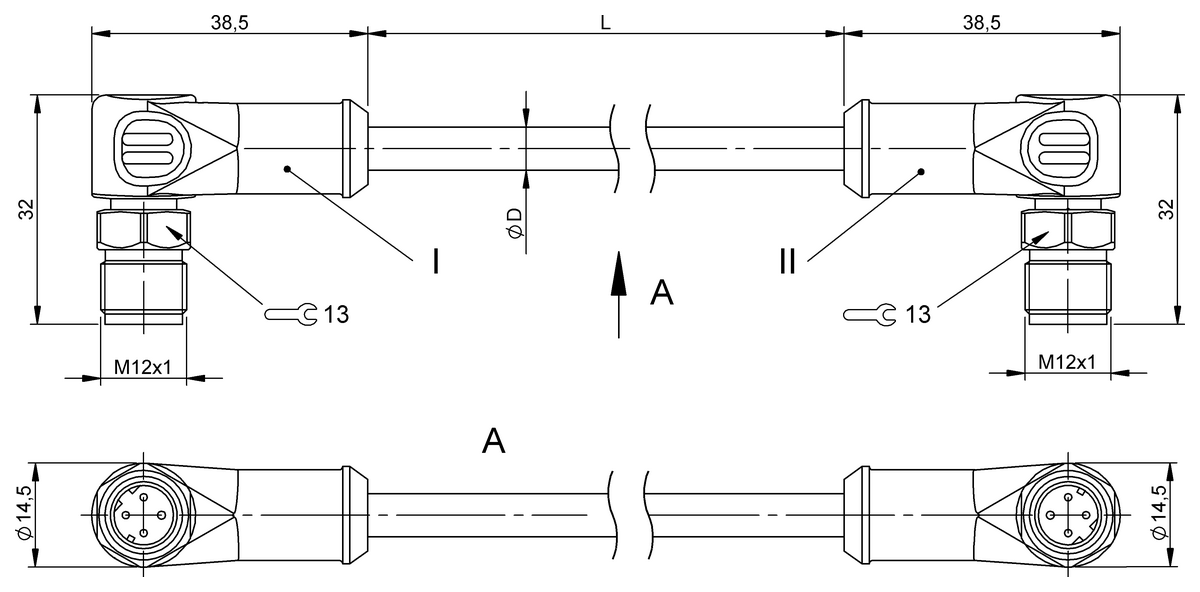

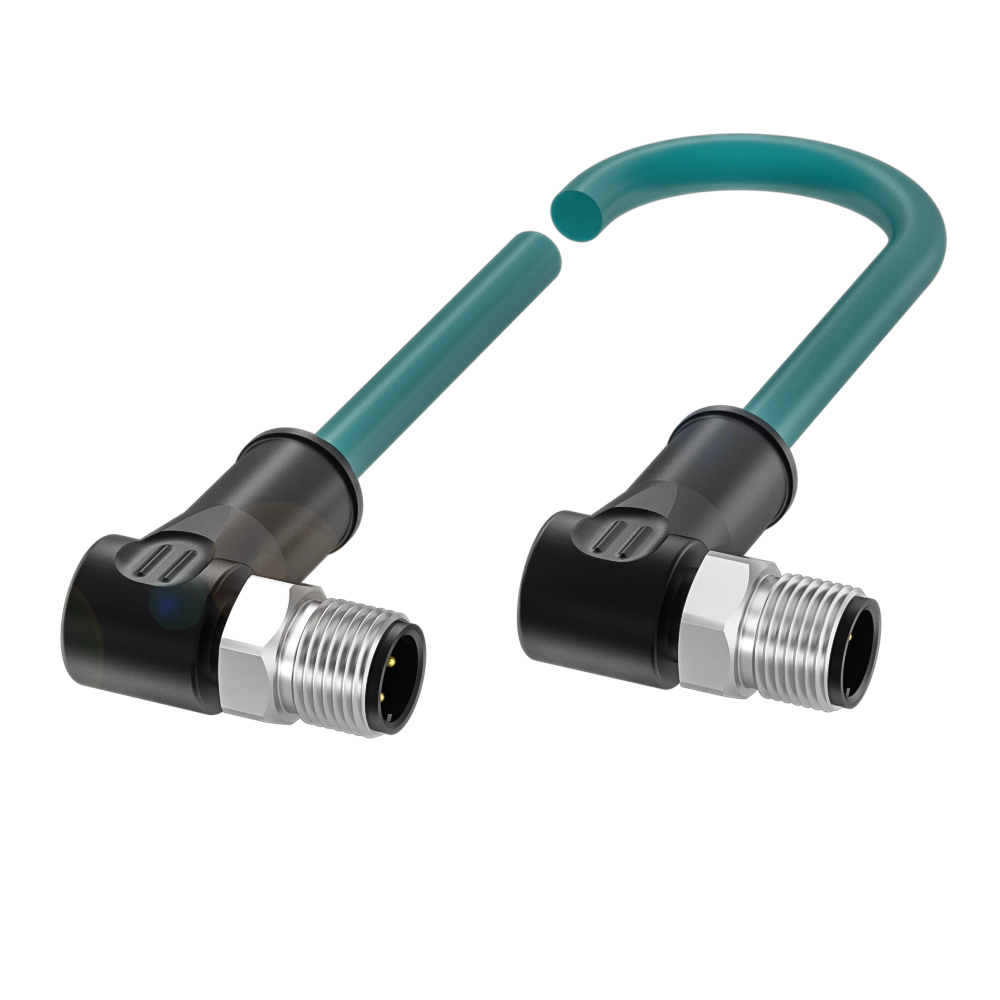

BCC S424-S424-6D-338-ES64N9-050-C009

Double-ended cordsets

Connection 1

M12x1-Male, angled, 4-pin, D-coded

Connection 2

M12x1-Male, angled, 4-pin, D-coded

Interface

Ethernet/IP

Cable

TPE Shielded teal, 5 m, drag chain compatible

Cable, note

Ethernet, CAT 5E

Do you have any questions about the product? Get in touch with us.

This product page contains information for Hong Kong – Balluff Hong Kong Ltd., Shatin, N.T.

	Discontinued	Alternative	Further alternative

	BCC0LP4	BCC0HHP	BCC0HHH
	BCC S424-S424-6D-338-ES64N9-050-C009	BCC M424-M424-6D-338-ES64N9-050	BCC M414-M424-6D-338-ES64N9-050
	872,22 HKD	760,87 HKD	760,87 HKD

Connection 1	M12x1-Male, angled, 4-pin, D-coded	M12x1-Male, angled, 4-pin, D-coded	M12x1-Male, straight, 4-pin, D-coded
Connection 2	M12x1-Male, angled, 4-pin, D-coded	M12x1-Male, angled, 4-pin, D-coded	M12x1-Male, angled, 4-pin, D-coded
Interface	Ethernet/IP	Ethernet/IP	Ethernet/IP
Cable	TPE Shielded teal, 5 m, drag chain compatible	TPE Shielded teal, 5 m, drag chain compatible	TPE Shielded teal, 5 m, drag chain compatible
Cable, note	Ethernet, CAT 5E	Ethernet, CAT 5E	Ethernet, CAT 5E
Number of conductors	4	4	4
Cable temperature, flexible routing	-40...80 °C	-40...80 °C	-40...80 °C
Operating voltage Ub	60 VDC	60 VDC	60 VDC
Rated current (40 °C)	1.5 A	1.5 A	1.5 A
IP rating	IP67/IP67	IP67/IP67	IP67/IP67
Approval/Conformity	CE WEEE	CE cULus WEEE	CE cULus WEEE
