Similar Illustration

BCC0LUF

Name: BCC0LUF
Brand: Balluff
SKU: BCC0LUF
Availability: OutOfStock

BCC M415-0000-2L-003-PX04A5-020

Power cables

Connection

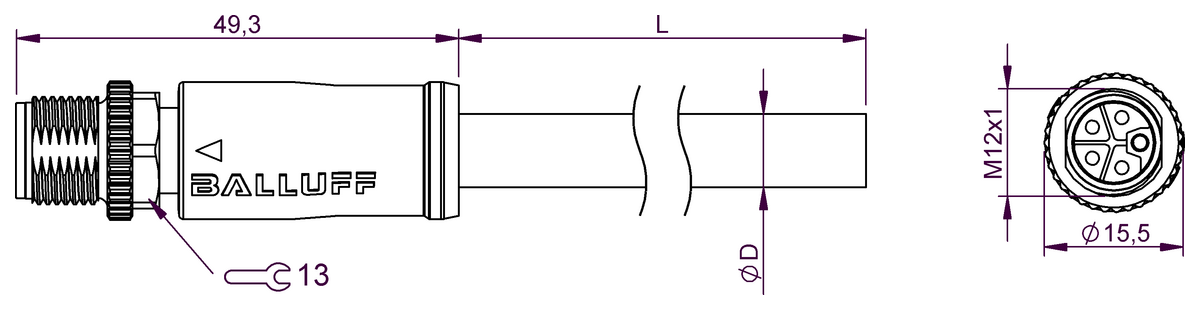

M12x1-Male, straight, 5-pin, L-coded

Cable

PUR black, 2 m, drag chain compatible

Number of conductors

Conductor cross-section

1.5 mm²

Cable temperature, fixed routing

-40...85 °C

Do you have any questions about the product? Get in touch with us.

This product page contains information for Hong Kong – Balluff Hong Kong Ltd., Shatin, N.T.

		Alternative

	BCC0LUF	BCC0LUW
	BCC M415-0000-2L-003-PX04A5-020	BCC M425-0000-2L-003-PX04A5-020
	-	-

Connection	M12x1-Male, straight, 5-pin, L-coded	M12x1-Male, angled, 5-pin, L-coded
Cable	PUR black, 2 m, drag chain compatible	PUR black, 2 m, drag chain compatible
Number of conductors	4	4
Conductor cross-section	1.5 mm²	1.5 mm²
Cable temperature, fixed routing	-40...85 °C	-40...85 °C
Cable temperature, flexible routing	-20...85 °C	-20...85 °C
Operating voltage Ub	63 VDC	63 VDC
Rated current (40 °C)	16 A UL/12 A cUL	16 A UL/12 A cUL
IP rating	IP65, IP67	IP65, IP67
Approval/Conformity	CE WEEE UKCA cULus	CE WEEE UKCA cULus
