Flexible process visualization in battery module and pack assembly

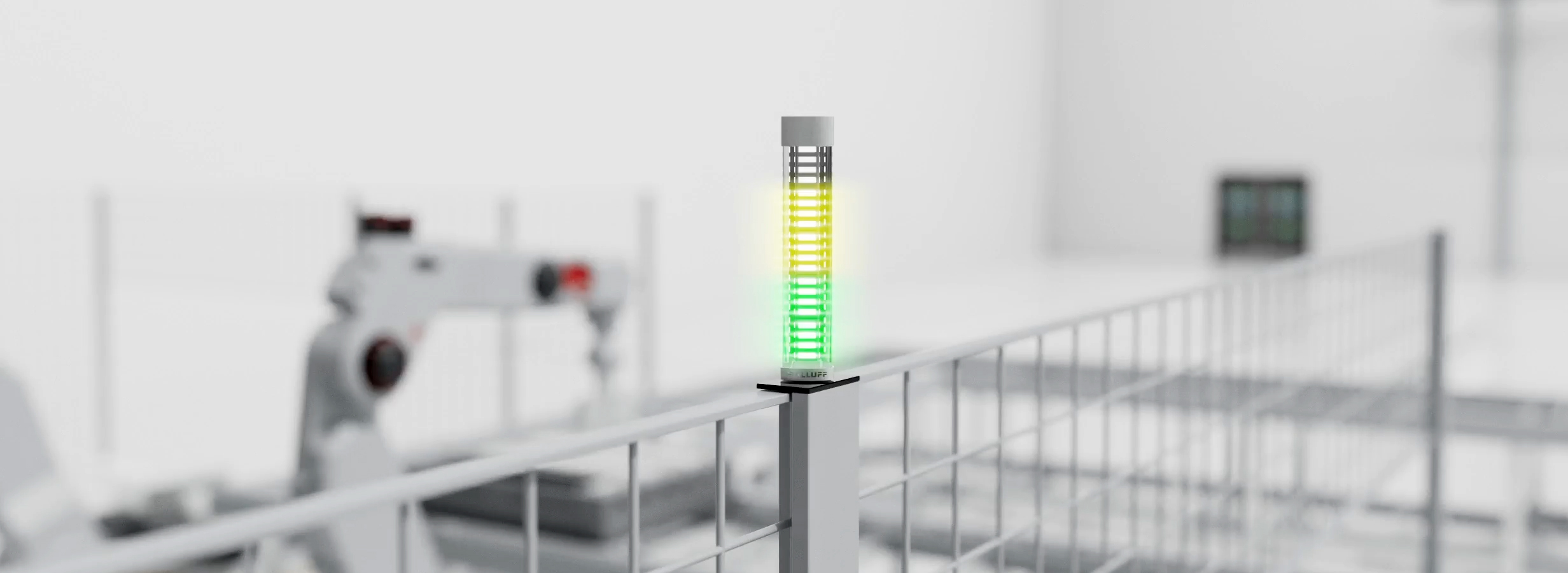

SmartLight LED signal lights for efficient monitoring and control
In battery module and pack assembly, precise process visualization is essential for the efficient monitoring and control of machines and systems. With our SmartLights, equipped with a flexible and diverse color spectrum, operating states can be clearly signaled. Colors can be individually defined via the control system to indicate important to critical states in real time.
Thanks to IO-Link technology, the lights are not only easy to install but can also be adjusted during operation. Different colors can be assigned to the SmartLights with just a few commands, without having to change the LED columns mechanically. For even more comprehensive process monitoring, the SmartLights are equipped with three selectable modes and are optionally available with an integrated sound module for acoustic alerts.
Features
- Flexible colour spectrum for individual signaling of machine statuses
- Simple adjustment during operation via IO-Link without mechanical changes
- Three selectable operating modes for different applications
- Optional sound module for additional acoustic signaling
- Quick installation and integration into existing systems
Recommended smart lights and machine lighting for visualizing production processes
LED signal towers with different numbers of segments
Smart LED signal towers with different numbers of segments
Compact LED signal light with 6 segments and IP67
Machine lighting
IO-Link control panel
LED signal towers with different numbers of segments
- Principle of operation
- Indicator light
- Interface
- IO-Link 1.1
- Operating voltage Ub
- 18...30.2 VDC
- Connection
- M12x1-Male, 4-pin
- Segments, number max.
- 5
- Predefined colors
-
Yellow
white
Green
Blue
Red
Orange
configurable - Function indicator
-
Runlight Mode
Level Mode
Segment Mode
Flexi-Mode - Setting
- Function indicator
- Additional function
- Expanded process data
- Dimension
- 60 x 60 x 309 mm
- Housing material
-
PC, Transparent, Cu 15 µm, Ni 15 µm
Die-cast zinc - Mounting part
- Screws M18
- Ambient temperature
- -5...50 °C
- IP rating
- IP65
- Transfer rate
- COM2 (38.4 kBaud)
- Process data cycle min.
- 7.2 ms
- Process data IN
- 1 byte
- Process data OUT
- 8 bytes
