BCC009H

Name: BCC009H
Brand: Balluff
SKU: BCC009H
Price: 7162.1 INR
Availability: OutOfStock

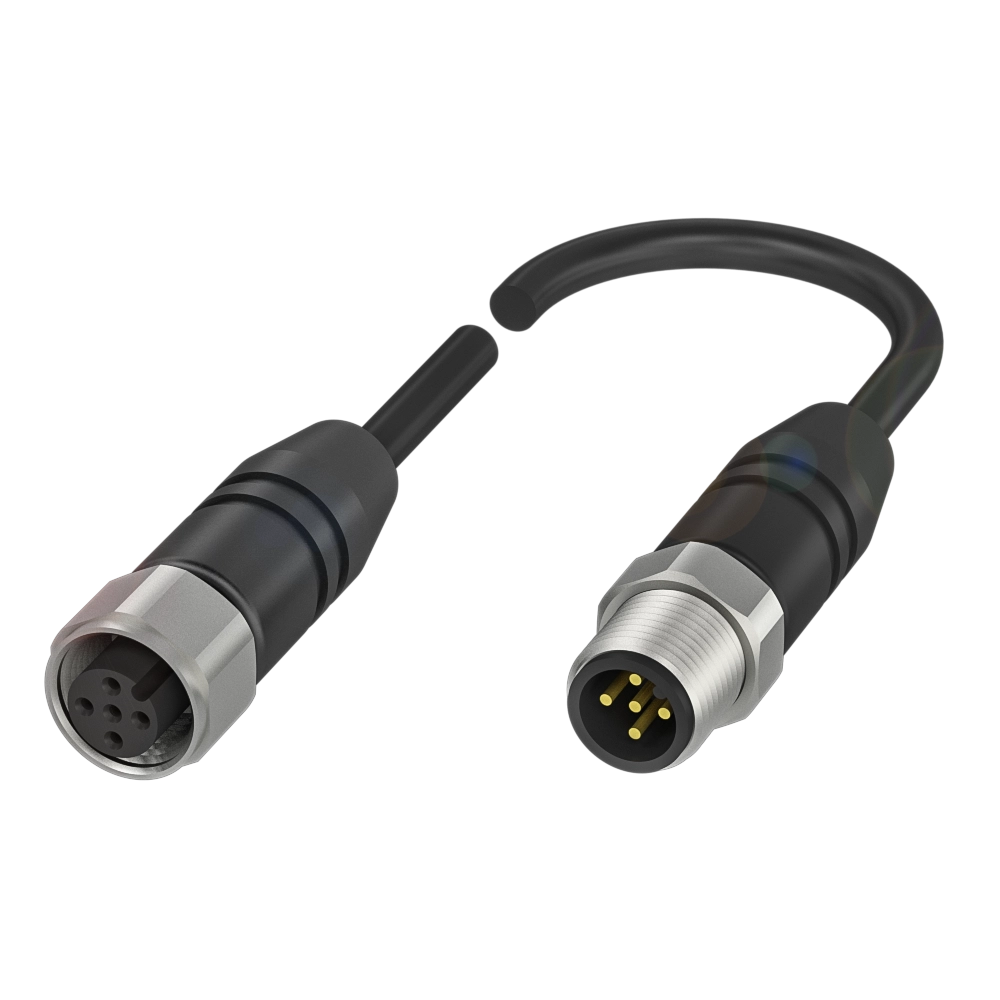

BKS-S137-19/GS92-PC-05

Double-ended cordsets

Connection 1

M12x1-Female, straight, 5-pin, A-coded

Connection 2

M12x1-Male, straight, A-coded

Cable

PUR Shielded black, 5 m, drag chain compatible

Number of conductors

Cable temperature, fixed routing

-50...80 °C

Recommended successor products

Estimated availability

How does the alternative product differ from the discontinued one?

Do you have any questions about the product? Get in touch with us.

This product page contains information for India – Balluff Automation India Pvt. Ltd., Pune, Maharashtra

	Discontinued	Discontinued Recommended alternative	Further alternative	Further alternative

	BCC009H	BCC0LN5	BCC0HL8	BCC0H2M
	BKS-S137-19/GS92-PC-05	BCC S415-S415-3A-388-PS0525-050	BCC M415-M415-3A-314-PS0525-050	BCC M415-M415-3A-315-PS0534-050
	7.162,10 INR	10.199,15 INR	5.374,55 INR	5.673,75 INR

Connection 1	M12x1-Female, straight, 5-pin, A-coded	M12x1-Female, straight, 5-pin, A-coded	M12x1-Female, straight, 5-pin, A-coded	M12x1-Female, straight, 5-pin, A-coded
Connection 2	M12x1-Male, straight, A-coded	M12x1-Male, straight, 5-pin, A-coded	M12x1-Male, straight, 5-pin, A-coded	M12x1-Male, straight, 5-pin, A-coded
Cable	PUR Shielded black, 5 m, drag chain compatible	PUR Shielded black, 5 m, drag chain compatible	PUR Shielded black, 5 m, drag chain compatible	PUR Shielded black, 5 m, drag chain compatible
Number of conductors	5	5	5	5
Cable temperature, fixed routing	-50...80 °C	-50...80 °C	-50...80 °C	-50...80 °C
Cable temperature, flexible routing	-25...80 °C	-25...80 °C	-25...80 °C	-25...80 °C
Operating voltage Ub	36 VDC / 30 VAC	36 VDC / 30 VAC	60 VDC / 60 VAC	60 VDC / 60 VAC
IP rating	IP67	IP67	IP67/IP67	IP67/IP67
Approval/Conformity	CE WEEE	CE WEEE	CE cULus UKCA WEEE	CE cULus UKCA WEEE
Rated current (40 °C)	-	4.0 A	4.0 A	4.0 A
