All cameras with Sony sensor IMX420
Description
The IMX420 sensor from Sony from the Pregius family is a monochrome CMOS image sensor with a resolution of 7.1 megapixels. It has a Global shutter in optical 1.1 format and a pixel size of 4.5 µm
Technical features
-
ManufacturerSony
-
Sensor nameIMX420
-
Structure of the deviceCMOS
-
Image size1.1
-
Number of effective pixels2208 (H) x 3216 (W)
-
Pixel size4.5 µm
-
ADC resolution / output145 bit -> 12 bit
Products
| Product | FPS* | Exposure time |
Power Consumption [W] |
DR [dB] | SNR [dB] |

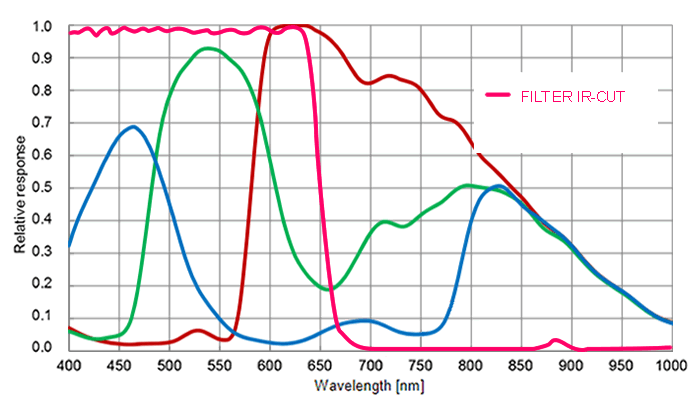

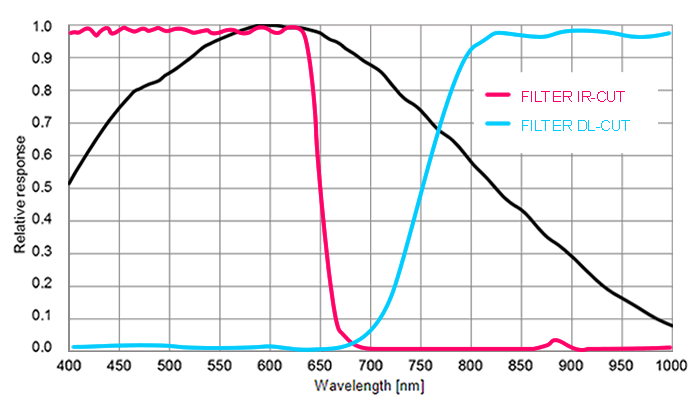

Spectral Sensitivity |
EMVA 1288 |
|---|---|---|---|---|---|---|---|
BVS CA-GX2-0071ZC |
33.4 / 50.7 / 133.7 | 9 µs - 20 s | 6.3 | 73.7 | 44.0 |
|
- |
BVS CA-GX2-0071ZG |
33.4 / 50.7 / 133.7 | 9 µs - 20 s | 6.3 | 74.1 | 43.9 |
|
- |
BVS CA-SF2-0071ZC |
53.5 / 60.6 / 214 | 8 µs - 20 s | 4.4 | 71.9 | 43.9 |
|
|
BVS CA-SF2-0071ZG |
53.5 / 60.6 / 214 | 8 µs - 20 s | 4.4 | 71.7 | 43.8 |
|
* Streaming / Burst Mode / Max. Streaming depending on sensor either with 2x2 binning or decimation (horizontal x vertical)
Sony Megapixel vs. maximum frame rate diagram
Megapixel (MP)
Maximum sensor frame rate (FPS)
