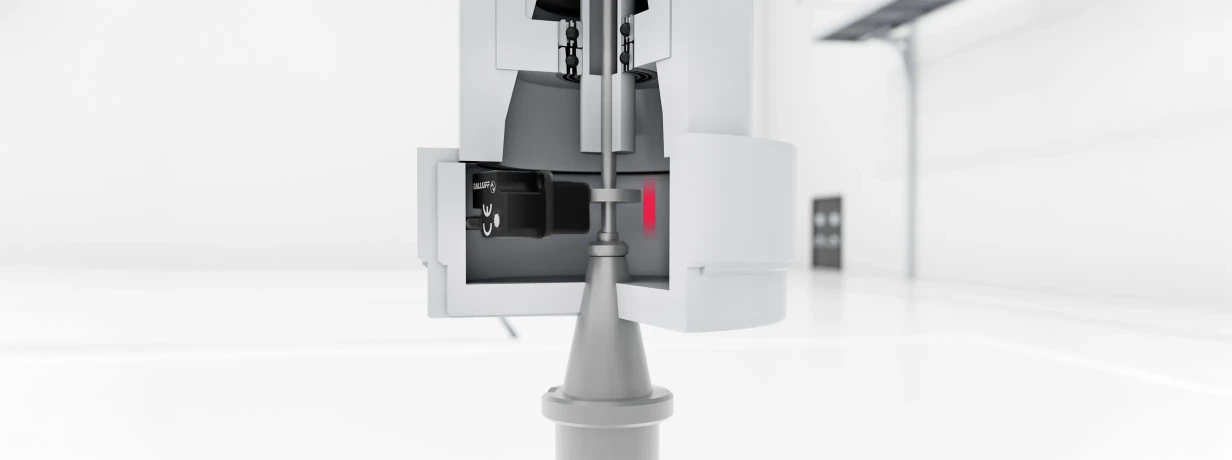

Small inductive position measurement system BIP

With the BIP inductive sensors, you can measure the positions of metallic objects contactlessly and wear-free, achieving the highest precision. Our very compact inductive position sensors have been specifically designed for limited installation spaces and excel even in the tightest mounting conditions. Compact and precise tool spindles and tool changers in a machining center play a central role in the work process. Therefore, reliable and wear-free monitoring of the clamping process is crucial. As miniaturization progresses, space constraints increasingly pose a challenge. The smallest inductive position measurement system BIP offers the perfect solution: it features a measurement range of up to 10 mm, making it ideal for applications in small spaces. Thanks to our new technology platform, we provide simultaneous availability of analog and IO-Link interfaces. This gives you the flexibility to customize the system according to your individual requirements. The simple programming via the IO-Link interface also allows for efficient integration into your existing processes.

Our position measurement system not only boasts a very compact design but also includes smart functionalities that enhance your efficiency. An individually programmable stroke counter captures the movements of your application and provides you with real-time information on wear and lifespan. Additionally, the sensors are designed for harsh environments, ensuring reliable operation even under demanding conditions.

Products

BIP inductive position sensor: Intelligent sensor for tight spaces

Dimension: 22 x 23.7 x 15 mm

Mounting brackets
