BMF00FE

Name: BMF00FE
Brand: Balluff
SKU: BMF00FE
Price: 156320 KRW
Availability: OutOfStock

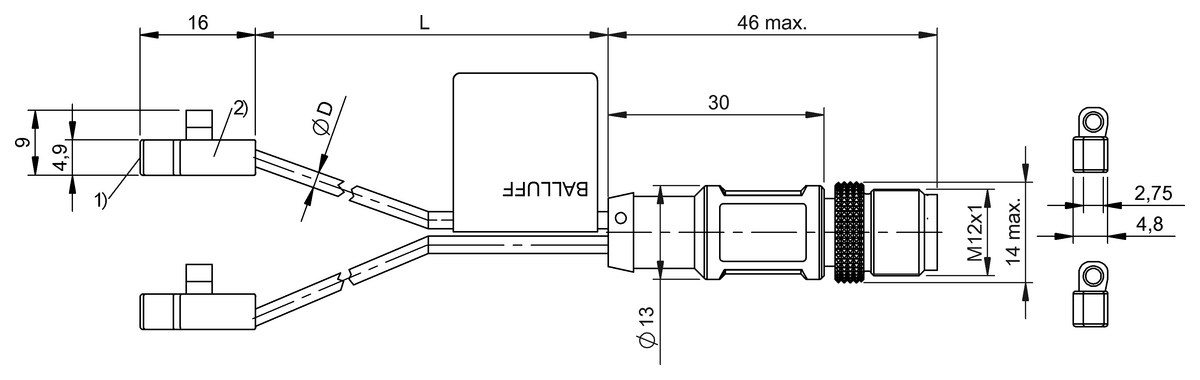

BMF 103K-PS-C-2A-SA95-S4-00,3

For different slots with 2 sensor heads

Slot type

variable

Dimension

5 x 3 x 16 mm

Principle of operation

Magnetic field sensor

Connection

M12x1-Male, 4-pin, A-coded

Cable

PUR, 0.3 m

Do you have any questions about the product? Get in touch with us.

This product page contains information for Koera – Balluff Korea Ltd., Gyeonggi-do

		Alternative	Further alternative

	BMF00FE	BMF004E	BMF00KP
	BMF 103K-PS-C-2A-SA95-S4-00,3	BMF 303K-PS-C-2A-SA95-S4-00,3	BMF 303K-PS-C-2A-S4-00,3
	156,320 KRW	138,900 KRW	90,550 KRW

Slot type	variable	variable	variable
Dimension	5 x 3 x 16 mm	25.5 x 3 x 4.5 mm	25.5 x 3 x 4.5 mm
Principle of operation	Magnetic field sensor	Magnetic field sensor	Magnetic field sensor
Connection	M12x1-Male, 4-pin, A-coded	M12x1-Male, 4-pin, A-coded	M12x1-Male, 4-pin, A-coded
Cable	PUR, 0.3 m	PUR, 0.3 m	PUR, 0.3 m
Application	Optimized response path especially suited for short-stroke cylinders.	miniaturized actuators	-
Housing material	PBT	LCP	LCP
Switching output	PNP normally open (NO)	PNP normally open (NO)	PNP normally open (NO)
Switching frequency	7000 Hz	30000 Hz	30000 Hz
Operating voltage Ub	10...30 VDC	10...30 VDC	10...30 VDC
Ambient temperature	-25...85 °C	-25...85 °C	-25...85 °C
IP rating	IP67	IP67	IP67
Approval/Conformity	cULus CE UKCA WEEE	CE UKCA cULus WEEE	cULus CE UKCA WEEE
Mounting part	-	Mounting bracket BMF 303-HW*	-
