Similar Illustration
Canceled
Only CAD model download is supported
Through-beam sensors
Series
35K

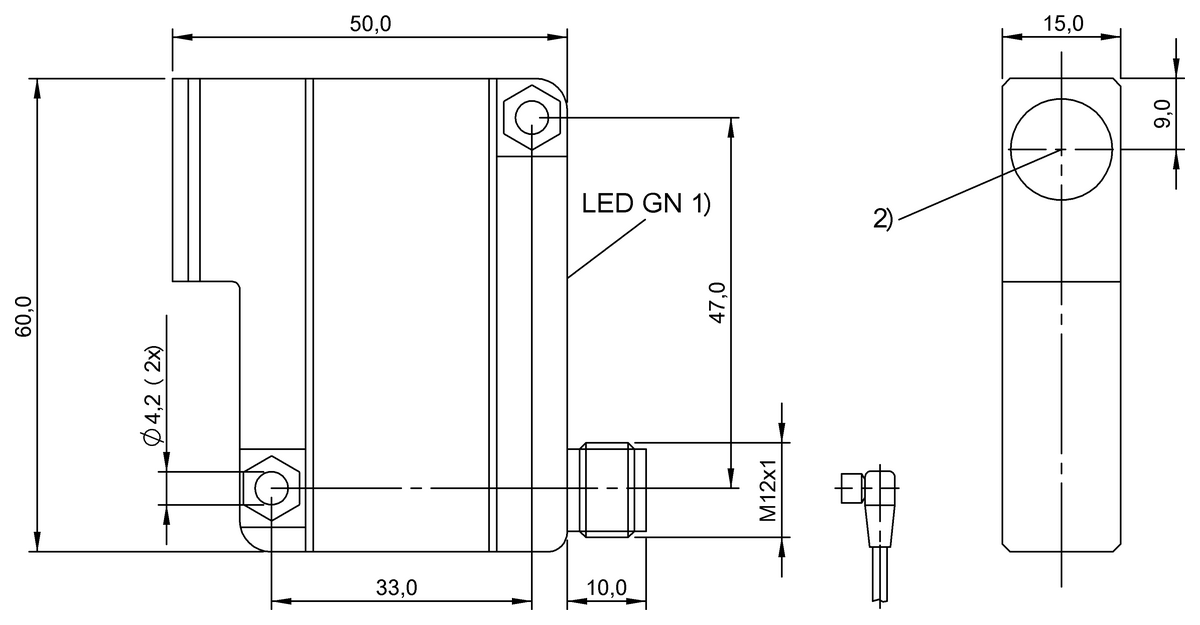

Dimension
15 x 60 x 60 mm
Principle of operation
Photoelectric sensor
Principle of optical operation
Through-beam sensor (Emitter)
Light type
Infrared
Recommended alternative
BOS016E
Through-beam sensors
BOS 23K-XT-RS11-S4
Availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for Luxembourg
Alternative products
|
Discontinued
|
Recommended alternative
|
|
|
|
|
|
| BLS 35K-XX-1H-S4-L | BOS 23K-XT-RS11-S4 | |
|
-
List price
|
74,19 EUR
List price
|
|
| Series | 35K | 23K |
|---|---|---|
| Dimension | 15 x 60 x 60 mm | 23 x 51 x 52.4 mm |
| Principle of operation | Photoelectric sensor | Photoelectric sensor |
| Principle of optical operation | Through-beam sensor (Emitter) | Through-beam sensor (Emitter) |
| Light type | Infrared | LED, red light |
| Light spot size | Ø 11 mm Light exit | 600 x 600 mm at 20 m |
| Range | 0...8 m | 0...25 m |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin |
| Housing material | PA 12 |
PC ABS |
| Material sensing surface | PMMA | PMMA |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
CE cULus |
CE Ecolab cULus WEEE |
| Special characteristics | - | Washdown |
| Input function | - | Test (Emitter off) |
| Beam characteristic | - | Divergent |
