BAM003R

BMS CS-M-D12-IQ40-03

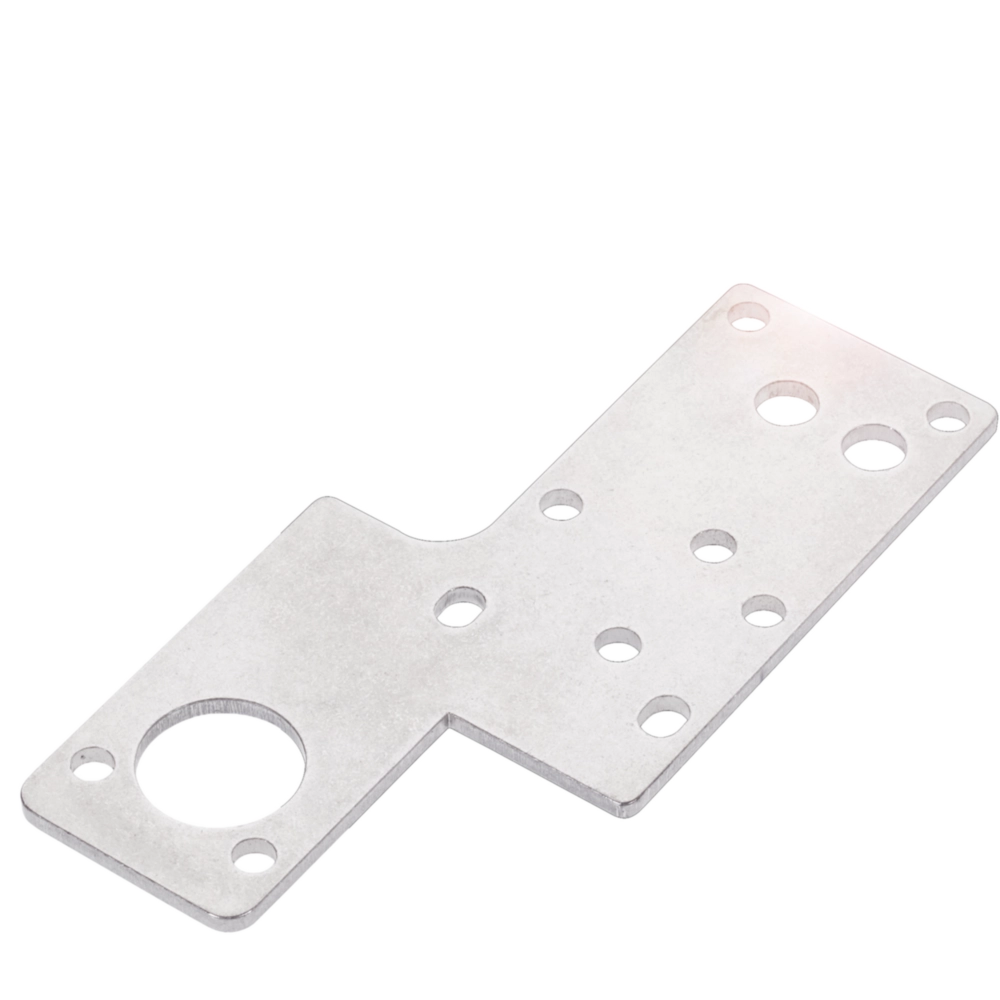

Flexible mounting system

Principle of operation
Mounting system
Use
for capacitive sensors BCS Q40
for inductive sensors BES Q40
for inductive couplers BIC Q40
Material
Stainless steel
Dimension

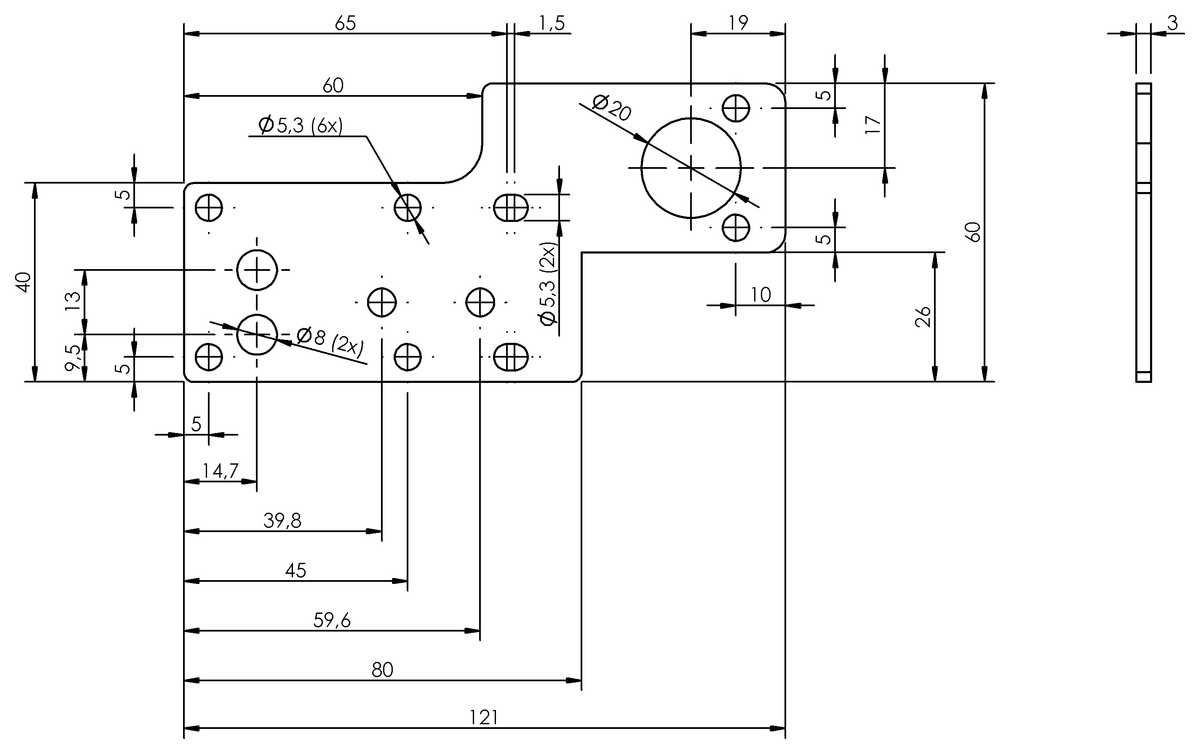

121 x 3 x 60 mm
Mounting part
Screws, clamps
Do you have any questions about the product? Get in touch with us.
This product page contains information for Mexico – Balluff Manufacturing Aguascalientes, S.A. de C.V., Jesús Gómez Portugal, Ags.

Quantity scale

Contact request
Key features
Principle of operation
Mounting system
Use
for capacitive sensors BCS Q40
for inductive sensors BES Q40
for inductive couplers BIC Q40
Material
Stainless steel
Dimension
121 x 3 x 60 mm
Mounting part
Screws, clamps
Classifications
ECLASS 10.1
27-27-37-01
ECLASS 11.0
27-27-37-01
ECLASS 12.0
27-27-37-01
ECLASS 13.0
27-27-37-01
ECLASS 14.0
27-27-37-01
ECLASS 4.1
27-27-90-02
ECLASS 5.1.4
27-27-92-02
ECLASS 6.2
27-27-92-02
ECLASS 8.1
27-27-92-02
ECLASS 9.0
27-27-37-01
ECLASS 9.1
27-27-37-01
ETIM 4.0
EC000127
ETIM 5.0
EC000127
ETIM 6.0
EC000127
ETIM 7.0
EC000127
ETIM 8.0
EC000127
ETIM 9.0
EC003015
UNSPSC 11
31162300
UNSPSC 7.0901
31162300
