Canceled

BCC0F76

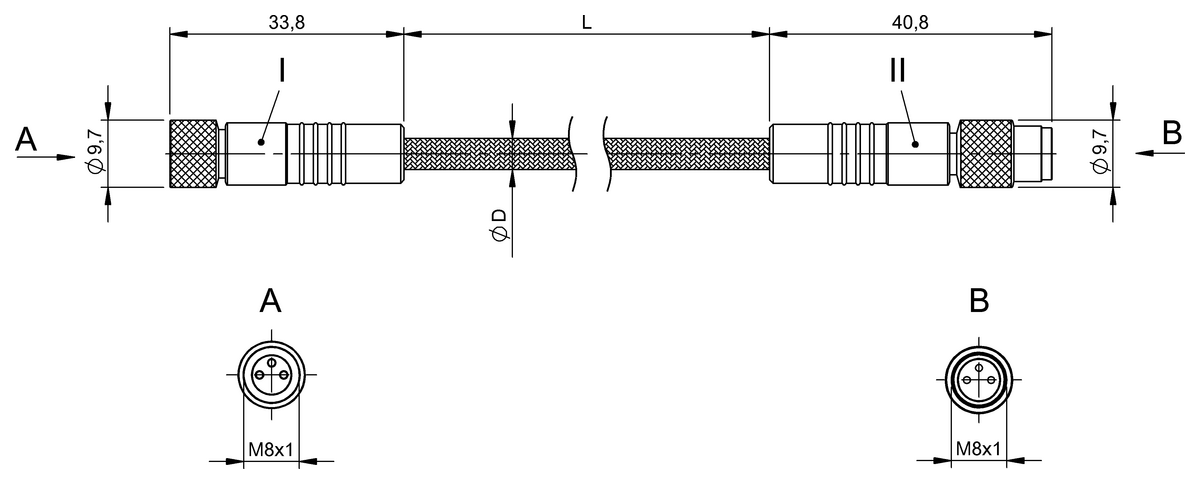

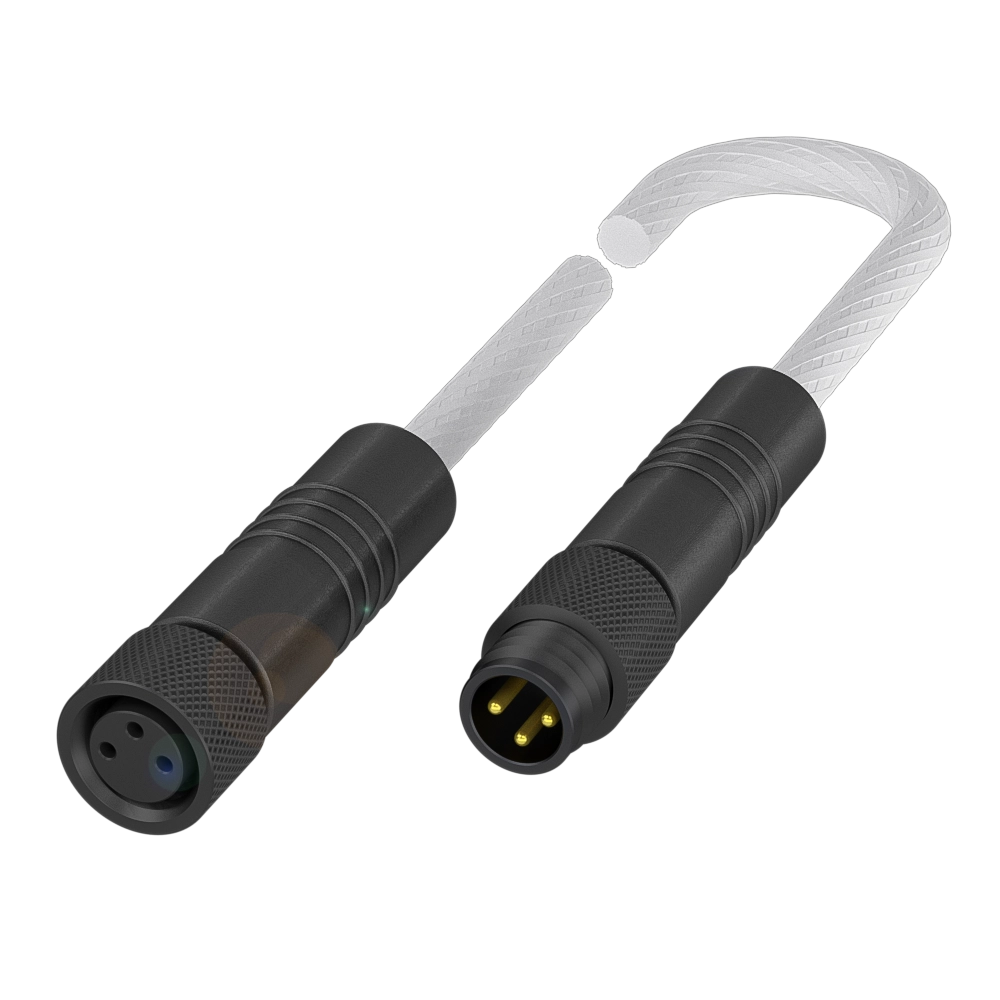

BCC W313-W313-30-300-FW9334-006

Double-ended cordsets

Connection 1
M8x1-Female, Straight, 3-pin, A-coded
Connection 2
M8x1-Male, Straight, 3-pin, A-coded
Cable
PUR welding spark resistant black, 0.6 m
Number of conductors
3
Cable temperature, fixed routing
-60...400 °C
Do you have any questions about the product? Get in touch with us.
This product page contains information for Mexico – Balluff Manufacturing Aguascalientes, S.A. de C.V., Jesús Gómez Portugal, Ags.

Quantity scale

Contact request
Key features
Connection 1
M8x1-Female, Straight, 3-pin, A-coded
Connection 2
M8x1-Male, Straight, 3-pin, A-coded
Cable
PUR welding spark resistant black, 0.6 m
Number of conductors
3
Cable temperature, fixed routing
-60...400 °C
Operating voltage Ub
60 VDC / 60 VAC
Rated current (40 °C)
4.0 A
IP rating
IP65/IP65
Approval/Conformity
CE
cULus
EAC
WEEE
Classifications
ECLASS 10.1
27-06-03-11
ECLASS 11.0
27-06-03-11
ECLASS 12.0
27-06-03-11
ECLASS 13.0
27-06-03-11
ECLASS 14.0
27-06-03-11
ECLASS 4.1
27-27-90-01
ECLASS 5.1.4
27-27-92-01
ECLASS 6.2
27-27-92-01
ECLASS 8.1
27-27-92-18
ECLASS 9.0
27-06-03-11
ECLASS 9.1
27-06-03-11
ETIM 4.0
EC001855
ETIM 5.0
EC001855
ETIM 6.0
EC001855
ETIM 7.0
EC001855
ETIM 8.0
EC001855
ETIM 9.0
EC001855
UNSPSC 11
26121604
UNSPSC 7.0901
26121604
