Replacement available
Only CAD model download is supported

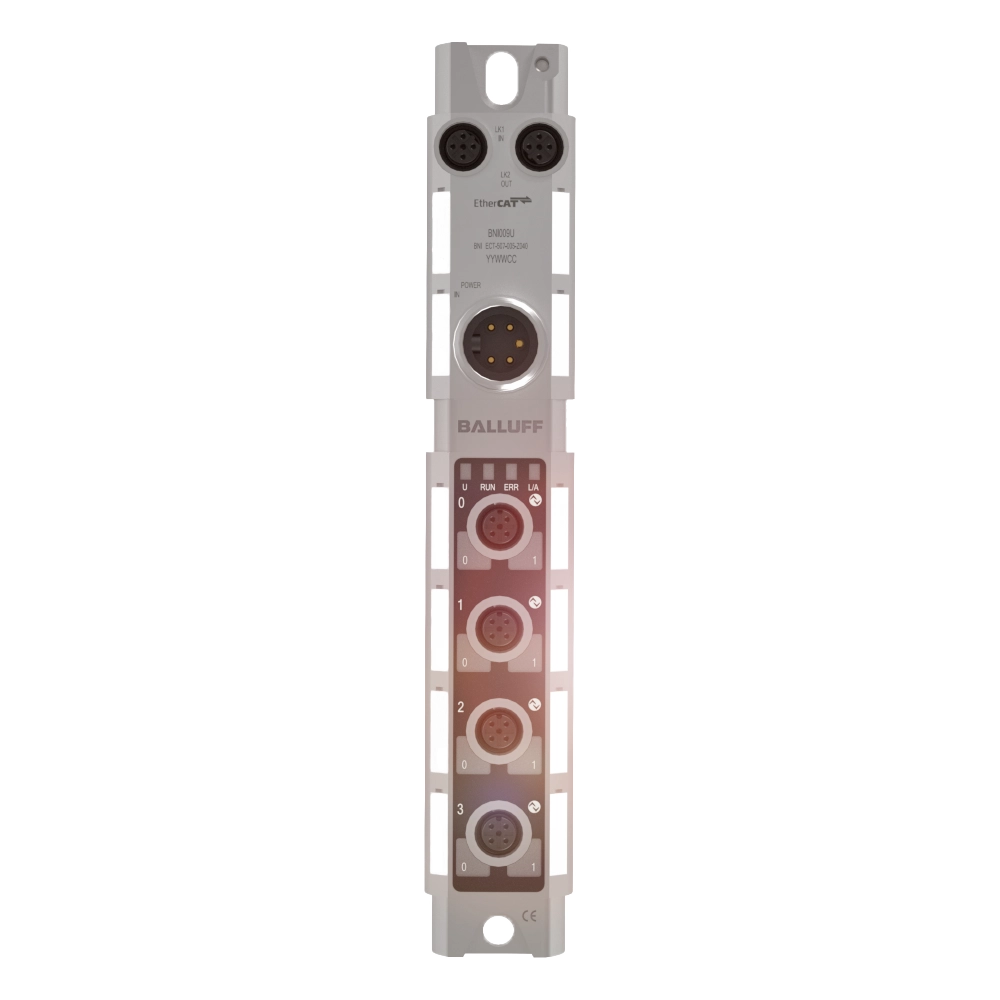

Network blocks for EtherCAT
Interface
EtherCAT
Auxiliary interfaces
4x IO-Link
Port-class
Type A
Output current max.
2 A
Operating voltage Ub
18...30.2 VDC
Put together your individual RFID system, tailored to your needs and areas of application.
Recommended successor products
BNI00HA
Network blocks for EtherCAT
BNI ECT-508-005-Z015
Estimated availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Comparison list
|
|
Soon no longer available
Recommended successor product
|
|
|
|
|
|
BNI009UBNI ECT-507-005-Z0403.152,73 MYR |
BNI00HABNI ECT-508-005-Z0153.662,18 MYR |
|
| Interface | EtherCAT | EtherCAT |
|---|---|---|
| Auxiliary interfaces | 4x IO-Link | 8x IO-Link |
| Port-class | Type A | Type A |
| Output current max. | 2 A | 2 A |
| Operating voltage Ub | 18...30.2 VDC | 18...30.2 VDC |
| Connection (COM 1) | M12x1-Female, 4-pin, D-coded | M12x1-Female, 4-pin, D-coded |
| Connection (COM 2) | M12x1-Female, 4-pin, D-coded | M12x1-Female, 4-pin, D-coded |
| Connection (supply voltage IN) | 7/8"-Male, 5-pin | 7/8"-Male, 5-pin |
| Connection slots | 4x M12x1-Female, 5-pin, A-coded | 8x M12x1-Female, 5-pin, A-coded |
| Digital inputs | 8x PNP, Type 3 | 16x PNP, Type 3 |
| Digital outputs | 8x PNP | 16x PNP |
| Configurable inputs/outputs | yes | yes |
| Current sum US, sensor | 9.0 A | 9.0 A |
| Current sum UA, actuator | 9.0 A | 9.0 A |
| Housing material | Die-cast zinc, nickel-plated | Die-cast zinc, nickel-plated |

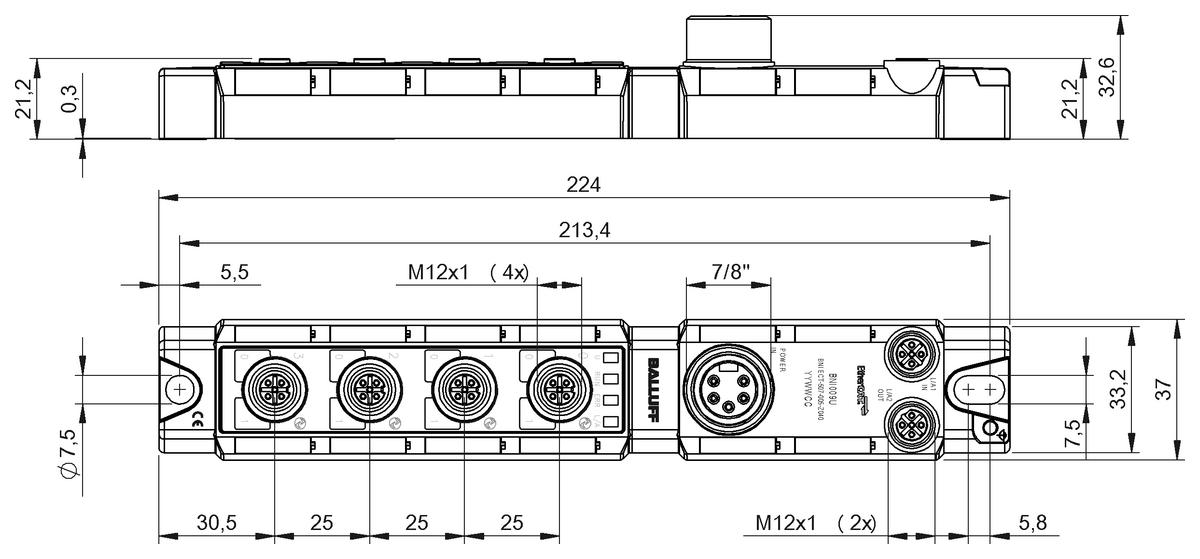

| Dimension | 37 x 32.6 x 224 mm | 68 x 37.9 x 224 mm |
| Ambient temperature | -40...70 °C | -5...70 °C |
| IP rating | IP67 | IP67 |
| IO-Link version | 1.1 | 1.1 |
