BAE012F

BAE LX-XA-BW0332B-S4

Machine Lights

Connection
Connector, M12x1-Male
Version
Machine light

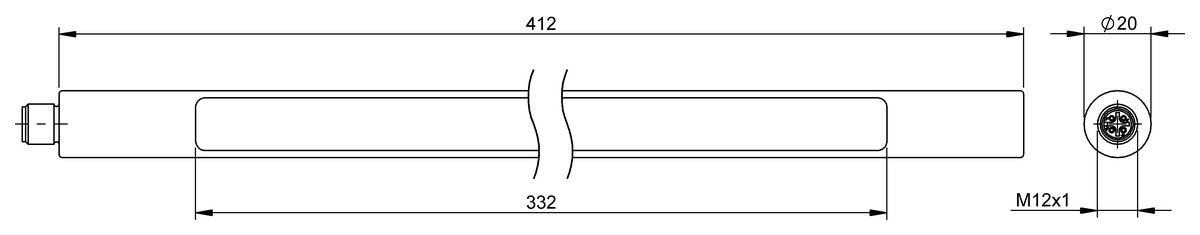

Dimension
Ø 20 x 412 mm
Rated operating voltage Ue DC
24 V
Material
Aluminium anodized, natural
Acryl glass
Efficiency class
Efficiency class F

EPREL product data sheet

Do you have any questions about the product?

Quantity scale

Contact request
Key features
Connection
Connector, M12x1-Male
Version
Machine light
Dimension
Ø 20 x 412 mm
Rated operating voltage Ue DC
24 V
Material
Aluminium anodized, natural
Acryl glass
Illumination area
332 x 16 mm
Beam angle
120 °
Light type
LED white light diffuse
Light intensity
770 lm
Color temperature
4000 K
Ambient temperature
-20...40 °C
Approval/Conformity
CE
UKCA
WEEE
cULus
IP rating
IP67
Classifications
ECLASS 10.1
27-11-03-45
ECLASS 11.0
27-11-03-45
ECLASS 12.0
27-11-03-45
ECLASS 13.0
27-11-03-45
ECLASS 14.0
27-11-03-45
ECLASS 5.1.4
27-11-03-90
ECLASS 6.2
27-11-03-90
ECLASS 8.1
27-11-90-10
ECLASS 9.0
27-11-03-45
ECLASS 9.1
27-11-03-45
ETIM 4.0
EC000348
ETIM 5.0
EC000348
ETIM 6.0
EC000348
ETIM 7.0
EC000348
ETIM 8.0
EC000348
UNSPSC 11
39000000
UNSPSC 7.0901
39000000
Energy consumption labeling
Energy consumption labeling

EPREL - European Product Database for Energy Labeling
