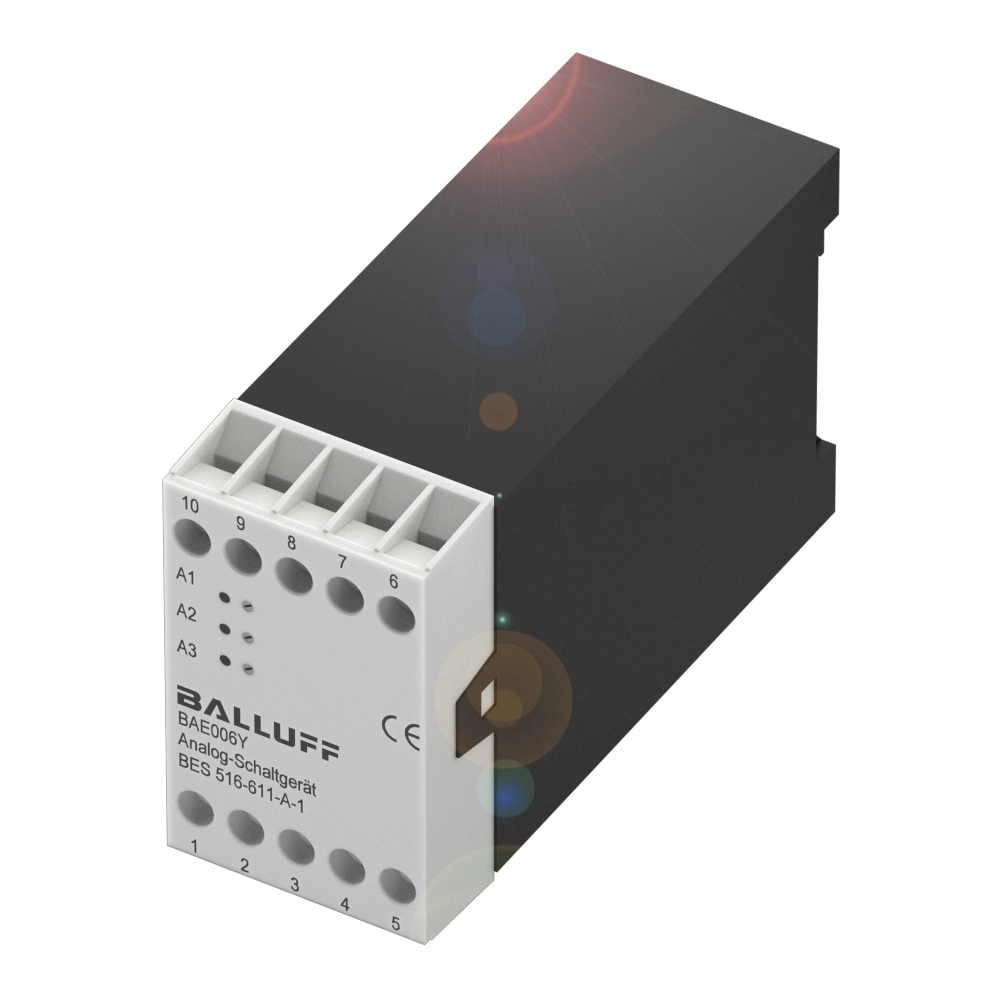

Analog switching device
Principle of operation
Signal converter
Additional text
for control cabinet installation
Connection
Screw terminals
Analog inputs
Analog, current (0…10 mA)
Analog, current (0…20 mA)
Analog, voltage (0...10 V)
Analog, current (0…20 mA)
Analog, voltage (0...10 V)
Switching output
3x PNP/NPN normally open (NO)
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
This product page contains information for Sweden – Balluff AB, Göteborg
Alternative products
|
Discontinued
|
Recommended alternative
|
|
|
|
|
|
BAE006YBES 516-611-A-1- |
BAE0070BES 516-615-PS-1-PU-05- |
|
| Principle of operation | Signal converter | Signal converter |
|---|---|---|
| Additional text | for control cabinet installation | for direct installation |
| Connection | Screw terminals | Cable |
| Analog inputs |
Analog, current (0…10 mA) Analog, current (0…20 mA) Analog, voltage (0...10 V) |
Analog, voltage (0…10 V) |
| Switching output | 3x PNP/NPN normally open (NO) | 3x PNP normally open (NO) |
| Ambient temperature | 0...50 °C | -10...70 °C |
| IP rating | IP20, IP40 | IP67 |
| Approval/Conformity |
CE WEEE |
CE UKCA WEEE |
