Inductive distance sensors

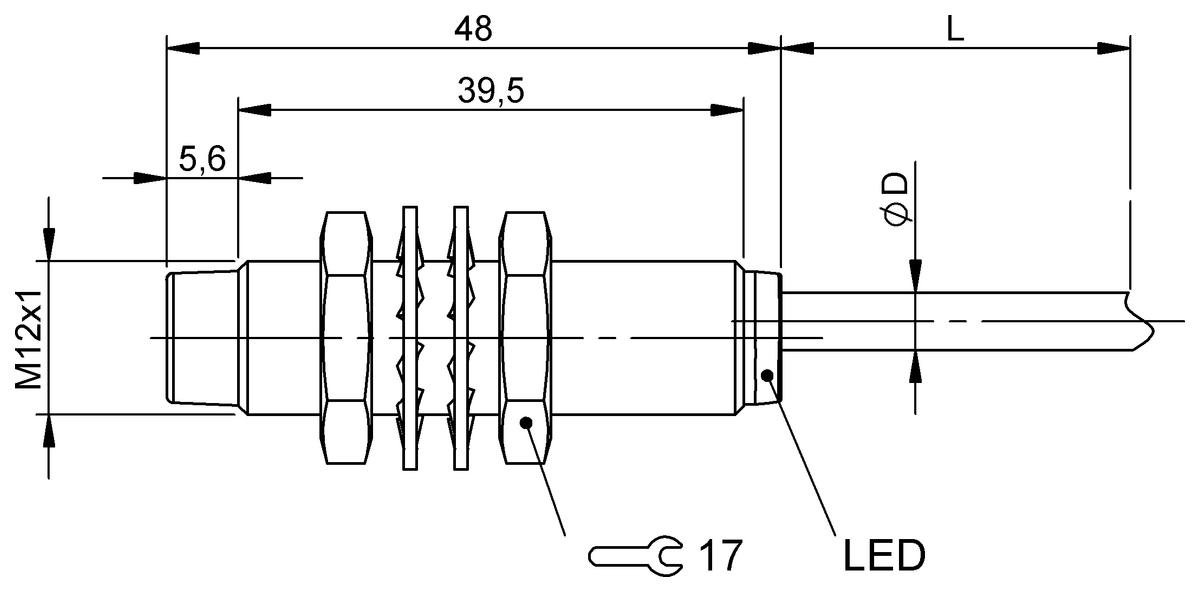

Dimension
Ø 12 x 48 mm
Style Housing
M12x1
Installation
non-flush
Range
0.2...7 mm
Analog output
Analog, current 0…20 mA
Product Features
Cable, 2.00 m, PUR
Cable, 2.00 m, PUR
Do you have any questions about the product?
This product page contains information for Sweden – Balluff AB, Göteborg
Alternative products
|
Available
|
Alternative
|
|
|
|
|
|
BAW0068BAW M12MG-IAC70G-BP02- |
BAW0067BAW M12MG-ICC70G-BP02- |
|
| Dimension | Ø 12 x 48 mm | Ø 12 x 48 mm |
|---|---|---|
| Style Housing | M12x1 | M12x1 |
| Installation | non-flush | non-flush |
| Range | 0.2...7 mm | 0.2...7 mm |
| Analog output | Analog, current 0…20 mA | Analog, current 4…20 mA |
| Output characteristic | falling on approach | falling on approach |
| Limit frequency –3 dB | 1000 Hz | 1000 Hz |
| Repeat accuracy per BWN | ±7 µm | ±7 µm |
| Non-linearity max. | ±70 µm | ±70 µm |
| Housing material | Brass, Nickel-free coated | Brass, Nickel-free coated |
| Material sensing surface | LCP | LCP |
| Connection | Cable, 2.00 m, PUR | Cable, 2.00 m, PUR |
| Operating voltage Ub | 16...30 VDC | 16...30 VDC |
| Ambient temperature | -40...80 °C | -40...80 °C |
| IP rating | IP68 | IP68 |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
