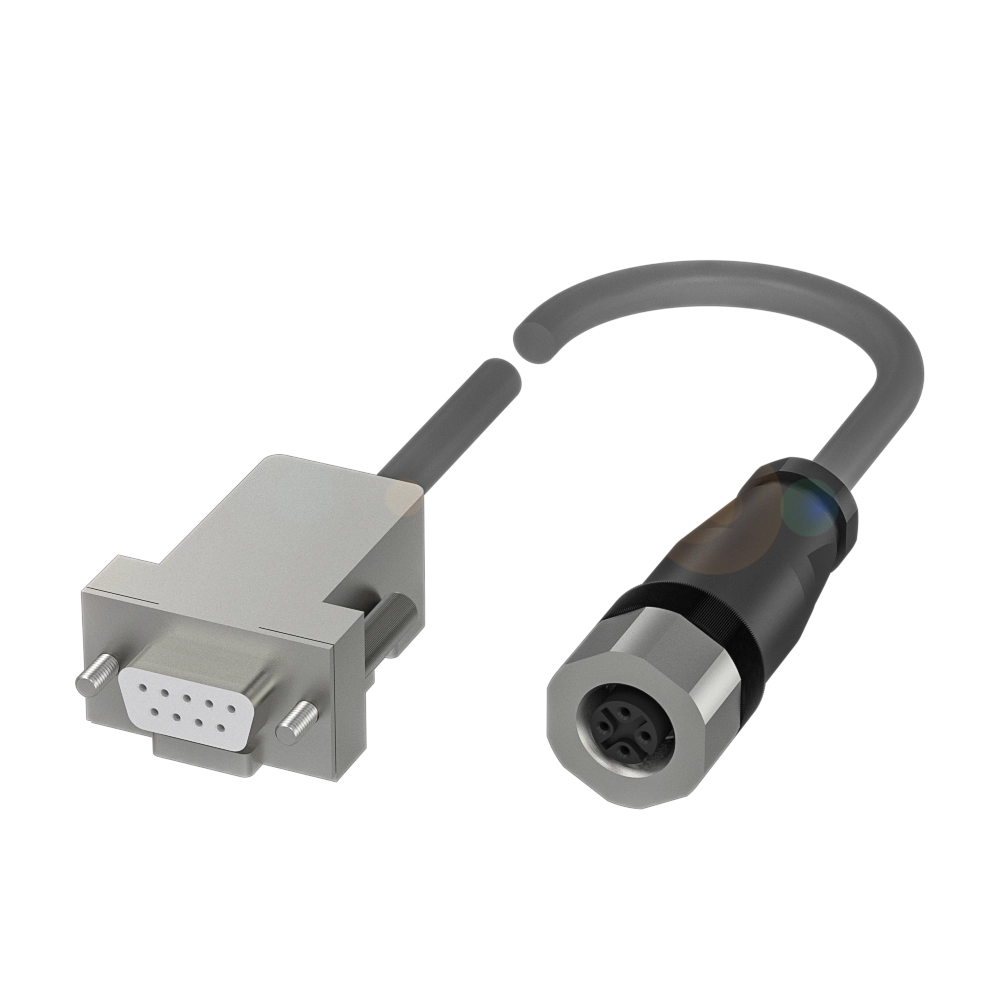

BCC00PL

BIS C-522-PVC-02

Cables for BIS products

Connection 1
D-Sub-Female, straight, 9-pin
Connection 2
M12x1-Female, straight, 5-pin, A-coded
Cable
PVC Shielded gray, 2 m
Number of conductors
4
Cable temperature, fixed routing
-30...80 °C
Do you have any questions about the product?
This product page contains information for Sweden – Balluff AB, Göteborg

Quantity scale

Contact request
Key features
Connection 1
D-Sub-Female, straight, 9-pin
Connection 2
M12x1-Female, straight, 5-pin, A-coded
Cable
PVC Shielded gray, 2 m
Number of conductors
4
Cable temperature, fixed routing
-30...80 °C
Cable temperature, flexible routing
-5...80 °C
Operating voltage Ub
125 VDC / 125 VAC
Rated current (40 °C)
4.0 A
IP rating
IP40, installed
Approval/Conformity
CE
UKCA
WEEE
Classifications
ECLASS 10.1
27-06-03-11
ECLASS 11.0
27-06-03-11
ECLASS 12.0
27-06-03-11
ECLASS 13.0
27-06-03-11
ECLASS 14.0
27-06-03-11
ECLASS 4.1
27-27-90-01
ECLASS 5.1.4
27-27-92-01
ECLASS 6.2
27-27-92-01
ECLASS 8.1
27-27-92-18
ECLASS 9.0
27-06-03-11
ECLASS 9.1
27-06-03-11
ETIM 4.0
EC001855
ETIM 5.0
EC001855
ETIM 6.0
EC001855
ETIM 7.0
EC001855
ETIM 8.0
EC001855
UNSPSC 11
26121604
UNSPSC 7.0901
26121604
Energy consumption labeling
Energy consumption labeling

EPREL - European Product Database for Energy Labeling
