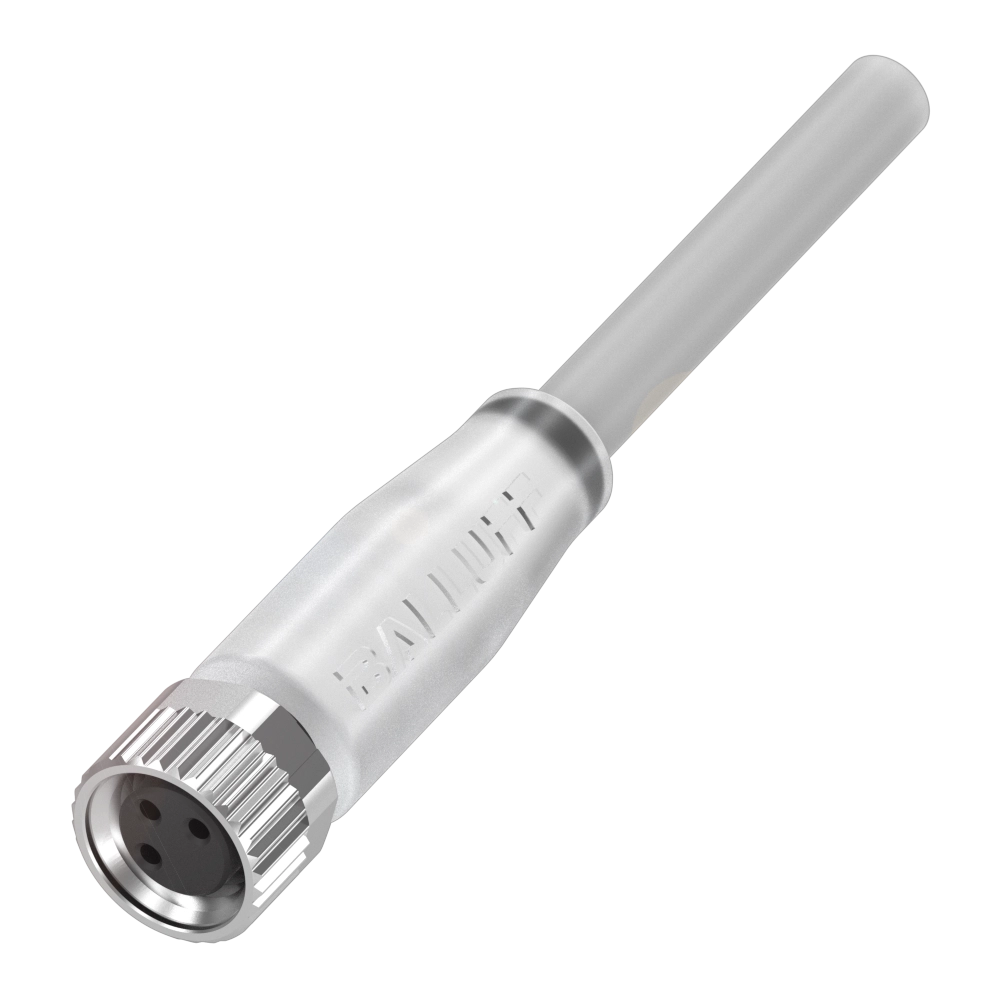

Single-ended cordsets
Connection
M8x1-Female, straight, 3-pin, A-coded
Power indicator
Green LED
Function indicator (Pin 4)
LED yellow
Switching output
PNP normally open (NO)
Cable
PUR gray, 5 m, drag chain compatible
Do you have any questions about the product?
This product page contains information for Sweden – Balluff AB, Göteborg
Alternative products
|
Discontinued
|
Alternative
|
|
|
|
|
|
BCC0AWZBCC M313-0000-10-004-PX8334-050- |
BCC083KBCC M313-0000-10-001-PX8334-050-C003- |
|
| Connection | M8x1-Female, straight, 3-pin, A-coded | M8x1-Female, straight, 3-pin, A-coded |
|---|---|---|
| Power indicator | Green LED | - |
| Function indicator (Pin 4) | LED yellow | - |
| Switching output | PNP normally open (NO) | - |
| Cable | PUR gray, 5 m, drag chain compatible | PUR gray, 5 m, drag chain compatible |
| Number of conductors | 3 | 3 |
| Conductor cross-section | 0.34 mm² | 0.34 mm² |
| Cable temperature, fixed routing | -50...90 °C | -50...90 °C |
| Cable temperature, flexible routing | -25...90 °C | -25...90 °C |
| Operating voltage Ub | 30 VDC | 60 VDC / 60 VAC |
| Rated current (40 °C) | 4.0 A | 4.0 A |
| IP rating | IP67 | IP67, IP69K |
| Approval/Conformity |
CE cULus WEEE |
CE cULus WEEE |
