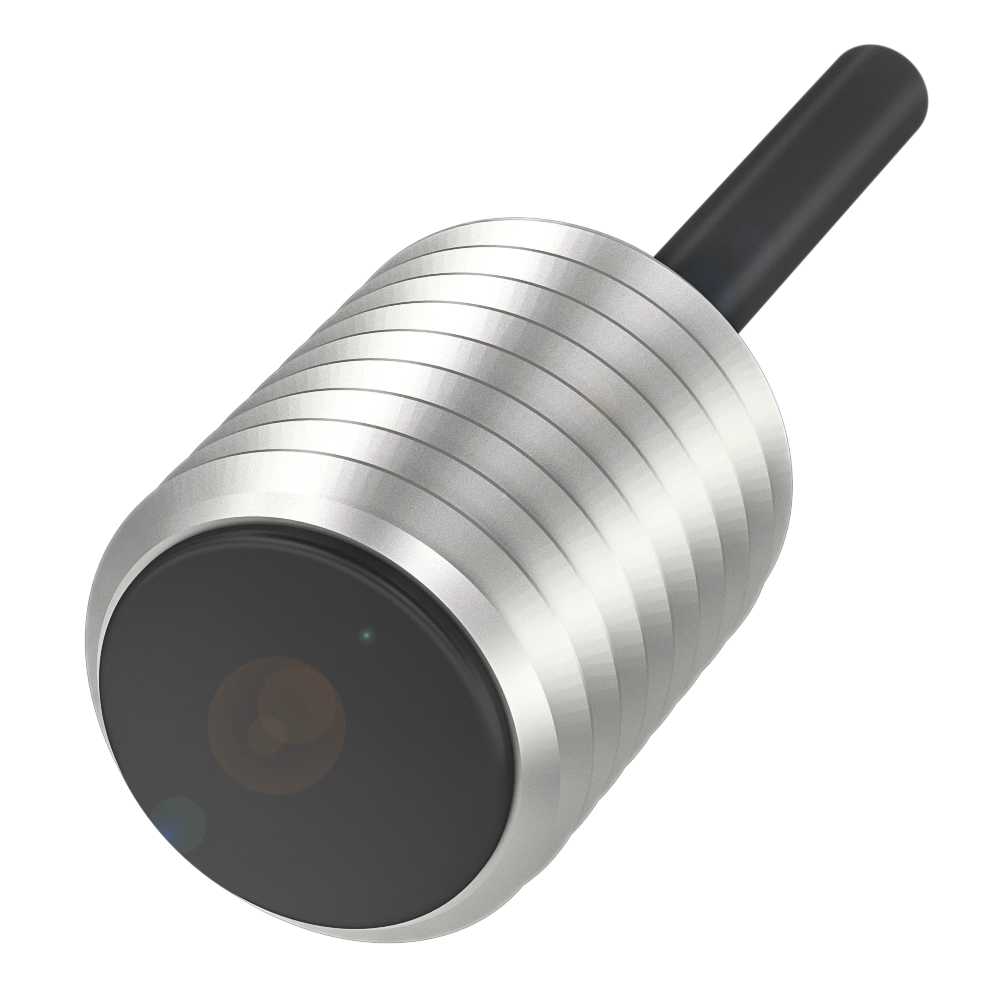

Inductive proximity switches and proximity sensors
Dimension
Ø 8 x 10 mm
Style Housing
M8x1
Installation
for flush mounting
Range
2 mm
Switching output
NPN normally closed (NC)
Do you have any questions about the product?
This product page contains information for Sweden – Balluff AB, Göteborg
Alternative products
|
Discontinued
|
Alternative
|
Further alternative
|
|
|
|
|
|
|
BES026PBES M08EA-NOC20B-EP02- |
BES00CMBES M08EF-NOC20B-BP02-003- |
BES026UBES M08EA-NSC15B-EP02- |
|
| Dimension | Ø 8 x 10 mm | Ø 8 x 40 mm | Ø 8 x 10 mm |
|---|---|---|---|
| Style Housing | M8x1 | M8x1 | M8x1 |
| Installation | for flush mounting | for flush mounting | for flush mounting |
| Range | 2 mm | 2 mm | 1.5 mm |
| Switching output | NPN normally closed (NC) | NPN normally closed (NC) | NPN normally open (NO) |
| Switching frequency | 3000 Hz | 5000 Hz | 3000 Hz |
| Housing material | Stainless steel | Stainless steel | Stainless steel |
| Material sensing surface | PBT | PBT | PBT |
| Connection | Cable, 2.00 m, PUR | Cable, 2.00 m, PUR | Cable, 2.00 m, PUR |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -40...85 °C | -25...70 °C |
| IP rating | IP67 | IP68 | IP67 |
| Approval/Conformity |
CE cULus EAC |
CE cULus WEEE |
CE UKCA cULus WEEE |
