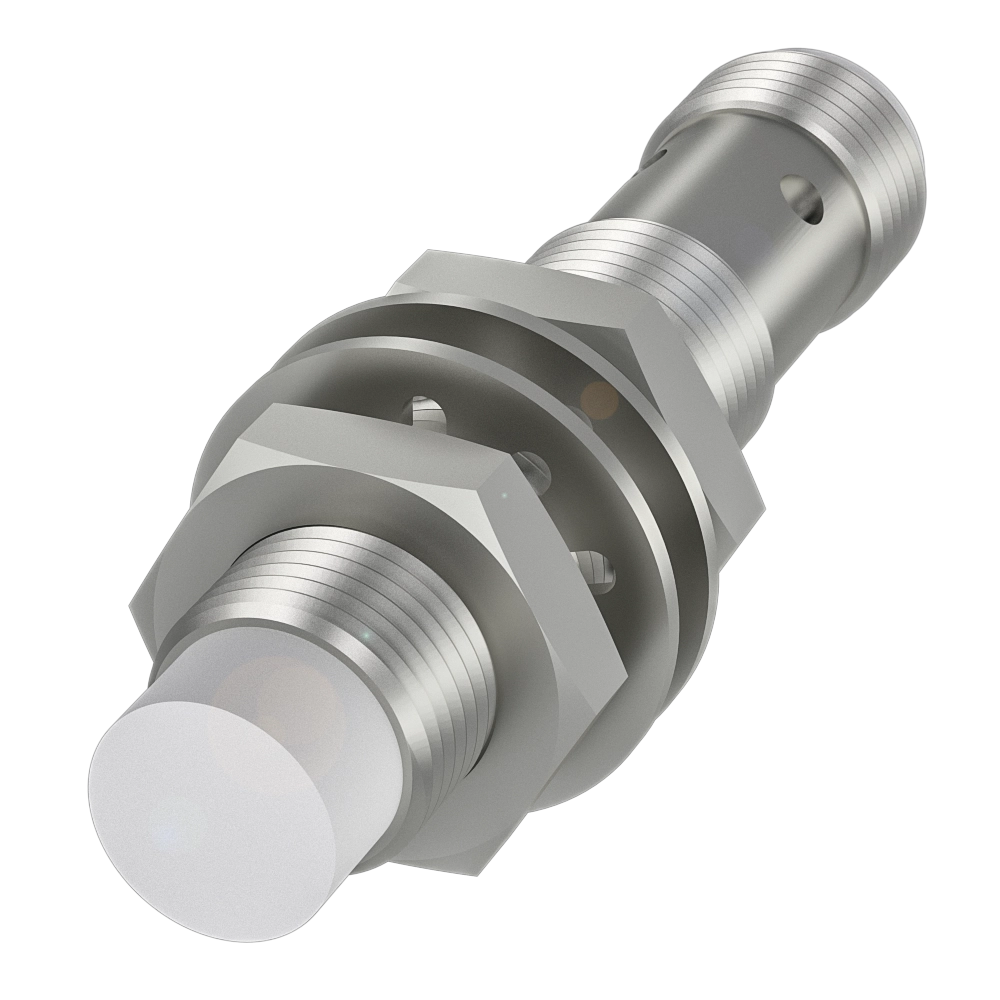

Inductive proximity switches and proximity sensors

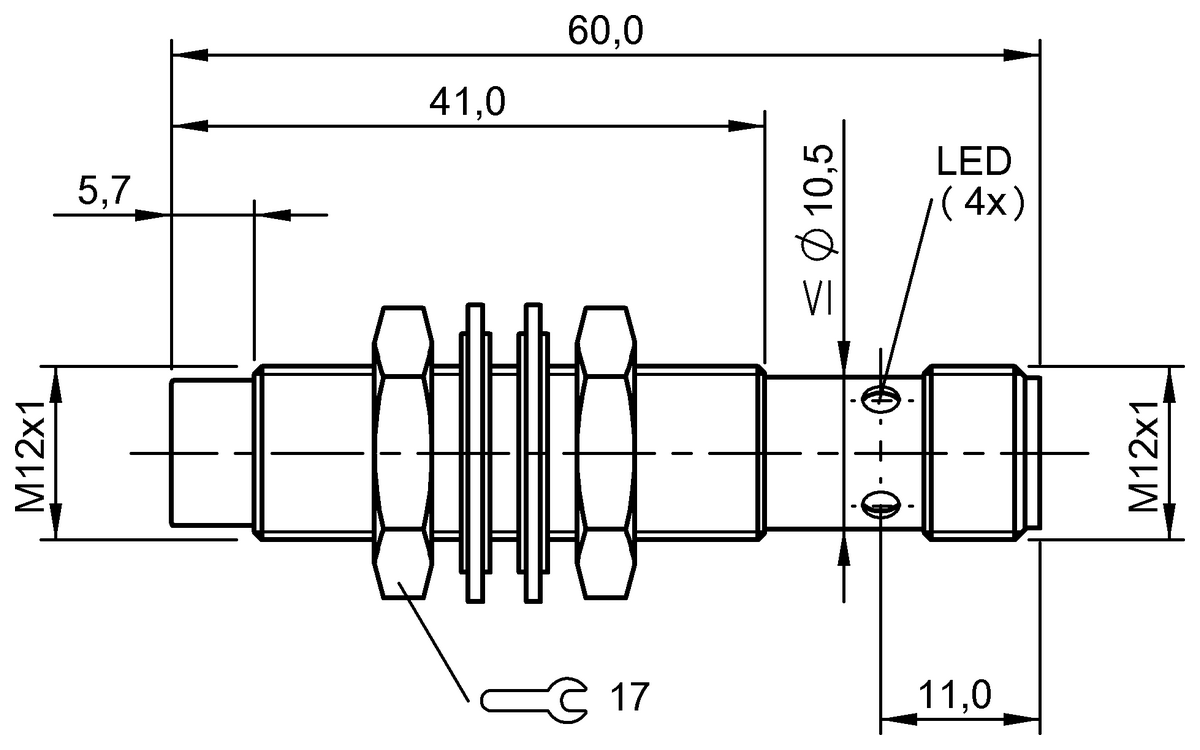

Dimension
Ø 12 x 60 mm
Style Housing
M12x1
Installation
non-flush
Range
7 mm
Switching output
PNP normally open (NO)
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
This product page contains information for Sweden – Balluff AB, Göteborg
Alternative products
|
Discontinued
|
Recommended alternative
|
Further alternative
|
|
|
|
|
|
|
BES02WTBES M12MF1-PSC70F-S04G- |
BES004NBES M12MG-PSC80F-S04G- |
BES05KWBES M12MI-PSC80E-S04G-W08- |
|
| Dimension | Ø 12 x 60 mm | Ø 12 x 60 mm | Ø 12 x 65 mm |
|---|---|---|---|
| Style Housing | M12x1 | M12x1 | M12x1 |
| Installation | non-flush | non-flush | non-flush |
| Range | 7 mm | 8 mm | 8 mm |
| Switching output | PNP normally open (NO) | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 400 Hz | 1000 Hz | 2000 Hz |
| Housing material | Brass, Chrome-plated | Brass, Nickel-free coated | Brass, PTFE coated |
| Material sensing surface | PBT | PBT | PBT |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 3-pin |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C | -40...85 °C |
| IP rating | IP67 | IP68 | - |
| Approval/Conformity |
EAC CE cULus WEEE |
CE UKCA cULus WEEE |
CE UKCA WEEE cULus |
