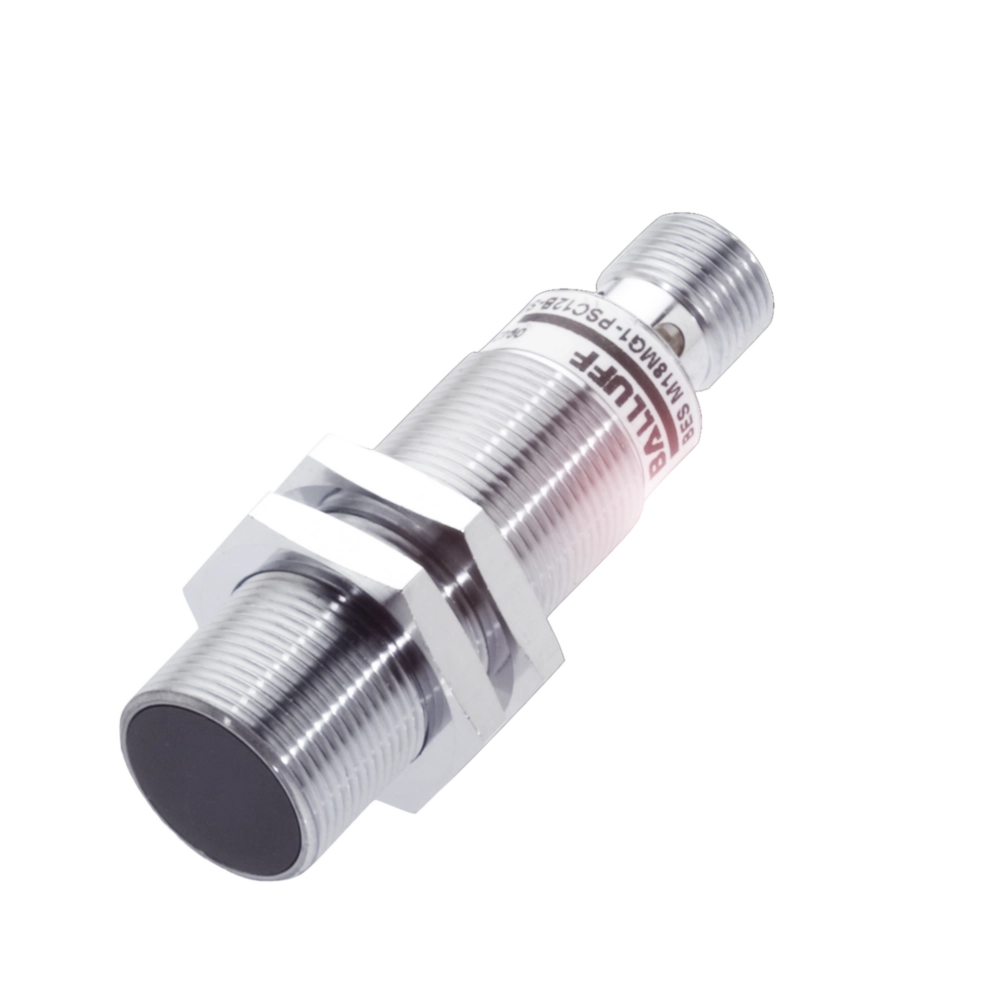

Inductive proximity switches and proximity sensors

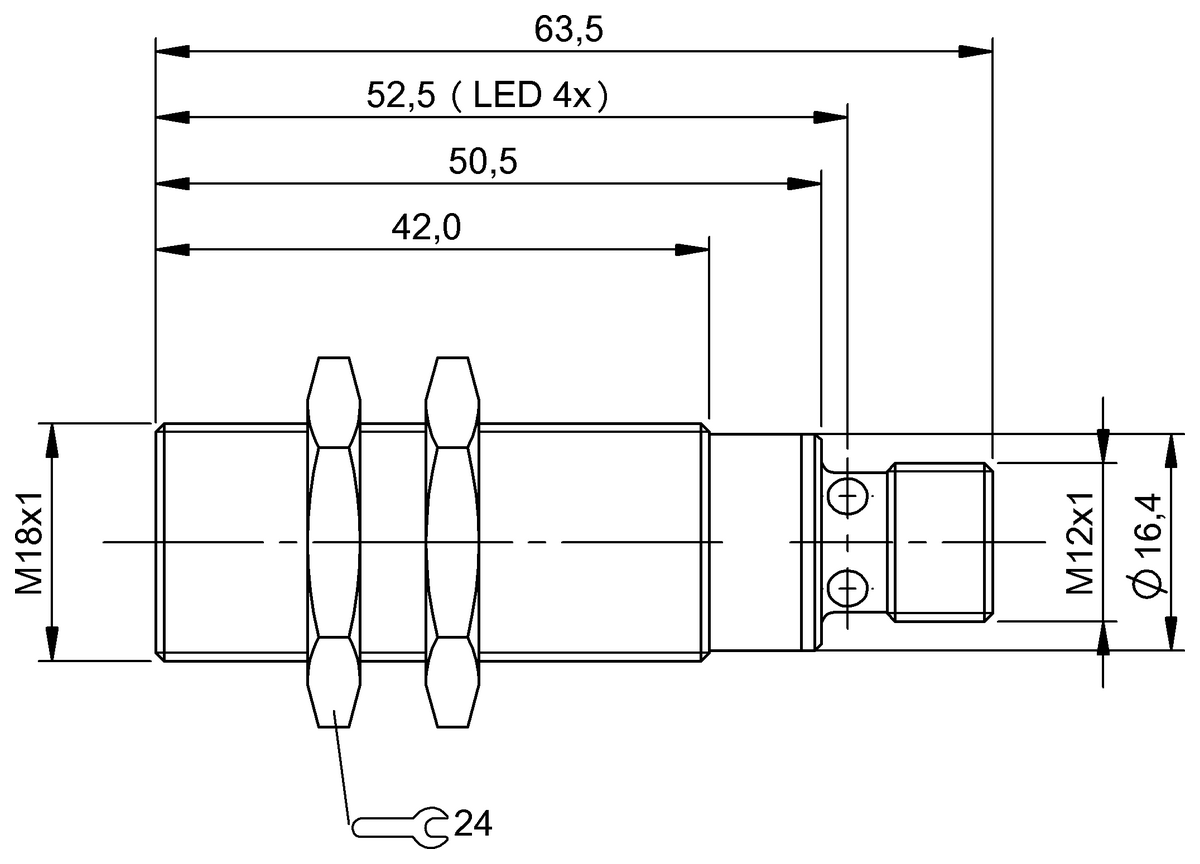

Dimension
Ø 18 x 63.5 mm
Style Housing
M18x1
Installation
quasi-flush
Range
12 mm
Switching output
NPN normally open (NO)
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
This product page contains information for Sweden – Balluff AB, Göteborg
Alternative products
|
Discontinued
|
Recommended alternative
|
|
|
|
|
|
BES02Y8BES M18MG1-NSC12B-S04G- |
BES05EWBES M18MI-NSC12B-S04G- |
|
| Dimension | Ø 18 x 63.5 mm | Ø 18 x 66 mm |
|---|---|---|
| Style Housing | M18x1 | M18x1 |
| Installation | quasi-flush | - |
| Range | 12 mm | 12 mm |
| Switching output | NPN normally open (NO) | NPN normally open (NO) |
| Switching frequency | 500 Hz | 550 Hz |
| Housing material | Brass, Chrome-plated | Brass, Nickel-free coated |
| Material sensing surface | PBT | PBT |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 3-pin |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C |
| IP rating | IP67 | IP68, according to BWN Pr 20 |
| Approval/Conformity |
CE EAC cULus WEEE |
CE UKCA cULus WEEE |
