Inductive factor 1 sensors

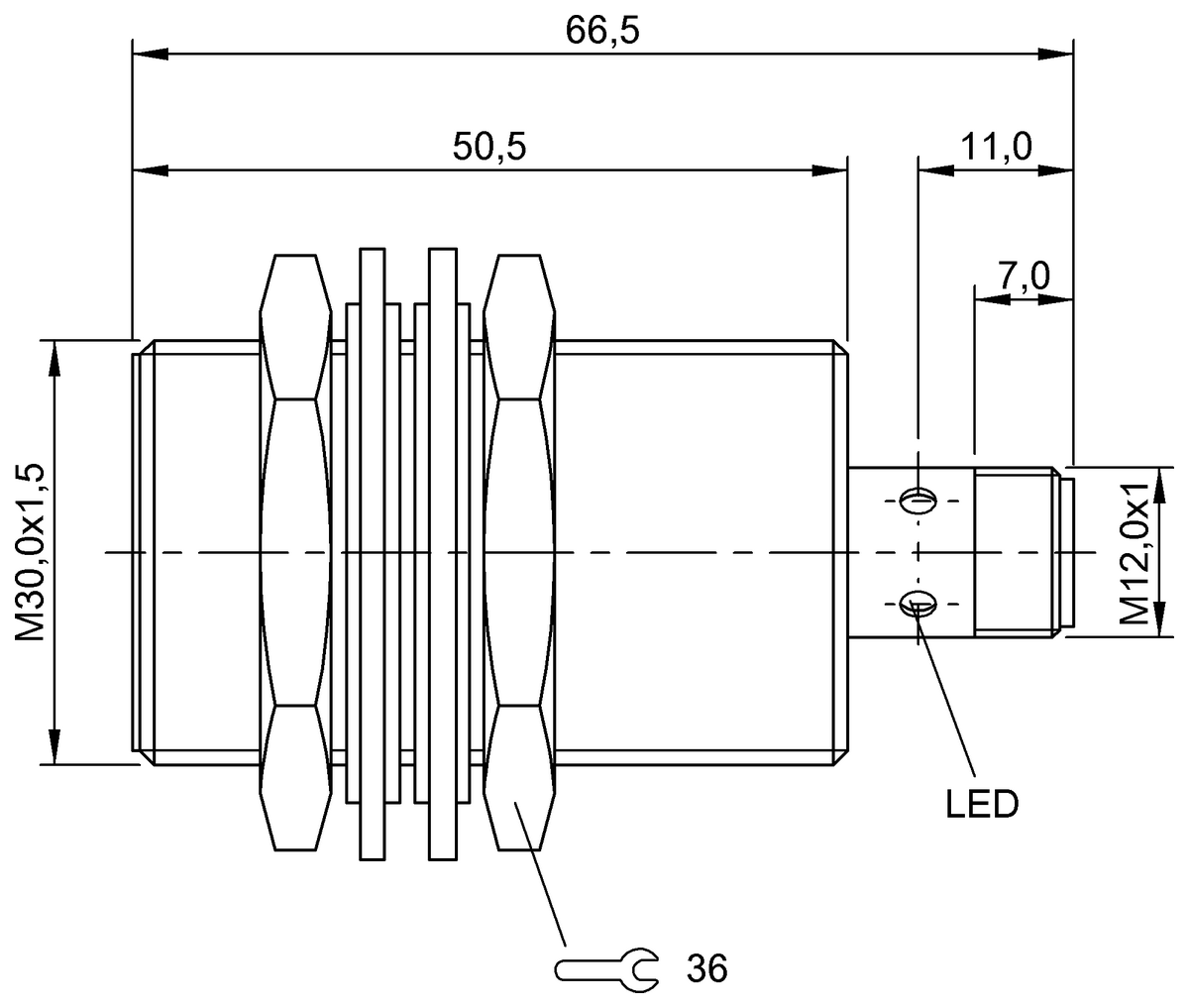

Dimension
Ø 30 x 65.5 mm
Style Housing
M30x1.5
Installation
for flush mounting
Range
15 mm
Switching output
PNP normally open (NO)
Do you have any questions about the product?
This product page contains information for Sweden – Balluff AB, Göteborg
Alternative products
|
Discontinued
|
Alternative
|
|
|
|
|
|
BES03YYBES M30MI-PSC15A-S04G-W- |
BES0454BES M30MI-PSC15A-S04G-W12- |
|
| Dimension | Ø 30 x 65.5 mm | Ø 30 x 65 mm |
|---|---|---|
| Style Housing | M30x1.5 | M30x1.5 |
| Installation | for flush mounting | for flush mounting |
| Range | 15 mm | 15 mm |
| Switching output | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 250 Hz | 750 Hz |
| Housing material | Brass, PTFE coated | Brass, PTFE coated |
| Material sensing surface | PPS/LCP, GF40 | PPS |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 3-pin |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C |
| Magnetic field immune | magnetic field immune (AC/DC) | magnetic field immune (AC/DC) |
| IP rating | IP67 | IP67 |
| Approval/Conformity |
cULus CE |
CE cULus WEEE |
| Additional features |
Factor 1 Weld immune |
Factor 1 Weld immune |
