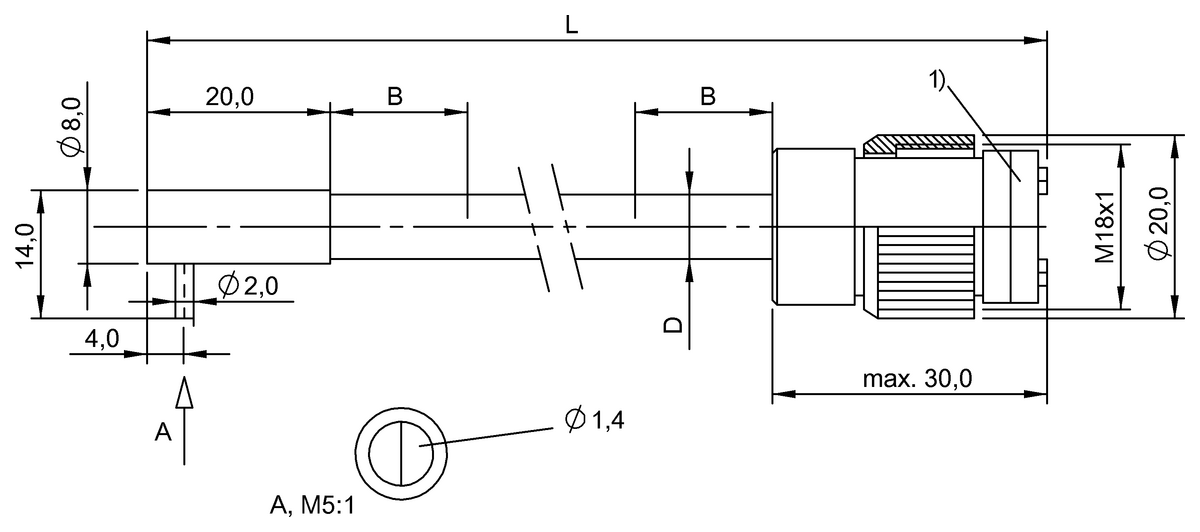

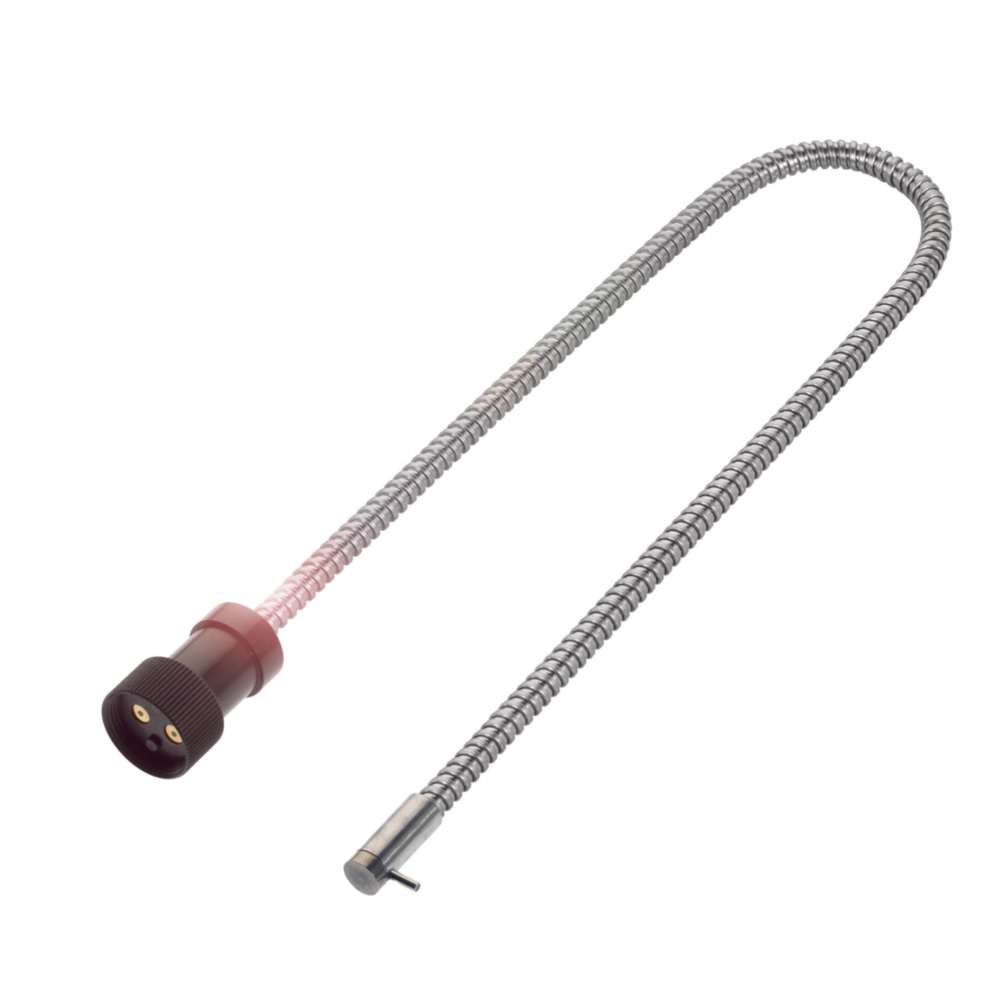

Cylindrical glass fibers with straight and angled optics
Version
Ø 2, 90° optics
Use
for fiber optic base units BFB
Reference base unit
BFB M18M-011-P-S4
Fiber type material
Glass
Cable length L
1 m
Recommended alternative
BFO003M
Fiber optic sensors
BFO 18A-XAF-SMG-15-0,5
Availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
This product page contains information for Sweden – Balluff AB, Göteborg
Alternative products
|
Discontinued
|
Recommended alternative
|
Further alternative
|
Further alternative
|
|
|
|
|
|
|
|
BFO003NBFO 18A-XAF-SMG-15-1- |
BFO003MBFO 18A-XAF-SMG-15-0,5- |
BFO003JBFO 18A-XAF-MZG-15-1- |
BFO003HBFO 18A-XAF-MZG-15-0,5- |
|
| Version | Ø 2, 90° optics | Ø 2, 90° optics | Ø 2, 90° optics | Ø 2, 90° optics |
|---|---|---|---|---|
| Use | for fiber optic base units BFB | for fiber optic base units BFB | for fiber optic base units BFB | for fiber optic base units BFB |
| Reference base unit | BFB M18M-011-P-S4 | BFB M18M-011-P-S4 | BFB M18M-011-P-S4 | BFB M18M-011-P-S4 |
| Fiber type material | Glass | Glass | Glass | Glass |
| Cable length L | 1 m | 0.5 m | 1 m | 0.5 m |
| Material jacket | Silicone, on stainless steel | Silicone, on stainless steel | Stainless steel | Stainless steel |
| Range | 10 mm | 10 mm | 10 mm | 10 mm |
| Ambient temperature | -40...150 °C | -40...150 °C | -20...250 °C | -20...250 °C |
| Material | Stainless steel | - | - | - |
| Active surface, fibers | Bundle Ø 1.4 mm | Bundle Ø 1.4 mm | Bundle Ø 1.4 mm | Bundle Ø 1.4 mm |
| Active surface, fiber arrangement | Segmented bundle | Segmented bundle | Segmented bundle | Segmented bundle |
| IP rating | IP67 | IP67 | IP50 | IP50 |
