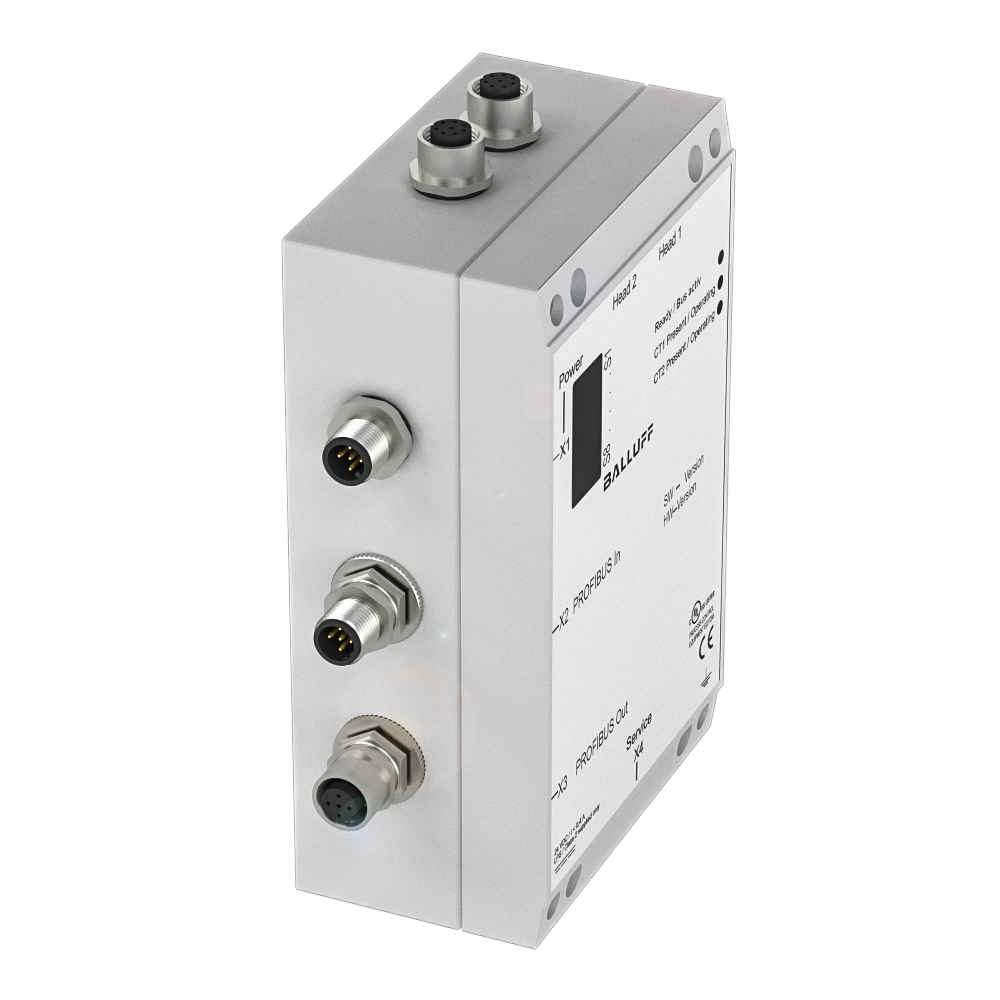

Evaluation units for the LF range (125 kHz)
Product group
LF (125 kHz)
Interface
Profibus DP Slave galvanically isolated
Supported RFID technologies
LF 125 kHz (BIS L)
Number of connectable R/W heads / antennas
2
Operating voltage Ub
19.2...28.8 VDC
Put together your individual RFID system, tailored to your needs and areas of application.
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
This product page contains information for Sweden – Balluff AB, Göteborg
Alternative products
|
Soon no longer available
|
Recommended alternative
|
|
|
|
|
|
BIS00ECBIS L-6022-019-050-03-ST14- |
BIS00T3BIS V-6102-019-C001- |
|
| Product group | LF (125 kHz) | Multi-Frequency Processor |
|---|---|---|
| Interface | Profibus DP Slave galvanically isolated | Profibus DP Slave galvanically isolated |
| Supported RFID technologies | LF 125 kHz (BIS L) |
LF 125 kHz (BIS VL) HF 13.56 MHz (BIS VM) UHF 860...930 MHz (BIS VU) |
| Number of connectable R/W heads / antennas | 2 | 4 |
| Operating voltage Ub | 19.2...28.8 VDC | 24 V DC SELV/PELV |
| Housing material | Aluminium, Die casting | Zinc, Die casting |
| Ambient temperature | 0...60 °C | 0...60 °C |
| IP rating | IP65, with connector | IP65, with connector |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
| Connection |
Male, 5-pin, B-coded M12x1-Female, 5-pin, B-coded Male, 5-pin |
M12x1-Male, 5-pin, B-coded M12x1-Female, 5-pin, B-coded 7/8"-Male, 5-pin |
