Diffuse sensors
Series
18M

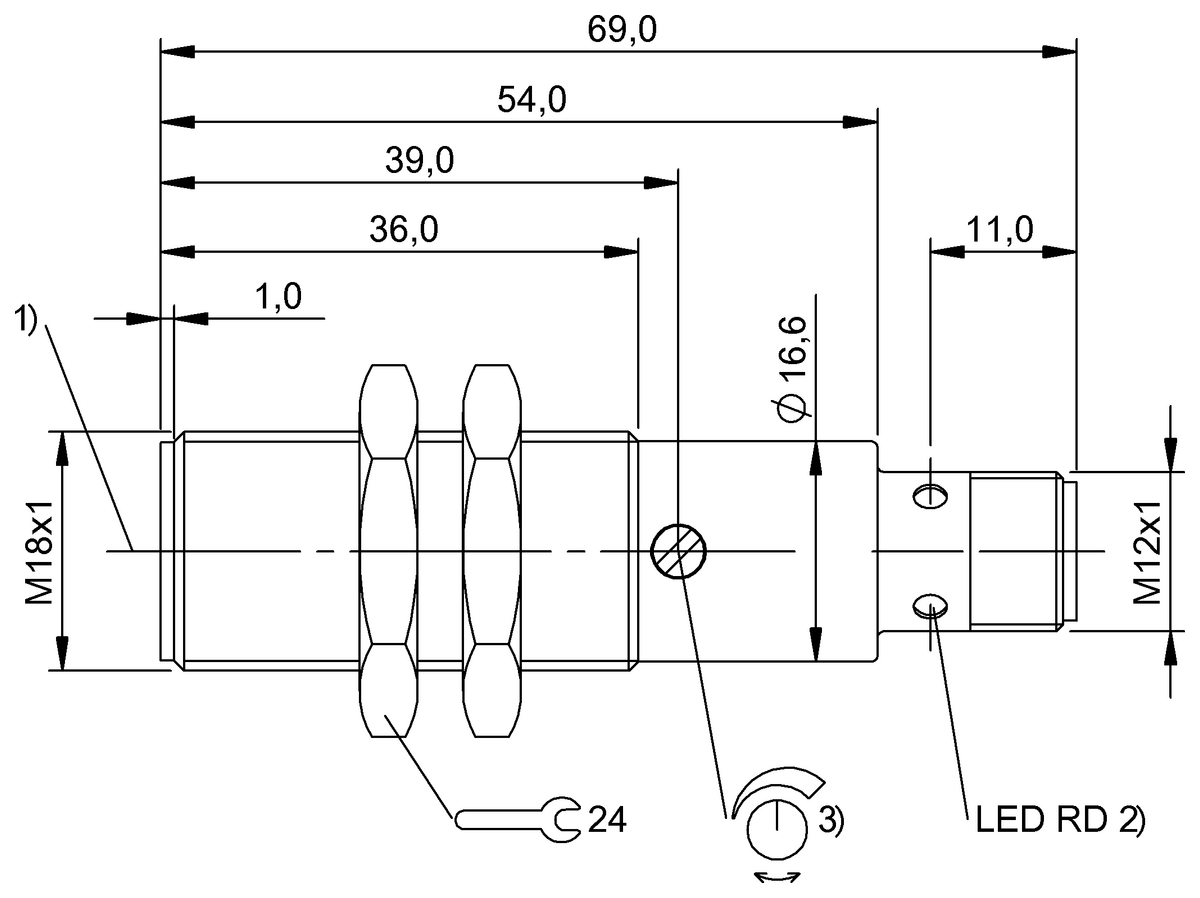

Dimension
Ø 18 x 69 mm
Interface
PNP normally open (NO)
PNP normally closed (NC)
PNP normally closed (NC)
Principle of operation
Photoelectric sensor
Principle of optical operation
Diffuse sensor, energetic
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
This product page contains information for Sweden – Balluff AB, Göteborg
Alternative products
|
Discontinued
|
Recommended alternative
|
Recommended alternative
|
|
|
|
|
|
|
BOS0049BOS 18M-PA-1PD-E5-C-S4- |
BOS01CFBOS 18M-PA-RD20-S4- |
BFB0009BFB M18M-001-P-S4- |
|
| Series | 18M | 18M | 18M |
|---|---|---|---|
| Dimension | Ø 18 x 69 mm | Ø 18 x 75 mm | Ø 18 x 75 mm |
| Interface |
PNP normally open (NO) PNP normally closed (NC) |
PNP normally open (NO) PNP normally closed (NC) |
2x PNP normally open/normally closed (NO/NC) |
| Principle of operation | Photoelectric sensor | Photoelectric sensor | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, energetic | Diffuse sensor, energetic | - |
| Beam characteristic | Divergent | Divergent | - |
| Light type | Infrared | LED, red light | LED, red light |
| Range | 0...400 mm | 0...600 mm | - |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin | Connector-Male, 4-pin |
| Housing material | Brass, nickel-plated | Brass, nickel-plated | Brass, nickel-plated |
| Material sensing surface | PMMA | Glass, anti-glare | - |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
CE UKCA cULus WEEE |
