Diffuse sensors
Series
15K
Dimension

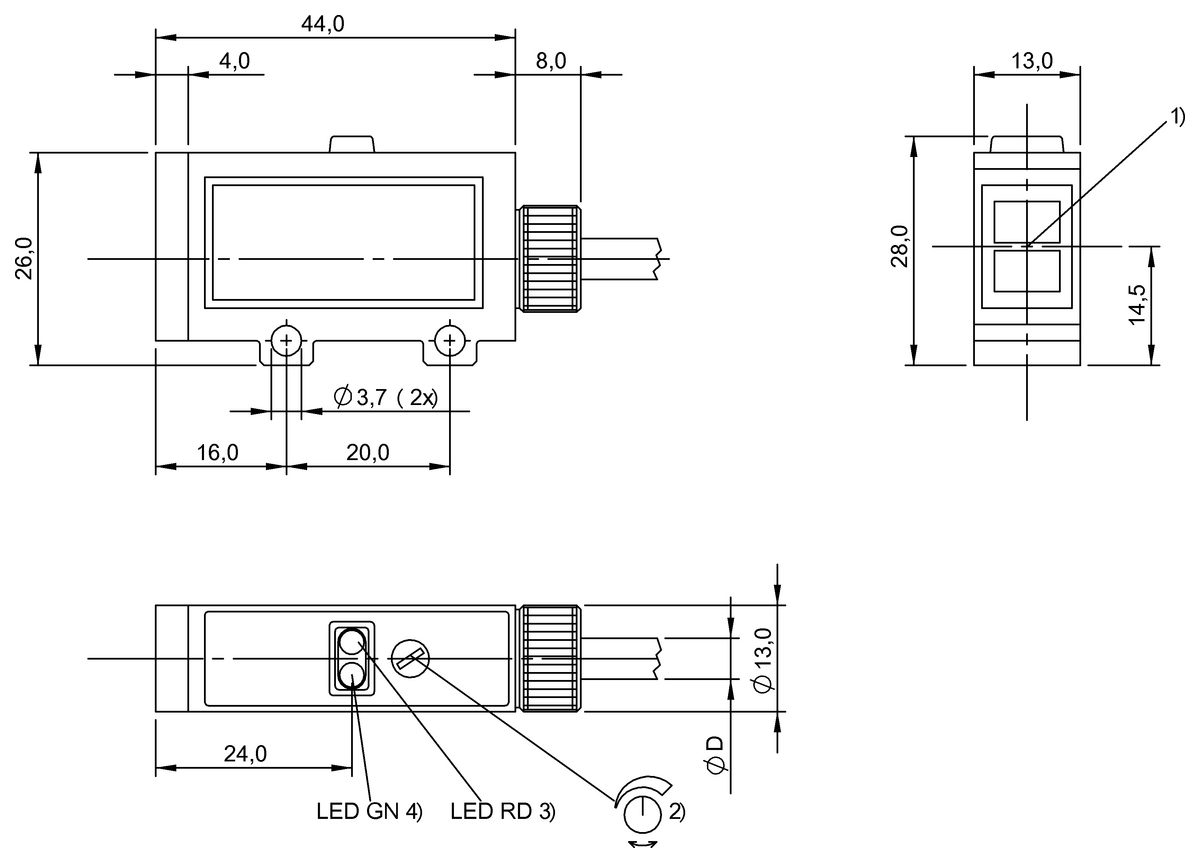

13 x 28 x 52 mm
Interface
PNP/NPN normally open/normally closed (NO/NC)
Input function
Light-on/dark-on
Switching output PNP/NPN
Switching output PNP/NPN
Principle of operation
Photoelectric sensor
Recommended alternative
BOS0123
Diffuse sensors
BOS 5K-PS-ID10-02
Availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
This product page contains information for Sweden – Balluff AB, Göteborg
Alternative products
|
Discontinued
|
Discontinued
Recommended alternative
|
|
|
|
|
|

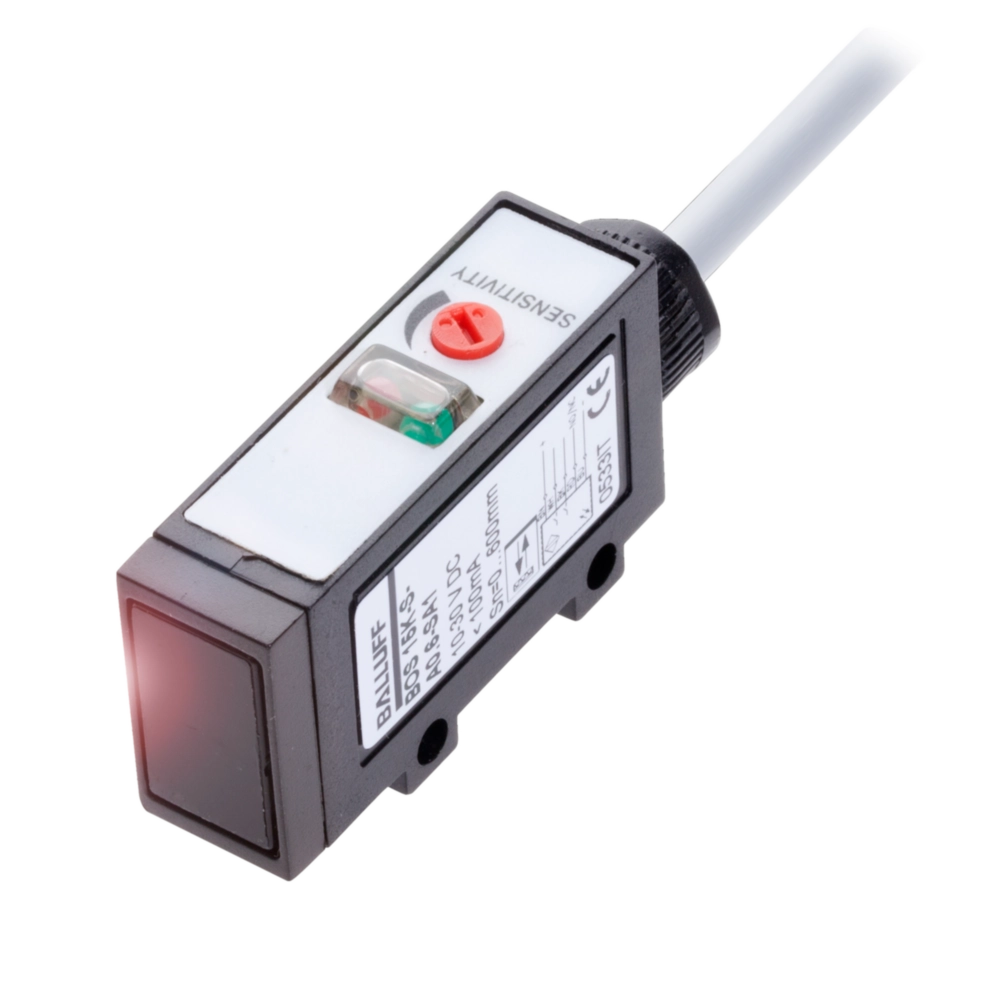

BOS00FUBOS 15K-S-C50-02- |
BOS0123BOS 5K-PS-ID10-02- |
|
| Series | 15K | 5K |
|---|---|---|
| Dimension | 13 x 28 x 52 mm | 10.8 x 32.7 x 19.5 mm |
| Interface | PNP/NPN normally open/normally closed (NO/NC) | PNP normally open (NO) |
| Input function |
Light-on/dark-on Switching output PNP/NPN |
- |
| Principle of operation | Photoelectric sensor | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, energetic | Diffuse sensor, energetic |
| Beam characteristic | Divergent | Divergent |
| Light type | Infrared | Infrared |
| Range | 1...500 mm | 0...900 mm |
| Connection | Cable, 2.00 m, PVC | Cable, 2.00 m, PVC |
| Housing material | ABS |
PC PBT |
| Material sensing surface | PMMA | PMMA |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
CE WEEE |
cULus CE WEEE UKCA |
