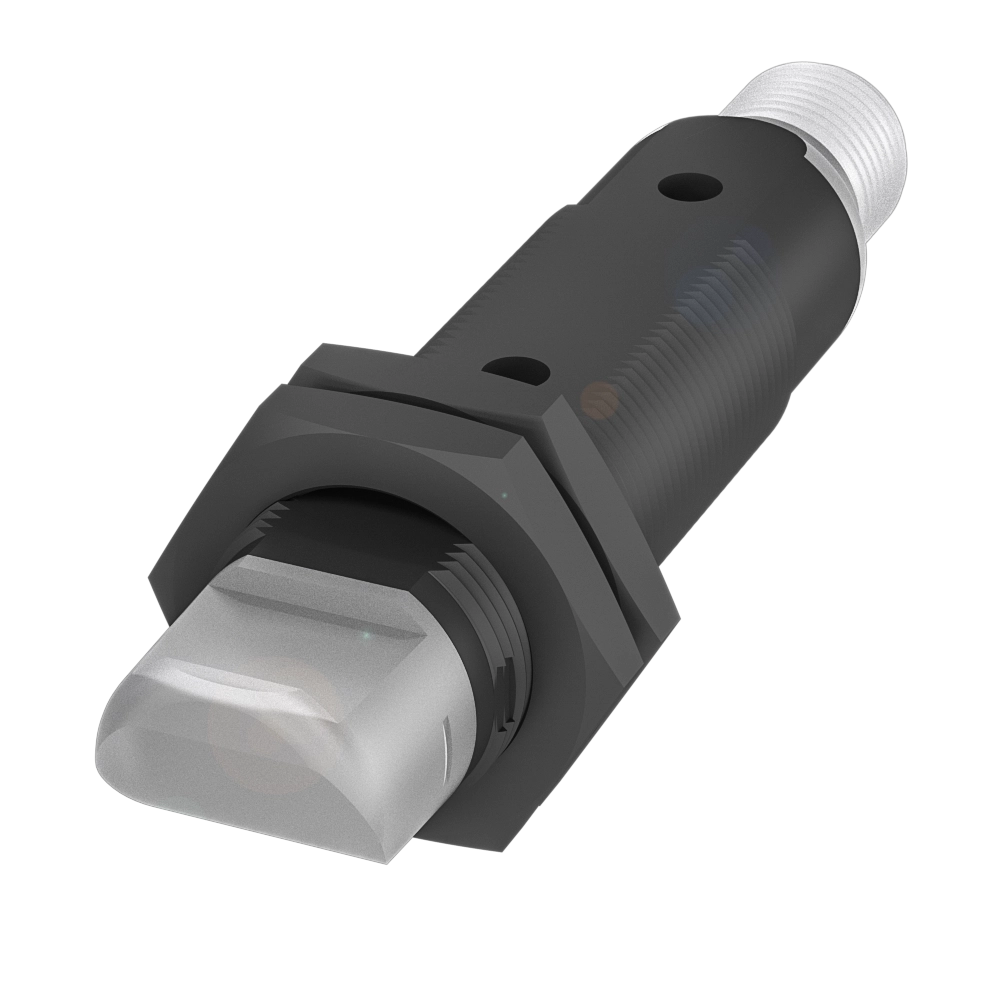

Diffuse sensors
Series
18KW

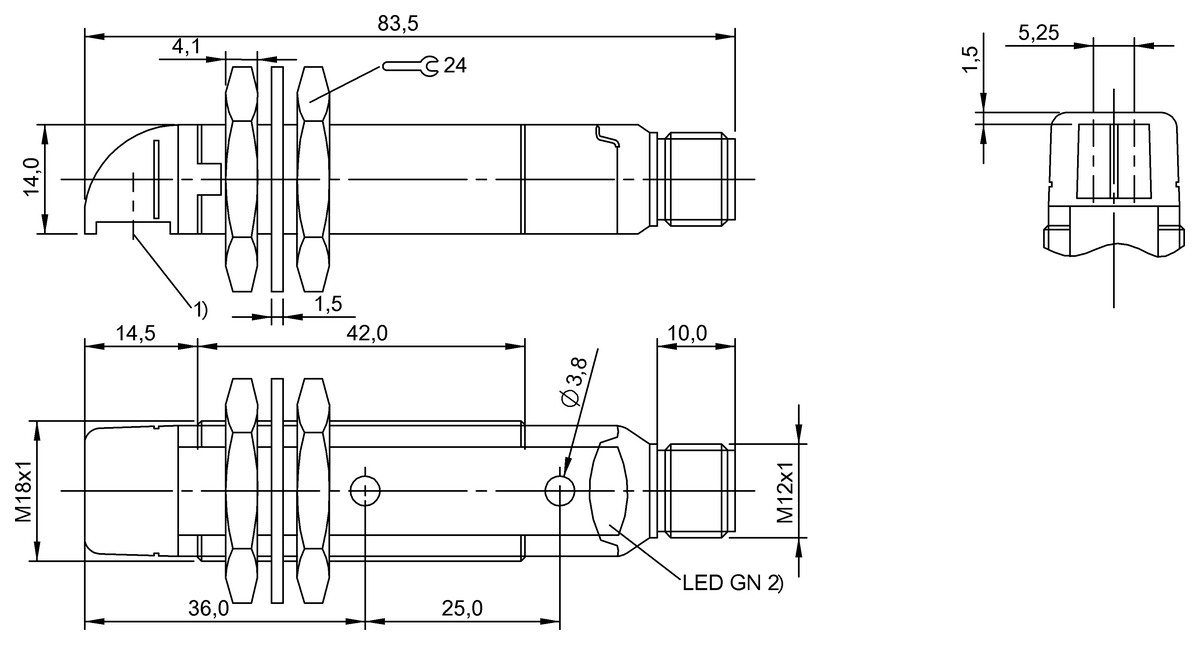

Dimension
Ø 18 x 93.5 mm
Interface
NPN normally open (NO)
NPN normally closed (NC)
NPN normally closed (NC)
Principle of operation
Photoelectric sensor
Principle of optical operation
Diffuse sensor, energetic
Do you have any questions about the product?
This product page contains information for Sweden – Balluff AB, Göteborg
Alternative products
|
Discontinued
|
Alternative
|
|
|
|
|
|
BOS00LEBOS 18KW-NA-1XA-S4-C- |
BOS00L6BOS 18KW-NA-1PD-S4-C- |
|
| Series | 18KW | 18KW |
|---|---|---|
| Dimension | Ø 18 x 93.5 mm | Ø 18 x 93.5 mm |
| Interface |
NPN normally open (NO) NPN normally closed (NC) |
NPN normally open (NO) NPN normally closed (NC) |
| Principle of operation | Photoelectric sensor | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, energetic | Diffuse sensor, energetic |
| Beam characteristic | Divergent | Divergent |
| Light type | LED infrared | LED infrared |
| Range | 0...80 mm | 0...400 mm |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin |
| Housing material | PBT | PBT |
| Material sensing surface | PMMA | PMMA |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
CE cULus EAC WEEE |
CE UKCA cULus WEEE |
| Trademark | Global | Global |
