Retroreflective sensors
Series
18M

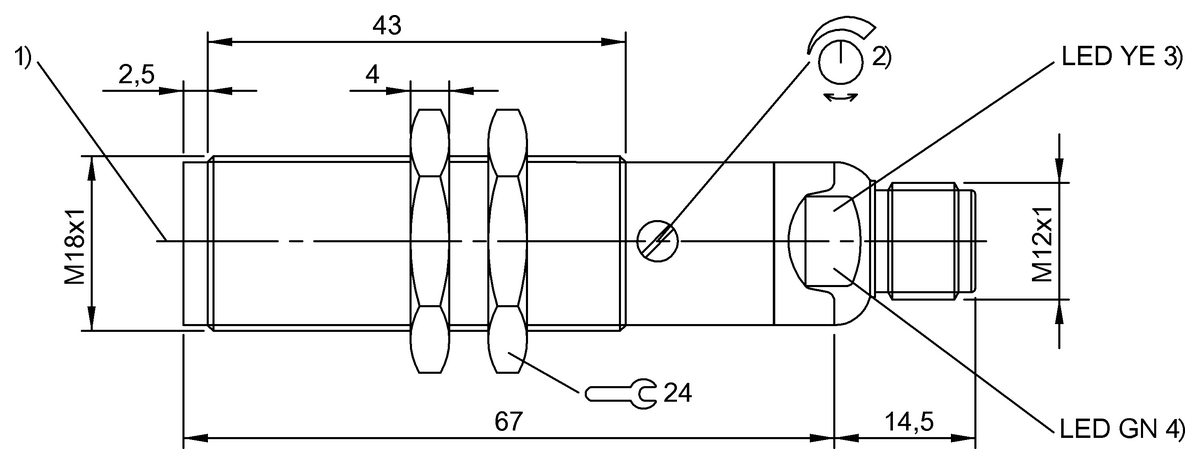

Dimension
Ø 18 x 81.5 mm
Interface
NPN normally open (NO)
NPN normally closed (NC)
NPN normally closed (NC)
Principle of operation
Photoelectric sensor
Principle of optical operation
Retroreflective sensor
Recommended alternative
BOS01R5
Retroreflective sensors
BOS 18M-NA-LR20-S4
Availability
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
This product page contains information for Sweden – Balluff AB, Göteborg
Alternative products
|
Discontinued
|
Recommended alternative
|
|
|
|
|
|
BOS013EBOS 18M-NA-LR10-S4- |
BOS01R5BOS 18M-NA-LR20-S4- |
|
| Series | 18M | 18M |
|---|---|---|
| Dimension | Ø 18 x 81.5 mm | Ø 18 x 75 mm |
| Interface |
NPN normally open (NO) NPN normally closed (NC) |
NPN normally open (NO) NPN normally closed (NC) |
| Principle of operation | Photoelectric sensor | Photoelectric sensor |
| Principle of optical operation | Retroreflective sensor | Retroreflective sensor |
| Light type | Laser red light | Laser red light |
| Range | 0...16 m | 0...16 m |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin |
| Housing material | Brass, nickel-plated | Brass, nickel-plated |
| Material sensing surface | PMMA | Glass |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Approval/Conformity |
CE cULus EAC WEEE |
cULus CE UKCA WEEE |
