All cameras with Sony sensor IMX249
Beschreibung
The IMX249 sensor from Sony from the Pregius family is a monochrome CMOS image sensor with a resolution of 2.4 megapixels. It has a Global shutter in optical 1/1.2 format and a pixel size of 5.86 µm
Technische Merkmale
-
HerstellerSony
-
Name des SensorsIMX249
-
Aufbau des GerätsCMOS
-
Bildgröße1/1.2
-
Anzahl der effektiven Pixel1216 (H) x 1936 (W)
-
Pixelgröße5.86 µm
-
ADC-Auflösung / Ausgang12 bit -> 12 bit
Produkte
| Produkt | FPS* | Belichtungszeit |
Strom Verbrauch [W] |
DR [dB] | SNR [dB] |

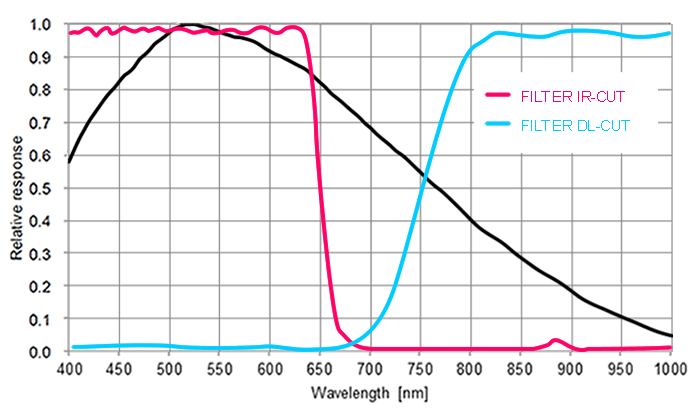

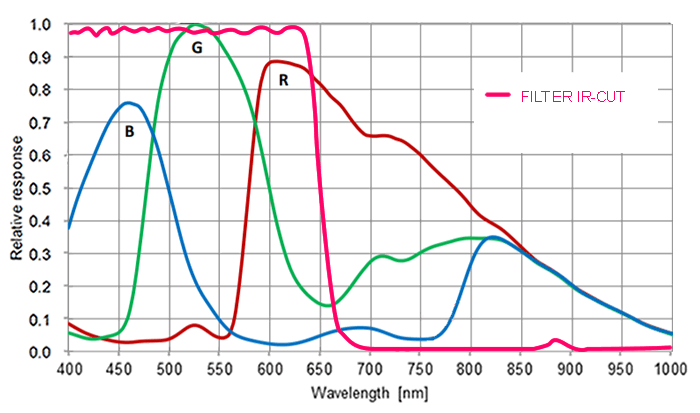

Spektrale Empfindlichkeit |
EMVA 1288 |
|---|---|---|---|---|---|---|---|
BVS CA-SF5-0024AC |
47 / 47 / 47 | 23 µs - 20 s | 2.8 | - | - |
|
- |
BVS CA-SF5-0024AG |
47 / 47 / 47 | 23 µs - 20 s | 2.8 | - | - |
|
- |
BVS CA-GX0-0024AC |
47 / 47 / 47 | 23 µs - 20 s | 3.4 | 72.9 | 45.1 |
|
|
BVS CA-GX0-0024AG |
47 / 47 / 47 | 23 µs - 20 s | 3.4 | 72.9 | 45.0 |
|
|
BVS CA-SF2-0024AC |
47 / 47 / 47 | 23 µs - 20 s | 2.8 | 72.8 | 45.1 |
|
|
BVS CA-SF2-0024AG |
47 / 47 / 47 | 23 µs - 20 s | 2.8 | 73.0 | 45.1 |
|
* Streaming / Burst-Mode / Max. Streaming abhängig vom Sensor entweder mit 2x2 Binning oder Decimation (horizontal x vertikal)
Sony Diagramm Megapixel vs. maximale Bildrate
Megapixel (MP)
Maximale Sensor-Bildrate (FPS)
