All cameras with Sony sensor IMX545
Beschreibung
The IMX545 sensor from Sony from the Pregius family is a monochrome CMOS image sensor with a resolution of 12.4 megapixels. It has a Global shutter in optical 1/1.1 format and a pixel size of 2.74 µm
Technische Merkmale
-
HerstellerSony
-
Name des SensorsIMX545
-
Aufbau des GerätsCMOS
-
Bildgröße1/1.1
-
Anzahl der effektiven Pixel3008 (H) x 4128 (W)
-
Pixelgröße2.74 µm
-
ADC-Auflösung / Ausgang12 bit -> 12 bit
Produkte
| Produkt | FPS* | Belichtungszeit |
Strom Verbrauch [W] |
DR [dB] | SNR [dB] |

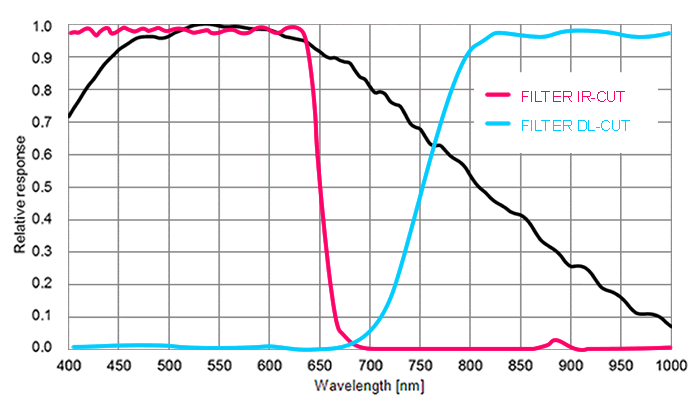

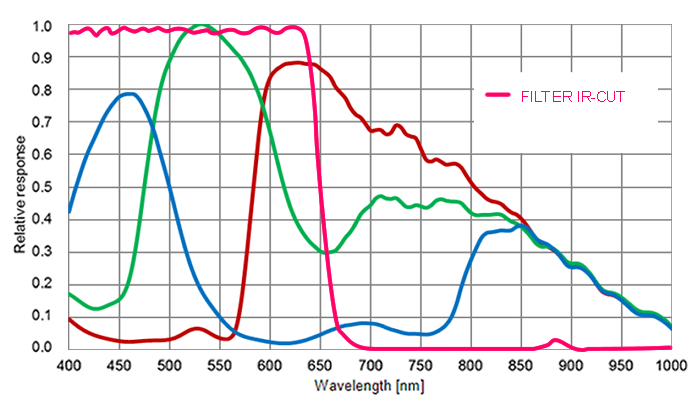

Spektrale Empfindlichkeit |
EMVA 1288 |
|---|---|---|---|---|---|---|---|
BVS CA-SF5-0124DC |
30.6 / 33.6 / 63 | 12 µs - 20 s | 2.7 | - | - |
|
- |
BVS CA-SF5-0124DG |
30.6 / 33.6 / 63 | 12 µs - 20 s | 2.7 | - | - |
|
- |
BVS CA-GV1-0124DC |
46.9 / 46.9 / 157 | 6 µs - 20 s | 4.4 | 69.6 | 39.6 |
|
|
BVS CA-GV1-0124DG |
46.9 / 46.9 / 157 | 6 µs - 20 s | 4.4 | 69.5 | 39.6 |
|
|
BVS CA-GX0-0124DC |
9.5 / 17.3 / 38.2 | 12 µs - 20 s | 3.1 | 69.9 | 39.7 |
|
|
BVS CA-GX0-0124DG |
9.5 / 17.3 / 38.2 | 12 µs - 20 s | 3.1 | 70.0 | 39.7 |
|
|
BVS CA-GX2-0124DC |
19.1 / 33.6 / 63 | 12 µs - 20 s | 5.0 | 69.6 | 39.5 |
|
|
BVS CA-GX2-0124DG |
19.1 / 33.6 / 63 | 12 µs - 20 s | 5.0 | 69.7 | 39.5 |
|
|
BVS CA-SF2-0124DC |
30.6 / 33.6 / 63 | 12 µs - 20 s | 2.7 | 70.1 | 40.3 |
|
|
BVS CA-SF2-0124DG |
30.6 / 33.6 / 63 | 12 µs - 20 s | 2.7 | 70.1 | 40.3 |
|
* Streaming / Burst-Mode / Max. Streaming abhängig vom Sensor entweder mit 2x2 Binning oder Decimation (horizontal x vertikal)
Sony Diagramm Megapixel vs. maximale Bildrate
Megapixel (MP)
Maximale Sensor-Bildrate (FPS)
