BNI00KE

BNI CIP-352-000-K015

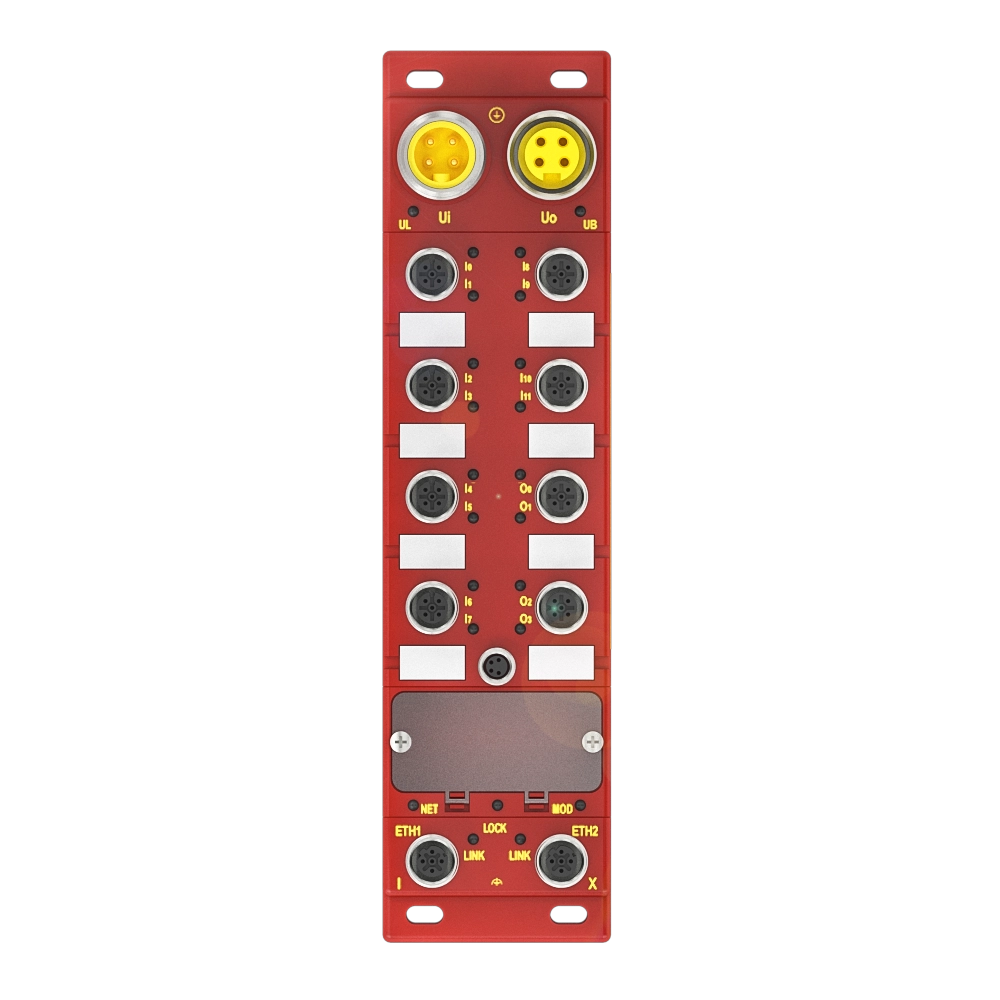

CIP Safety I/O Module

Safety category (EN ISO 13849-1)
4
SIL (IEC 61508)
3
SIL CL (EN 62061)
3
Approval/Conformity
cULus
CE
WEEE
Safety
UKCA
Digital inputs
12x PNP, Type 3
Do you have any questions about the product?

Quantity scale

Contact request
Key features
Safety category (EN ISO 13849-1)
4
SIL (IEC 61508)
3
SIL CL (EN 62061)
3
Approval/Conformity
cULus
CE
WEEE
Safety
UKCA
Digital inputs
12x PNP, Type 3
Digital outputs
2x bipolar
Interface
Ethernet/IP CIP Safety
Connection slots
8x M12x1-Female, 5-pin, A-coded

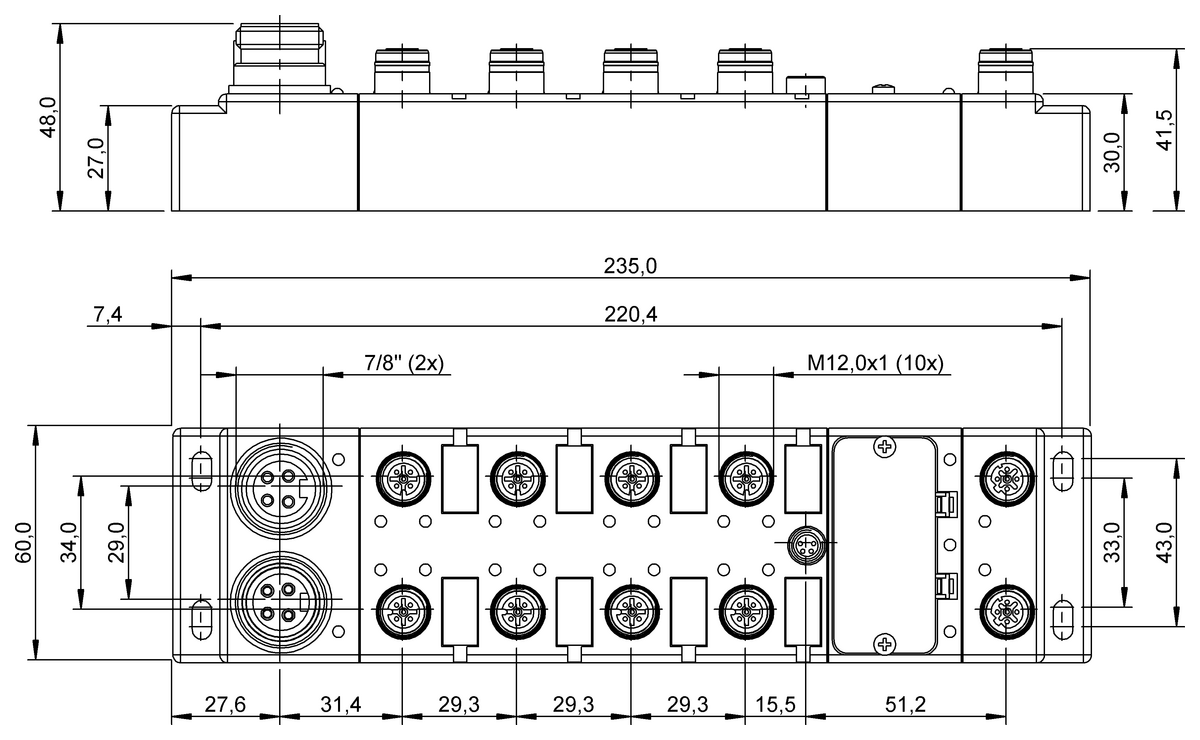

Dimension
60 x 44 x 235 mm
Ambient temperature
-25...70 °C
IP rating
IP67
Housing material
PBT
Classifications
ECLASS 10.1
27-24-26-04
ECLASS 11.0
27-24-26-04
ECLASS 12.0
27-24-26-04
ECLASS 13.0
27-24-26-04
ECLASS 14.0
27-24-26-04
ECLASS 4.1
27-25-01-01
ECLASS 5.1.4
27-24-26-04
ECLASS 6.2
27-24-26-04
ECLASS 8.1
27-24-26-04
ECLASS 9.0
27-24-26-04
ECLASS 9.1
27-24-26-04
ETIM 7.0
EC001599
ETIM 8.0
EC001599
UNSPSC 11
39121306
UNSPSC 7.0901
39121306
