BNS0012

BNS 819-FL-60-101-S80R

Mechanical single position limit switches

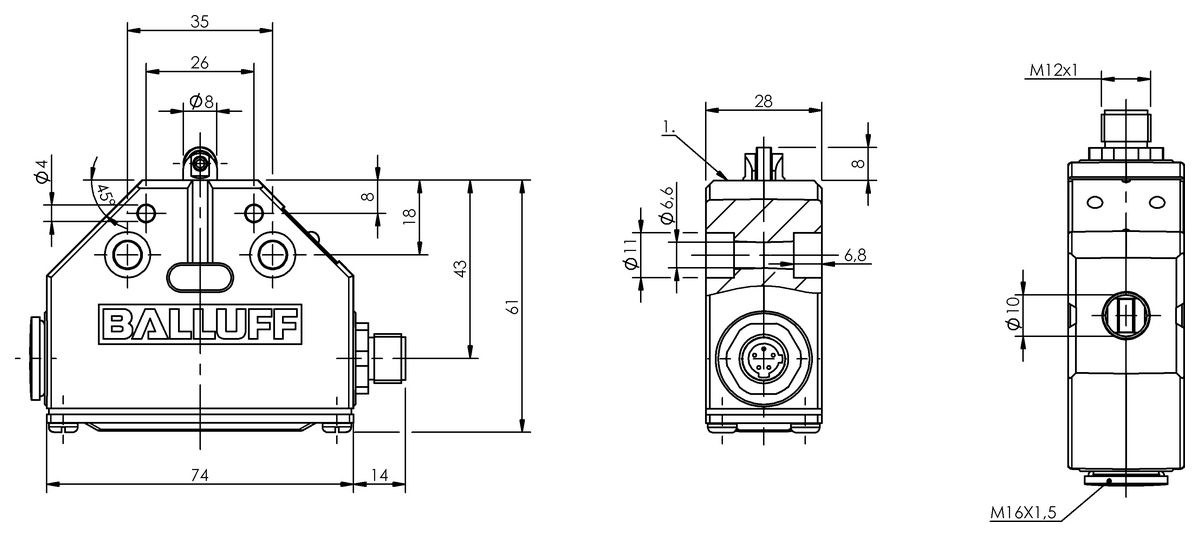

Dimension
74 x 28 x 61 mm
Housing material
Aluminium, Anodized
Number of switching positions
1x Roller bearing
Version
Snap contact
Operating principle
1. Switch position: Mechanical
Do you have any questions about the product?

Quantity scale

Contact request
Key features
Dimension
74 x 28 x 61 mm
Housing material
Aluminium, Anodized
Number of switching positions
1x Roller bearing
Version
Snap contact
Operating principle
1. Switch position: Mechanical
Continuous current
1. Switch position: 4 A
Rated operating voltage Ue
1. Switch position: 250 V AC
Installation
any
Approach direction
lateral or at right angles to mounting surface
Approach speed
1. Switch position: 120 m/min
Connection type
1. Switch position: Connector
Ambient temperature
-5...85 °C
IP rating
IP67
Approval/Conformity
CE
UKCA
CCC
WEEE
Classifications
ECLASS 10.1
27-27-06-01
ECLASS 11.0
27-27-06-01
ECLASS 12.0
27-27-06-01
ECLASS 13.0
27-27-06-01
ECLASS 14.0
27-27-06-01
ECLASS 4.1
27-27-06-06
ECLASS 5.1.4
27-27-06-01
ECLASS 6.2
27-27-06-01
ECLASS 8.1
27-27-06-01
ECLASS 9.0
27-27-06-01
ECLASS 9.1
27-27-06-01
ETIM 4.0
EC000030
ETIM 5.0
EC000030
ETIM 6.0
EC000030
ETIM 7.0
EC000030
ETIM 8.0
EC000030
UNSPSC 11
41111900
UNSPSC 7.0901
41111900
