Key features
Which attributed do you want to keep?

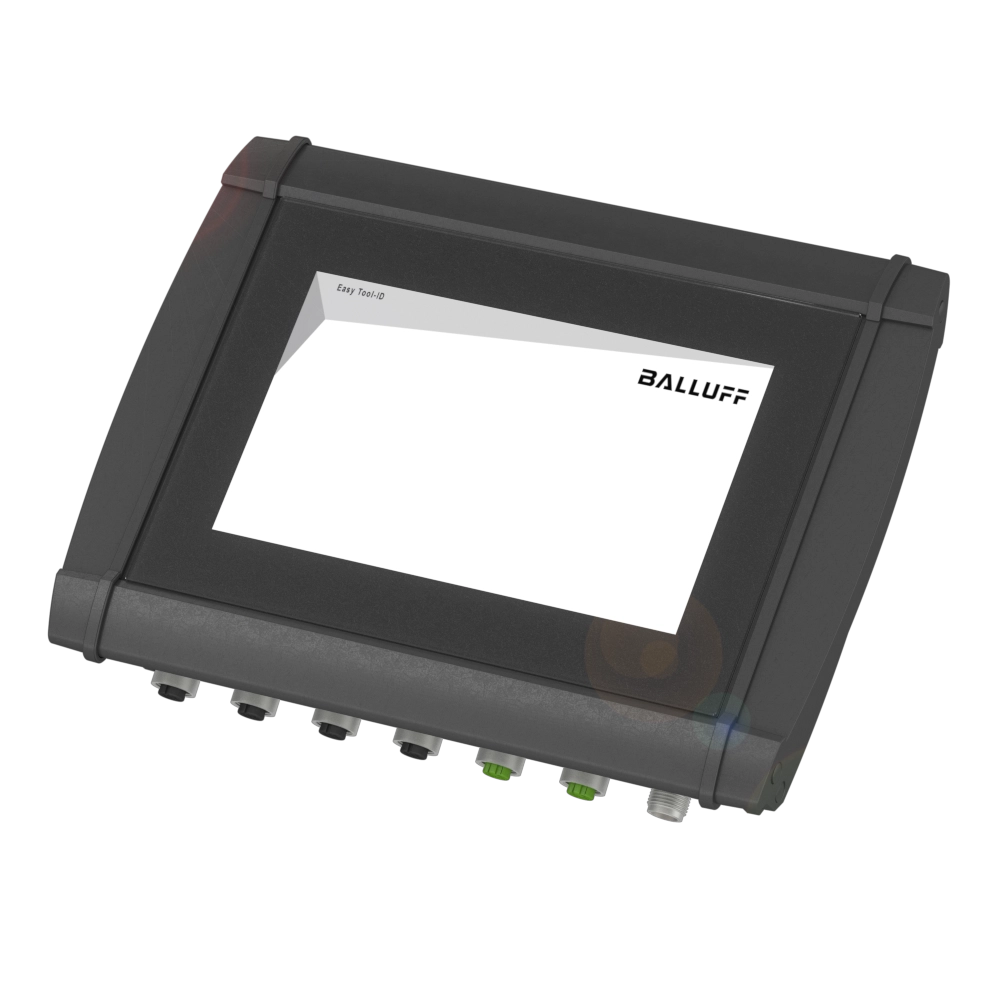

System on a module (SOM)
phyCore i.MX6 Dual Lite
Operating system
Linux
Hard drive
4 GB eMMC
Working memory
1 GB RAM
Clock frequency
2x 1.2 GHz

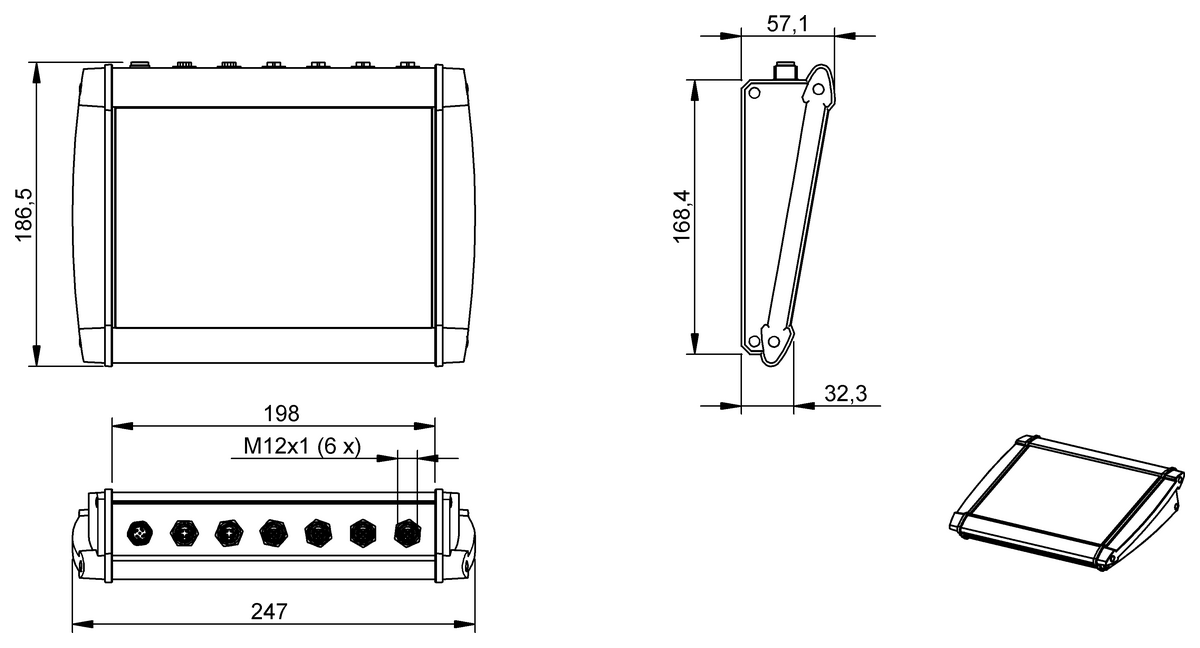

Dimension
247 x 57.1 x 186.5 mm
Connection slots
COM: M12x1-Female, 5-pin, A-coded
HID: M12x1-Female, 5-pin, A-coded
LAN 1: M12x1-Female, 4-pin, D-coded
LAN 2: M12x1-Female, 4-pin, D-coded
PWR: M12x1-Male, 5-pin, A-coded
USB1: M12x1-Female, 5-pin, A-coded
USB2: M12x1-Female, 5-pin, A-coded
HID: M12x1-Female, 5-pin, A-coded
LAN 1: M12x1-Female, 4-pin, D-coded
LAN 2: M12x1-Female, 4-pin, D-coded
PWR: M12x1-Male, 5-pin, A-coded
USB1: M12x1-Female, 5-pin, A-coded
USB2: M12x1-Female, 5-pin, A-coded
Operating voltage Ub
24 V DC ±10% LPS Class 2
Current draw max.
2 A
IP rating
IP54
Ambient temperature
0...60 °C
Display
7.0" TFT
WVGA 800x480
LED Back Light
Analog RGB (TTL)
Projective capacitive Touch (Multitouch)
WVGA 800x480
LED Back Light
Analog RGB (TTL)
Projective capacitive Touch (Multitouch)
Approval/Conformity
CE
UKCA
WEEE
cULus
UKCA
WEEE
cULus
Classifications
ETIM 8.0
EC004590
