Correct tensioning of the foil during cell assembly
BMP magnetic field position measurement systems

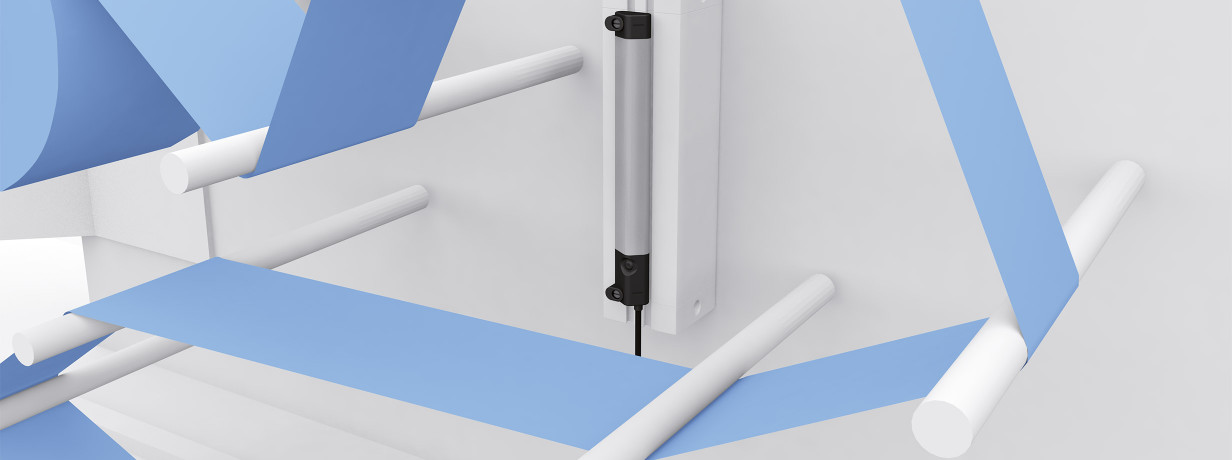

The web tension of electrode foils in roll-to-roll processes during several production steps is crucial to ensure high process reliability. Without the correct tension, web edge/guide control cannot function properly. For this purpose, our magnetic field position measuring systems reliably measure the stroke of the dancer cylinder during the up and down movement of the roll and transmit the signal to the control system. The compact design can be easily integrated and mounted on a wide range of cylinders.
Features
- Continuous monitoring of the piston position in a confined space with analog voltage and current output as well as IO-Link interface
- Ideal for Industry 4.0 – automatic size change, condition monitoring and predictive maintenance
- Measuring range: up to 256 mm
- Reliable, accurate and repeatable absolute position feedback
