BAM01CN

Name: BAM01CN
Brand: Balluff
SKU: BAM01CN
Availability: OutOfStock

BOS R-37

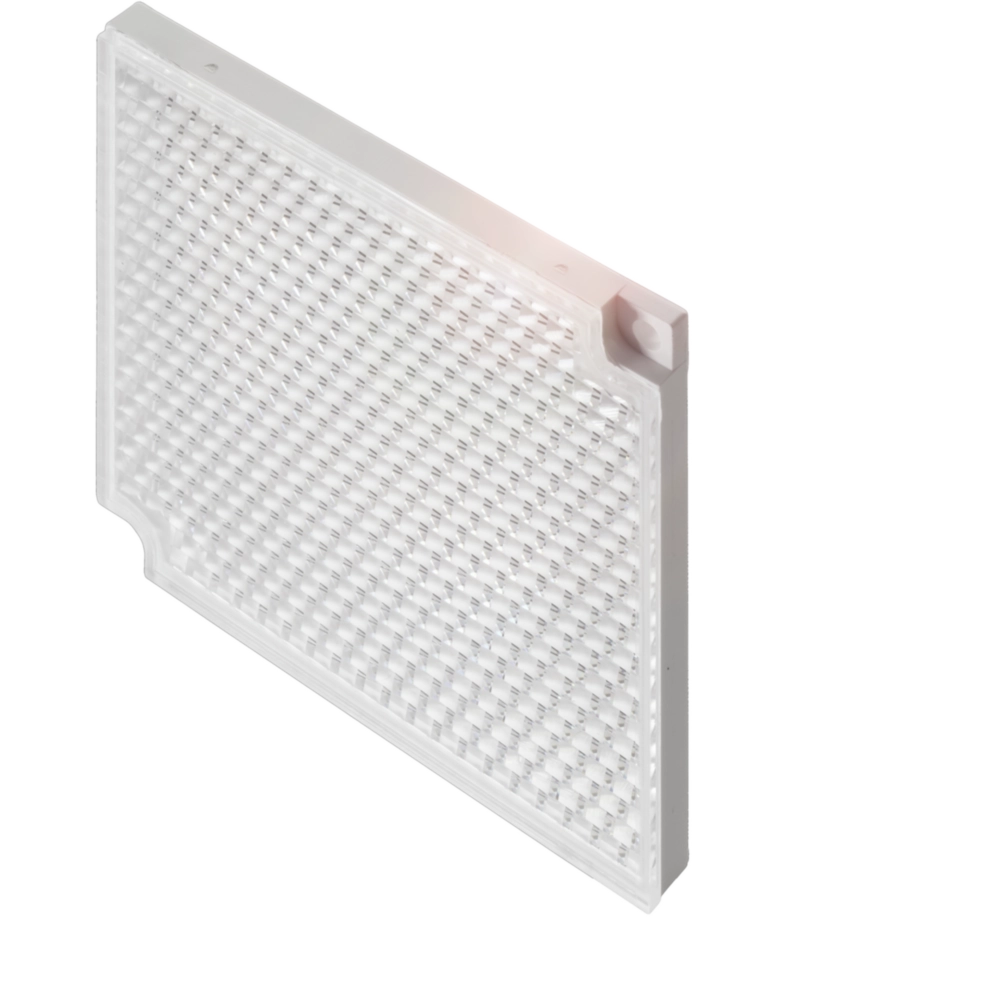

Reflectors and reflective foils

Version

Cube corner 4 mm

Use

for photoelectric retroreflective sensors

Style

Square
2 mounting holes

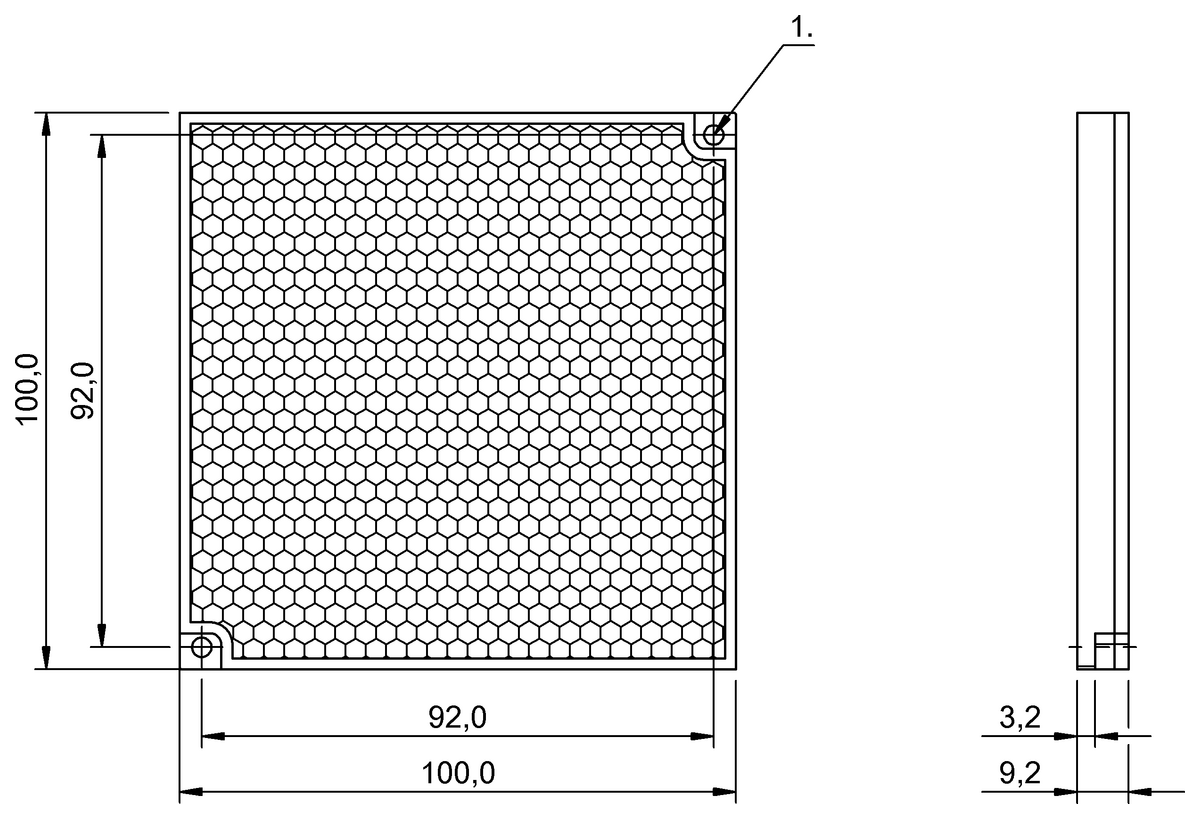

Dimension

100 x 100 x 9.2 mm

Sensing surface

92.5 cm²

Recommended successor products

Estimated Availability

How does the alternative product differ from the discontinued one?

Do you have any questions about the product? Get in touch with us.

This product page contains information for Thailand – Balluff (Thailand) Ltd., Bangkok

	Discontinued	Recommended alternative

	BAM01CN	BAM01JN
	BOS R-37	BOS R-47
	-	896,22 THB

Version	Cube corner 4 mm	Cube corner 4 mm
Use	for photoelectric retroreflective sensors	for photoelectric retroreflective sensors
Style	Square 2 mounting holes	Square 2 mounting holes
Dimension	100 x 100 x 9.2 mm	100 x 100 x 9.2 mm
Sensing surface	92.5 cm²	92.5 cm²
Ambient temperature	-20...100 °C	-20...60 °C
Material sensing surface	PC	PMMA
Light type	non-polarized light, also for polarized light	non-polarized light, also for polarized light
Mounting part	Adhesive Screw M3	Adhesive Screw M3
