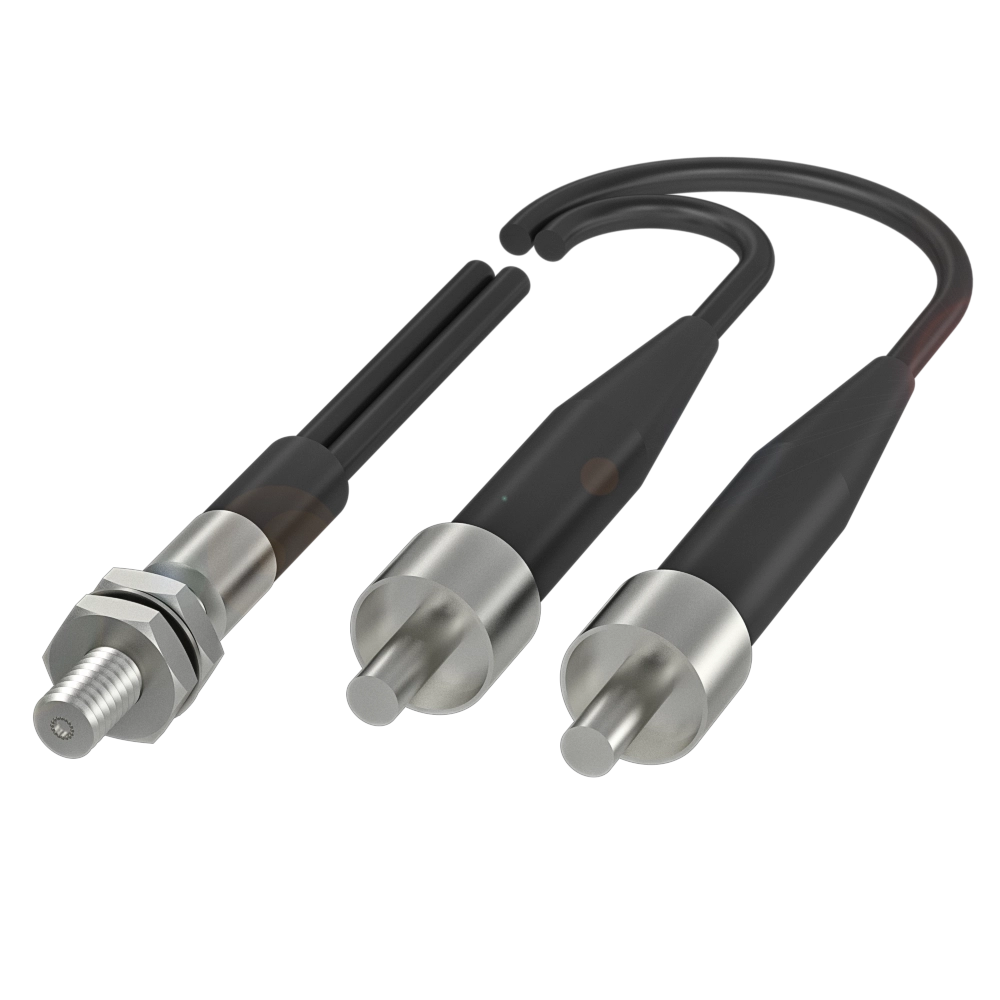

Cylindrical plastic fibers with straight and angled optics
Version

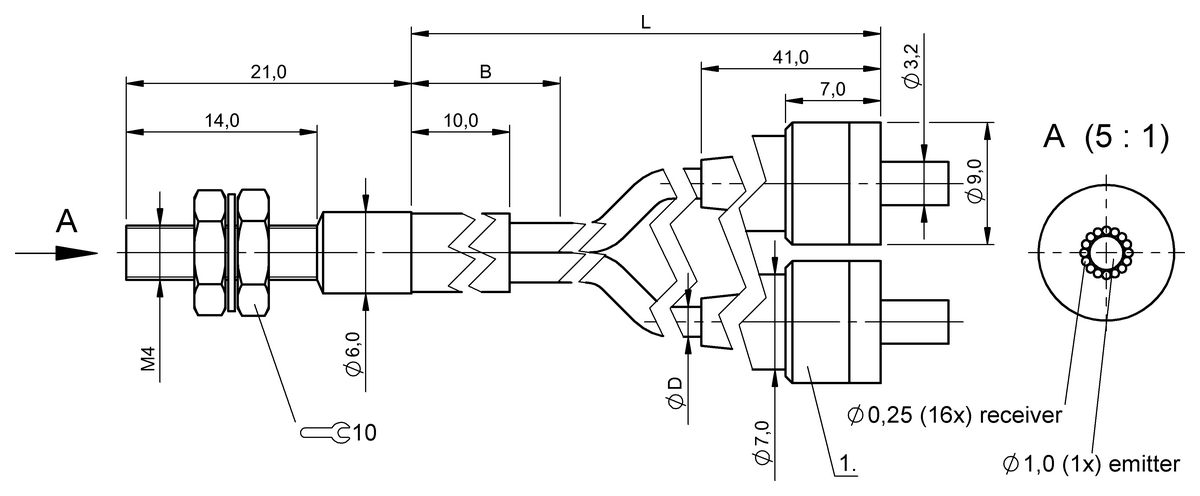

M4, coaxial optics
Use
for fiber optic base units BFB
Reference base unit
BFS 33M-GSS-..
Fiber type material
PMMA
Cable length L
2 m
Do you have any questions about the product?
Alternative products
|
|
Alternative
|
|
|
|
|
|
BFO00C9BFO D22-XB-UB-EAK-15-SA1-026.206,62 THB |
BFO0006BFO D22-XB-UB-EAK-15-023.276,00 THB |
|
| Version | M4, coaxial optics | M4, coaxial optics |
|---|---|---|
| Use | for fiber optic base units BFB | for fiber optic base units BFB |
| Reference base unit | BFS 33M-GSS-.. | BFB 75K-001-.. |
| Fiber type material | PMMA | PMMA |
| Cable length L | 2 m | 2 m |
| Material jacket | PE | PE |
| Range | 130 mm | 130 mm |
| Ambient temperature | -40...60 °C | -40...60 °C |
| Material | Brass nickel-plated | Brass nickel-plated |
| Active surface, fibers |
Ø 0.25 mm (16x) Ø 1.0 mm |
Ø 0.25 mm (16x) Ø 1.0 mm |
| Active surface, fiber arrangement | Ring around individual fiber | Ring around individual fiber |
| IP rating | IP65 | IP65 |
