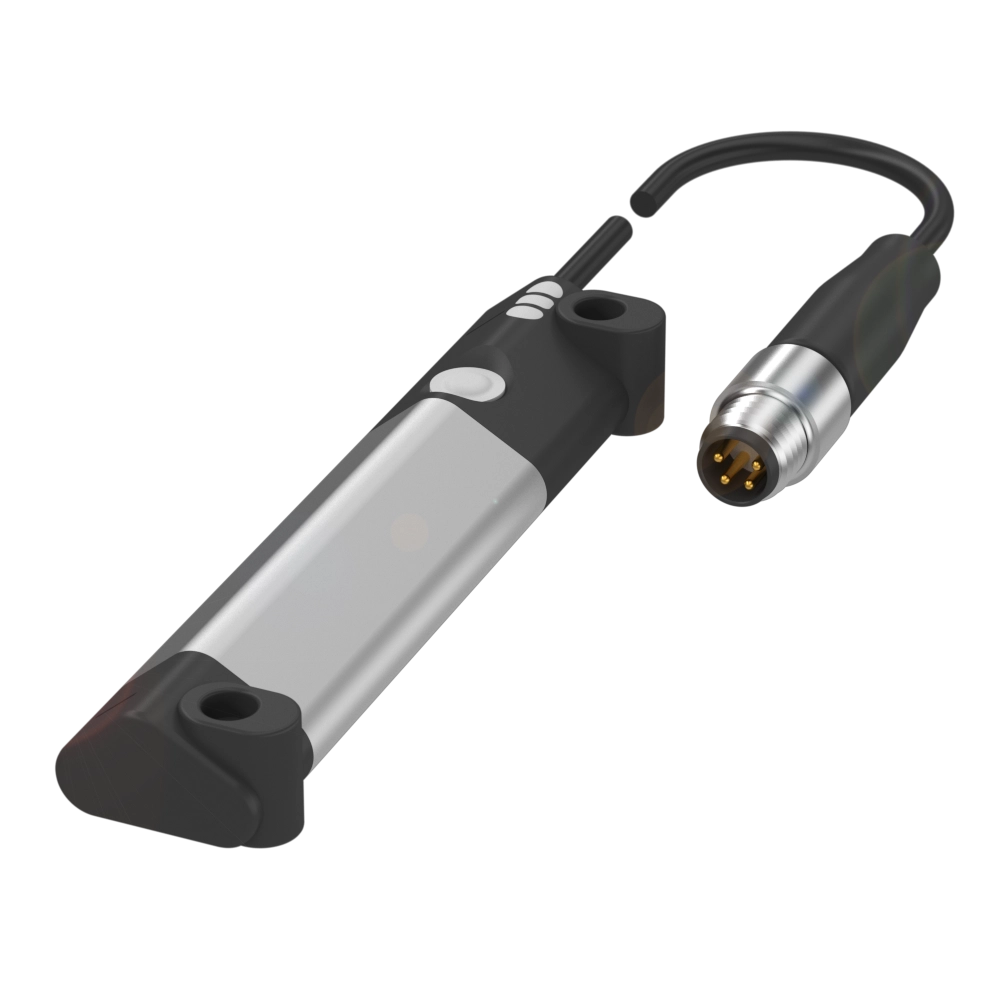

BMP0005

Magnetic field positioning systems

Typecode:

BMP 01-EL1PP21A-0064-00-P00,5-S75

Loading...
Measuring range
64 mm
Dimension
17.5 x 9.6 x 74 mm
Analog output
Analog, voltage/Analog, current selectable 0…10 V/4…20 mA
Interface
IO-Link 1.1
Resolution
≤ 1 µm (IO-Link), 12 Bit (analog)
Repeat accuracy
± 100 µm
Non-linearity typ.
±250 µm
Operating voltage Ub
15...30 VDC
Connection
Cable with connector, M8x1-Male, 4-pin, 0.5 m, PUR
Housing material
PA 12
Aluminium
Ambient temperature
-25...85 °C
IP rating per IEC 60529
IP67
Approval/Conformity
CE
UKCA
cULus
IO-Link
WEEE
Technical documentation
  • Datasheet

  • MTTF Certificate

Product documentation
Software
  • Function Block (FB)

    AOI BMP 01-xLxPP21A-xxxx-00-Pxx
  • IODD: IO-Link Device Description (IODD)

    IODD BMP 01 EL1PP21A-XXXX-00-…
Information material
  • Product profile

    Magnetfeld-Positionsmesssystem BMP (German)
    BMP Magnetic field positioning (English)
    Système de mesure de position magnétique BMP (French)
    Sistema di misurazione posizione a campo magnetico BMP (Italian)
    Sistema de medición de posición de campo magnético BMP (Spanish)
    磁気式ポジショニングシステム BMP (Japanese)
    BMP磁场位置测量系统 (Chinese)
    BMP 자기 위치 측정 시스템 (Korean)
    BMP Magnet position sensors (US-English)
