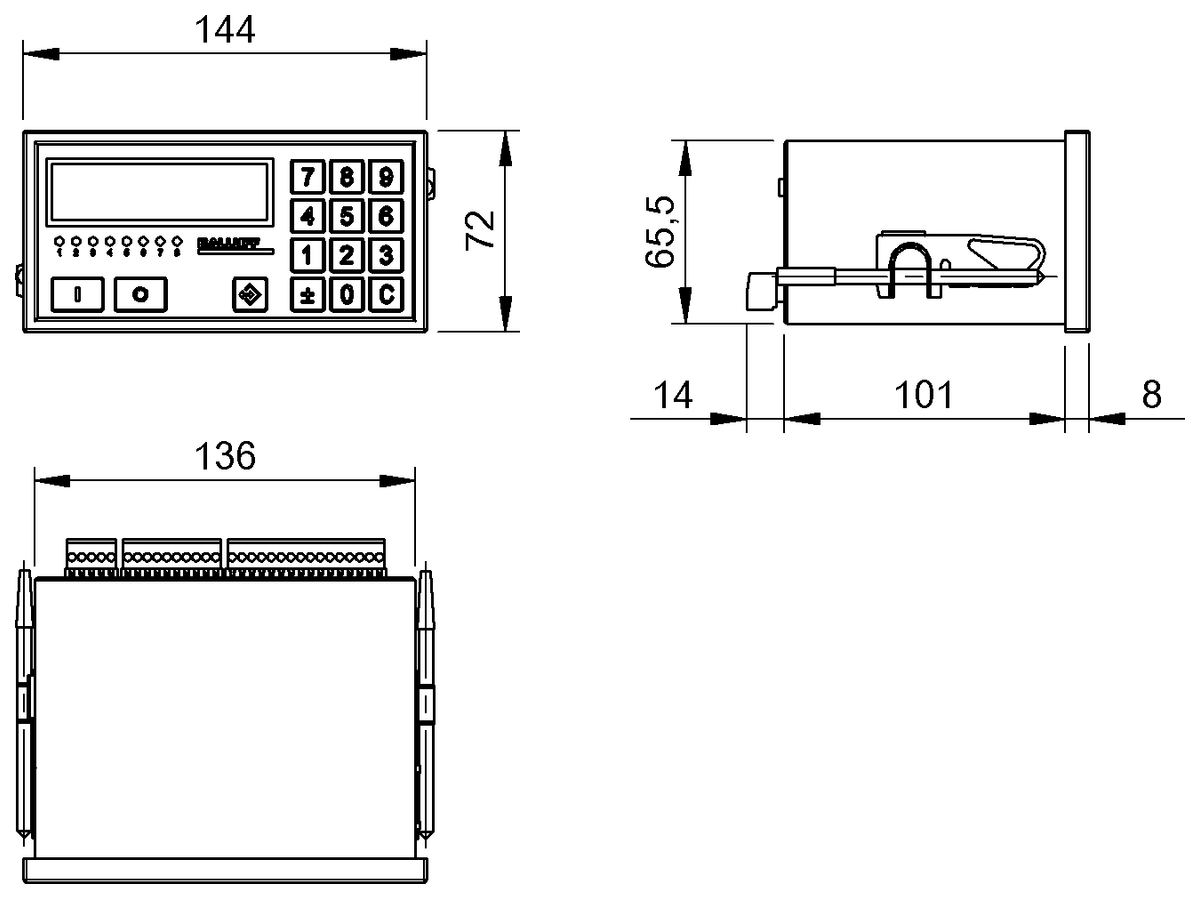

Similar Illustration

Canceled

BAE006F

Name: BAE006F
Brand: Balluff
SKU: BAE006F
Availability: OutOfStock

BDD-CC 08-1-SSD

Displays

Function

Rotary/Linear
Rotary cam switch

Inputs, number

Resolution

8...32 bits

Outputs, number

Encoder supply

5 V/24 V, max 300 mA

Do you have any questions about the product? Get in touch with us.

This product page contains information for Northern Ireland

Quantity scale

Contact request

Key features

Function

Rotary/Linear
Rotary cam switch

Inputs, number

Resolution

8...32 bits

Outputs, number

Encoder supply

5 V/24 V, max 300 mA

Ambient temperature

0...50 °C

IP rating (front housing)

IP64

Approval/Conformity

CE
WEEE

Panel cut-out

68 x 138 mm

Classifications

ECLASS 10.1

27-33-01-90

ECLASS 11.0

27-33-01-91

ECLASS 12.0

27-33-02-01

ECLASS 13.0

27-33-02-01

ECLASS 14.0

27-33-02-01

ECLASS 4.1

27-37-12-00

ECLASS 5.1.4

27-33-91-90

ECLASS 6.2

27-37-12-20

ECLASS 8.1

27-33-91-90

ECLASS 9.0

27-33-01-90

ECLASS 9.1

27-33-01-90

ETIM 7.0

EC011541

ETIM 8.0

EC011541

ETIM 9.0

EC011541

UNSPSC 11

39100000

UNSPSC 7.0901

39100000

Energy consumption labeling

EPREL - European Product Database for Energy Labeling
