Similar Illustration
Only CAD model download is supported

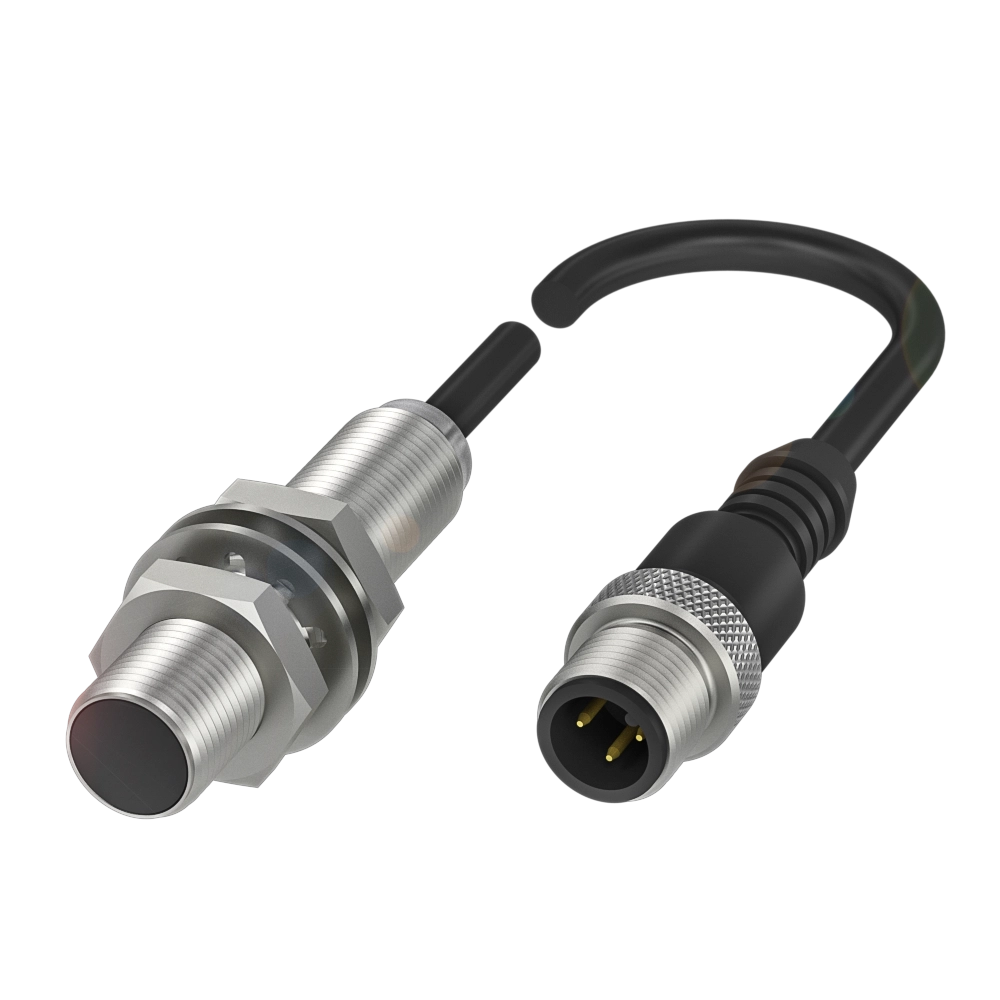

Inductive proximity switches and proximity sensors
Dimension
Ø 12 x 53 mm
Style Housing
M12x1
Installation
for flush mounting
Range
2 mm
Switching output
PNP normally open (NO)
Product Features
Cable, 2.00 m, PVC
Cable, 3.00 m, PVC
Cable, 3.00 m, TPU
Cable, 5.00 m, PVC
Cable with connector, M12x1, 0.80 m, TPU
Do you have any questions about the product?
Get in touch with us.
This product page contains information for Northern Ireland
Alternative products
|
|
Alternative
|
|
|
|
|
|

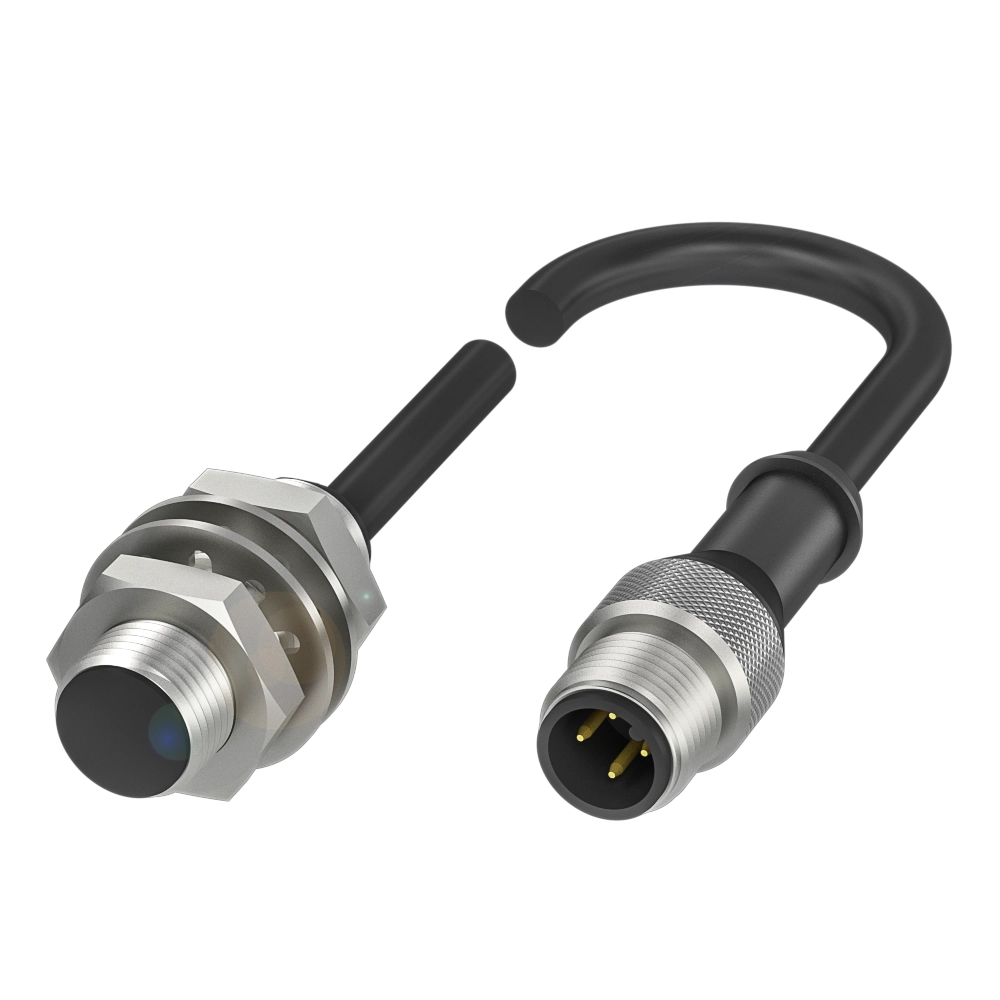

| BES M12MI-PSC20B-BP00,8-GS04 | BES 516-325-E4-C-S4-00,5 | |
|
35.34 GBP
List price
|
70.79 GBP
List price
|
|
| Dimension | Ø 12 x 53 mm | Ø 12 x 33 mm |
|---|---|---|
| Style Housing | M12x1 | M12x1 |
| Installation | for flush mounting | for flush mounting |
| Range | 2 mm | 2 mm |
| Switching output | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 3500 Hz | 3500 Hz |
| Housing material | Brass, Nickel-free coated | Brass, Nickel-free coated |
| Material sensing surface | PBT | PBT |
| Connection | Cable with connector, M12x1, 0.80 m, TPU | Cable with connector, M12x1-Male, 4-pin, 0.50 m, TPU |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C |
| IP rating | IP68 | IP68, according to BWN Pr 20 |
| Approval/Conformity |
cULus CE UKCA WEEE |
CE cULus WEEE |
Only CAD model download is supported
