Similar Illustration
Only CAD model download is supported
Inductive proximity switches and proximity sensors

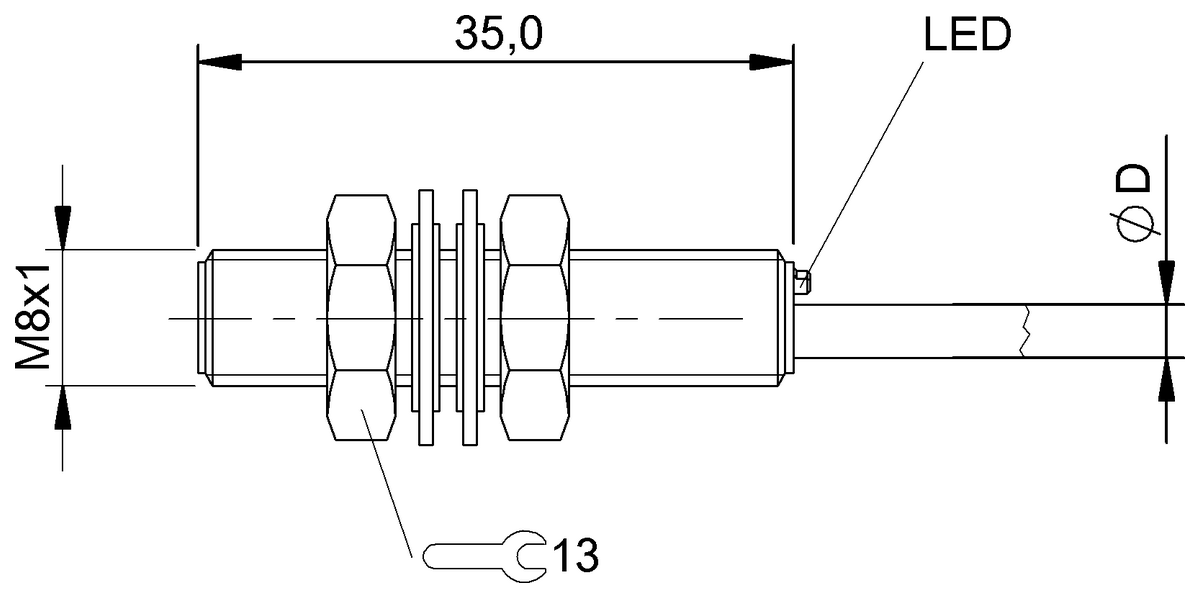

Dimension
Ø 8 x 35 mm
Style Housing
M8x1
Installation
for flush mounting
Range
1.5 mm
Switching output
PNP normally open (NO)
Do you have any questions about the product?
Get in touch with us.
This product page contains information for Northern Ireland
Alternative products
|
|
Alternative
|
Further alternative
|
|
|
|
|
|
|
| BES 516-324-E3-C-PU-05 | BES 516-300-S289-BO-D-PU-05 | BES 516-324-E3-C-05 | |
|
79.26 GBP
List price
|
192.12 GBP
List price
|
79.26 GBP
List price
|
|
| Dimension | Ø 8 x 35 mm | Ø 8 x 34 mm | Ø 8 x 35 mm |
|---|---|---|---|
| Style Housing | M8x1 | M8x1 | M8x1 |
| Installation | for flush mounting | for flush mounting | for flush mounting |
| Range | 1.5 mm | 1.5 mm | 1.5 mm |
| Switching output | PNP normally open (NO) | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 3000 Hz | 4000 Hz | 5000 Hz |
| Housing material | Stainless steel | Stainless steel | Stainless steel |
| Material sensing surface | PBT | Ceramic | PBT |
| Connection | Cable, 5.00 m, PUR | Cable, 5.00 m, PUR | Cable, 5.00 m, PVC |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...80 °C | -40...85 °C |
| IP rating | IP68 | - | IP68 |
| Approval/Conformity |
CE cULus WEEE |
CE UKCA cULus WEEE |
cULus CE WEEE |
| Pressure rating max. | - | 100 bar | - |
| IP rating | - | IP67 | - |
