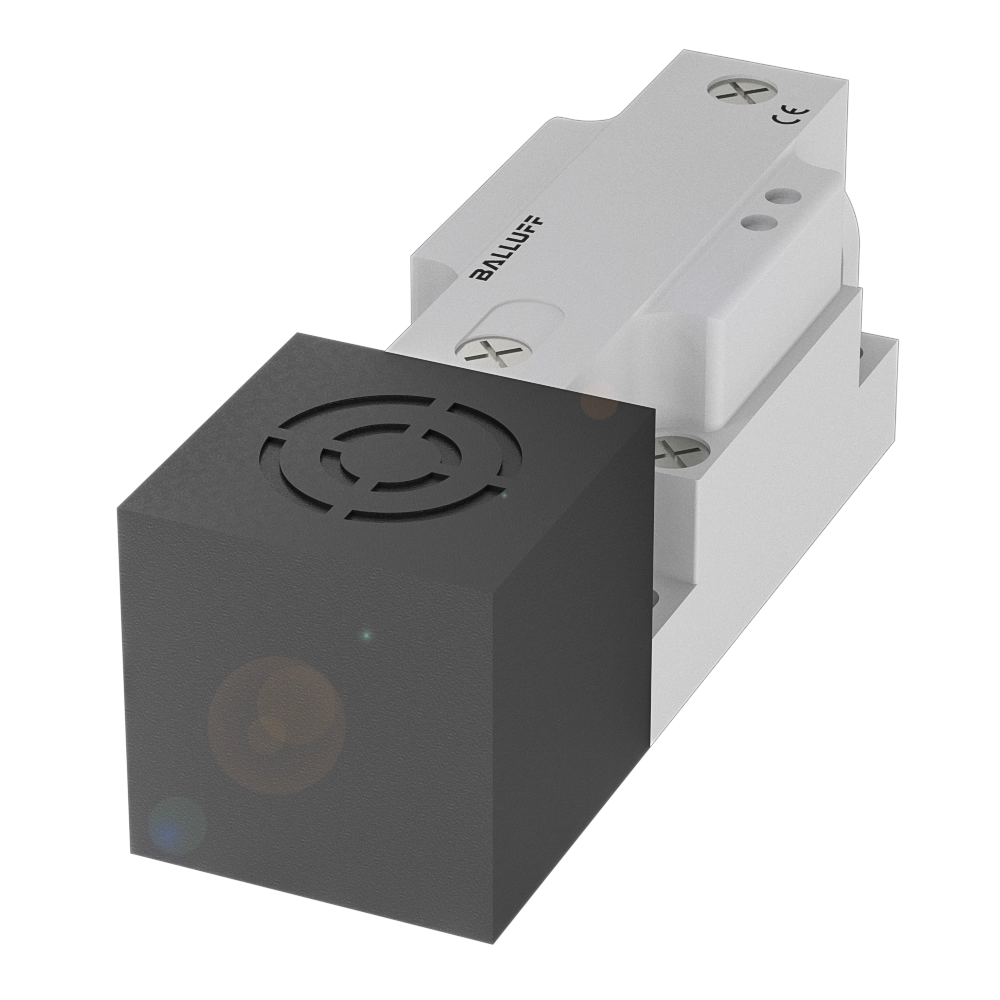

Inductive proximity switches and proximity sensors

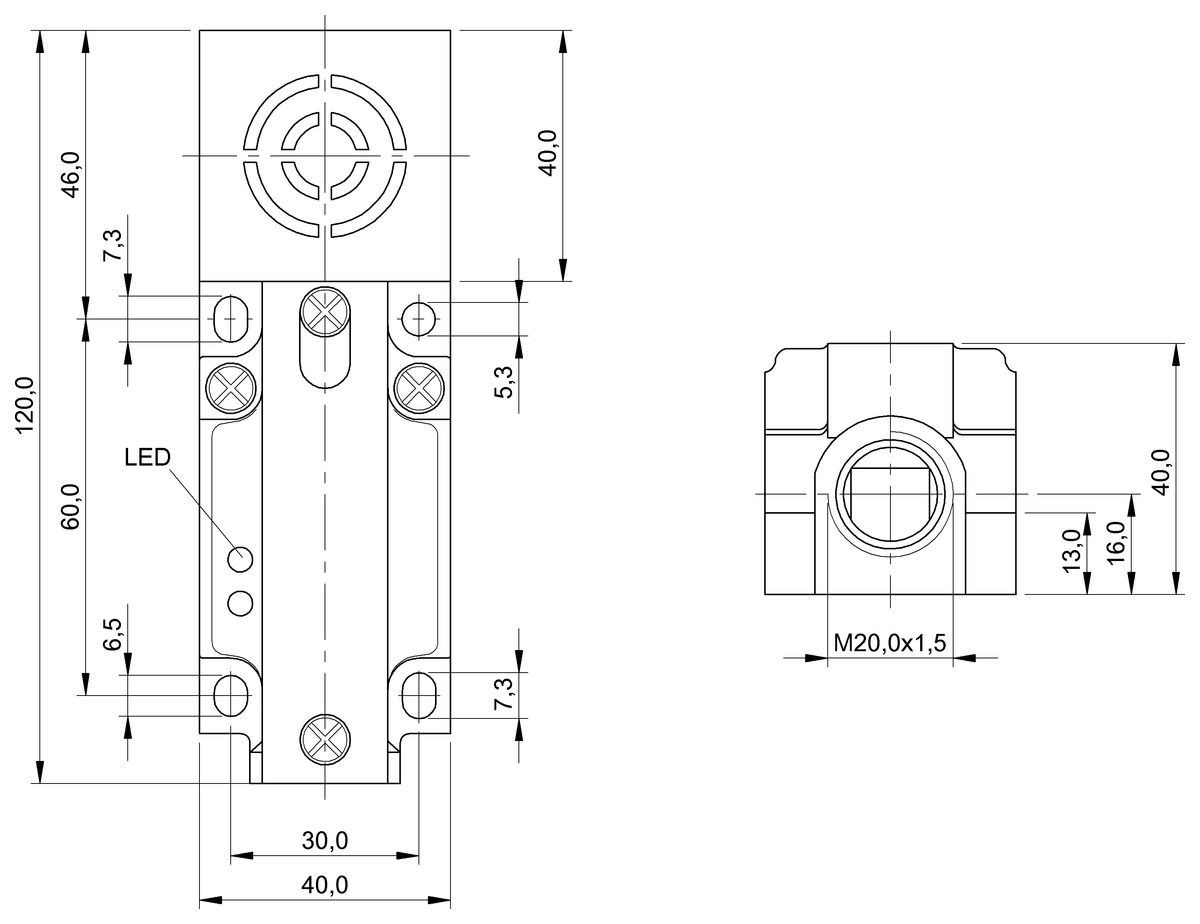

Dimension
120 x 40 x 40 mm
Style Housing
40x40
Installation
non-flush
Range
30 mm
Switching output
NO/NC
Recommended alternative
How does the alternative product differ from the discontinued one?
Do you have any questions about the product?
Get in touch with us.
This product page contains information for Northern Ireland
Alternative products
|
Discontinued
|
Recommended alternative
|
Further alternative
|
Further alternative
|
|
|
|
|
|
|
|
| BES 517-223-M5-E | BES Q40KU-UPU40F-KM20 | BES 517-132-M5-H | BES 517-134-M5-H | |
|
-
List price
|
102.50 GBP
List price
|
98.10 GBP
List price
|
98.10 GBP
List price
|
|
| Dimension | 120 x 40 x 40 mm | 40 x 40 x 118 mm | 120 x 40 x 40 mm | 120 x 40 x 40 mm |
|---|---|---|---|---|
| Style Housing | 40x40 | 40x40 | 40x40 | 40x40 |
| Installation | non-flush | for flush mounting | non-flush | non-flush |
| Range | 30 mm | - | 30 mm | 30 mm |
| Switching output | NO/NC | NO/NC | PNP normally open/normally closed (NO/NC) | NPN normally open/normally closed (NO/NC) |
| Switching frequency | 100 Hz | - | 60 Hz | 60 Hz |
| Housing material | PBT | Plastic | PBT | PBT |
| Material sensing surface | PBT | PA 6.6 | PBT | PBT |
| Connection | Screw terminals | Screw terminals | Screw terminals | Screw terminals |
| Operating voltage Ub | 20...250 VDC/20...250 VAC | 20...275 VDC/20...253 VAC | 10...55 VDC | 10...55 VDC |
| Ambient temperature | -25...70 °C | -25...85 °C | -25...70 °C | -25...70 °C |
| IP rating | IP67 | IP67 | IP67 | IP67 |
| Approval/Conformity |
CE cULus EAC WEEE |
CE UKCA cULus WEEE CCC |
CE UKCA WEEE |
CE UKCA WEEE |
