Cylindrical version for magnetic-field-resistant applications

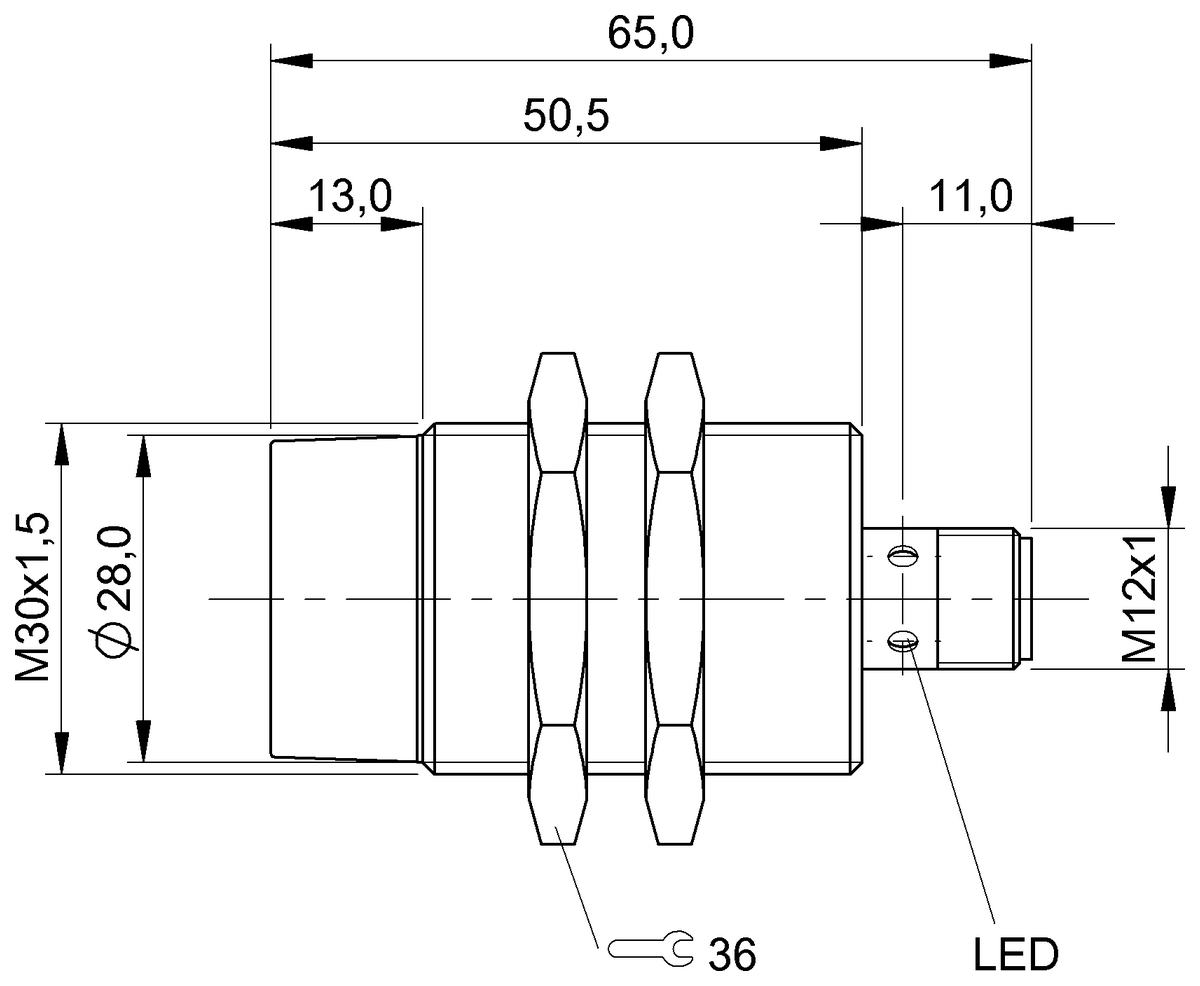

Dimension
Ø 30 x 65 mm
Style Housing
M30x1.5
Installation
non-flush
Range
20 mm
Switching output
PNP normally open (NO)
Do you have any questions about the product?
Get in touch with us.
This product page contains information for Northern Ireland
Alternative products
|
|
Alternative
|
|
|
|
|
|
| BES M30ML-PSC20E-S04G-W | BES M30ML-PSC20E-S04G-W01 | |
|
130.57 GBP
List price
|
118.90 GBP
List price
|
|
| Dimension | Ø 30 x 65 mm | Ø 30 x 65 mm |
|---|---|---|
| Style Housing | M30x1.5 | M30x1.5 |
| Installation | non-flush | non-flush |
| Range | 20 mm | 20 mm |
| Switching output | PNP normally open (NO) | PNP normally open (NO) |
| Switching frequency | 1000 Hz | 1000 Hz |
| Housing material | Brass, PTFE coated | Brass, PTFE coated |
| Material sensing surface | LCP/PTFE | ceramic coated |
| Connection | Connector, M12x1-Male, 4-pin | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC | 10...30 VDC |
| Ambient temperature | -25...70 °C | -25...70 °C |
| Magnetic field immune | yes | yes |
| IP rating | IP67 | IP67 |
| Approval/Conformity |
cULus CE UKCA WEEE |
cULus CE WEEE |
| Additional features |
Factor 1 Weld immune |
Factor 1 Weld immune |
